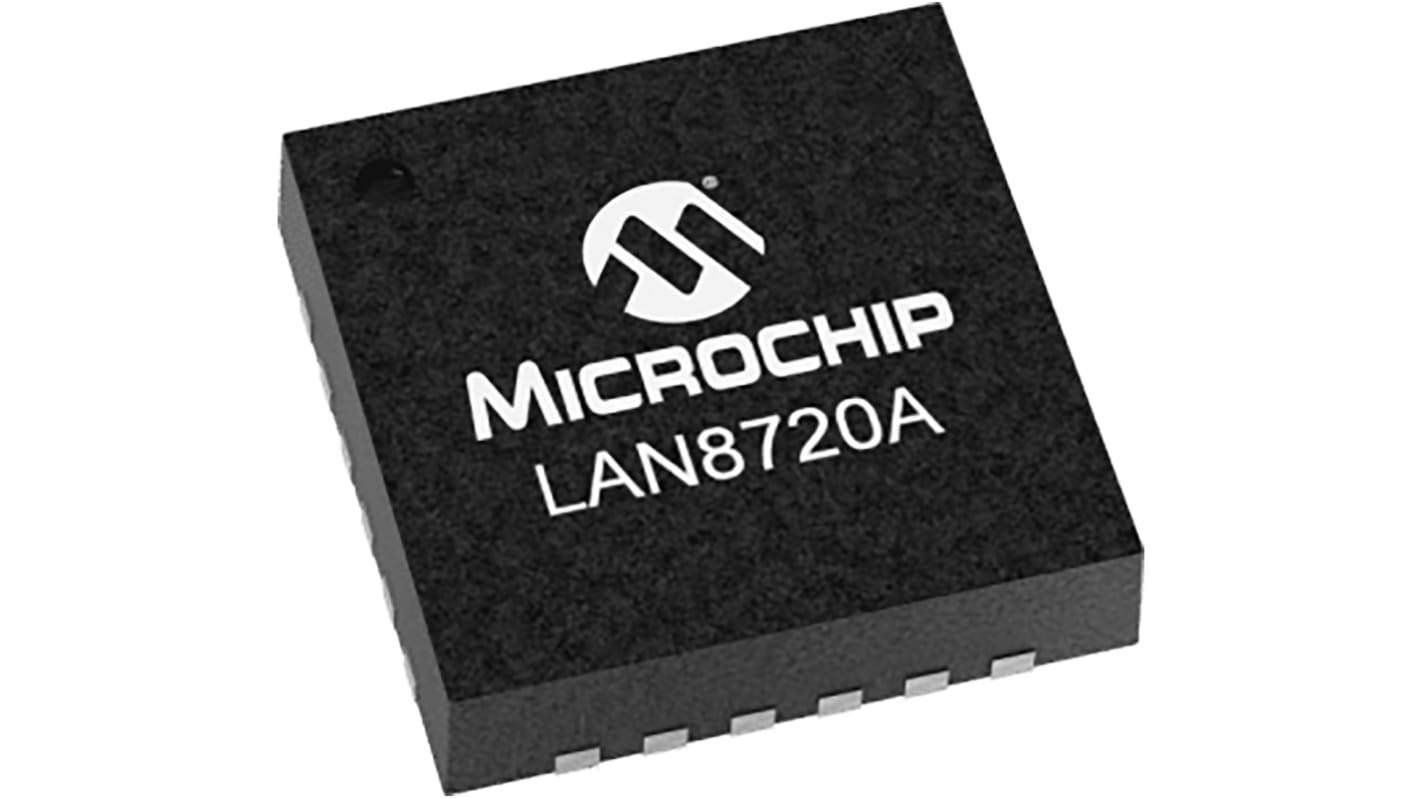

Microchip LAN8720A-CP, Ethernet Transceiver, 100Mbps, 3.3 V, 24-Pin QFN

View all Ethernet Interface Ics

Subtotal (1 tray of 490 units)*

£307.23

(exc. VAT)

£368.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,470 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
490 +£0.627£307.23

*price indicative

RS Stock No.:
177-3552
Mfr. Part No.:
LAN8720A-CP
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

IC Type

Transceiver IC

Number of Transceivers

1

Data Rate

100Mbps

Standard Supported

100BASE-TX, 10BASE-T, IEEE 802.3, IEEE 802.3u, ISO 802-3

Mounting Type

Surface Mount

Package Type

QFN

Pin Count

24

Typical Operating Supply Voltage

3.3 V

Dimensions

4.1 x 4.1 x 0.95mm

Minimum Operating Temperature

0 °C

Maximum Operating Temperature

+85 °C

COO (Country of Origin):
TW

Microchip Technology Ethernet Transceiver


The Microchip Technology Ethernet transceiver is a 100Mbit/s data rate, 3.3V supply with 24 pins and QFN package device. This Ethernet transceiver has high performance, small footprint, low power 10BASE-T/100BASE-TX, specifically designed for the present consumer electronics, industrial and enterprise applications. It is the industry's smallest footprint solution.

Features and Benefits


• Extremely low energy detect standby mode
• Flexible I/O voltage range from 3.6V to 1.6V
• Incorporates flexPWR® technology
• Industrial and extended commercial temperature range options available
• Industry leading power consumption
• Integrated 1.2V linear regulator
• LAN8720A: 4x4mm 24 pin QFN and VQFN package (RMII only)
• Low-Cost 25MHz crystal for MII/RMII
• Up to 40% reduction from existing microchip solutions

Applications


• Digital video recorders (DVRs)
• High definition TV (HDTVs)
• Personal video recorders (PVRs)
• Set top boxes (STBs)

Certifications

• CE certified
• Reach certified
