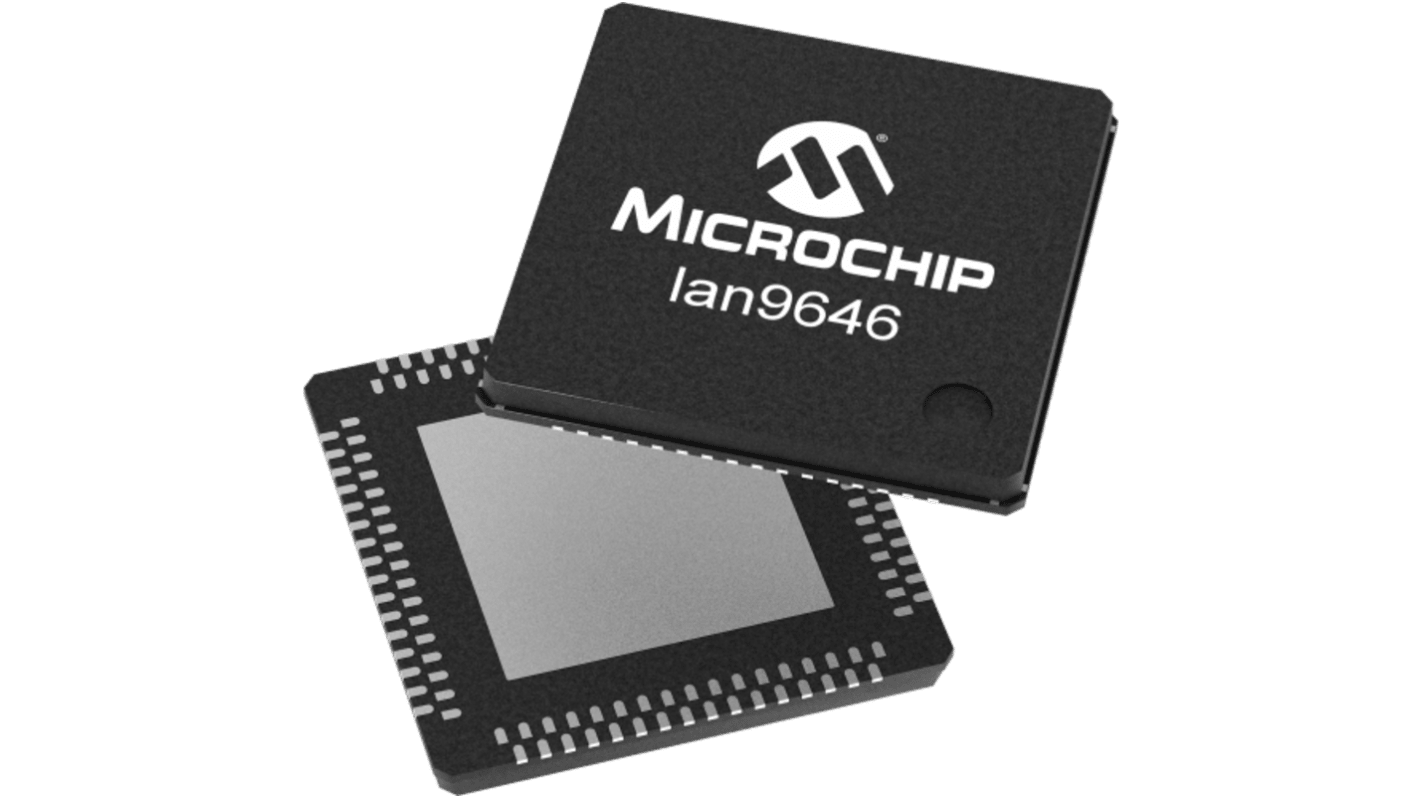

Microchip, 132-Pin DVQFN, Ethernet Transceiver, 1.2 V 100 Mbps RMII, SGMII, MII, RGMII 1.2V LAN9646T-I/MXX, Full

View all Ethernet Interface Ics

Subtotal (1 reel of 2500 units)*

£21,342.50

(exc. VAT)

£25,610.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£8.537£21,342.50

*price indicative

RS Stock No.:
332-886
Mfr. Part No.:
LAN9646T-I/MXX
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Ethernet Transceiver

Maximum Data Rate

100Mbps

Communication Mode

Full Duplex/Half Duplex

Standard Supported

IEEE

Interface Type

RMII, SGMII, MII, RGMII

Package Type

DVQFN

Pin Count

132

Maximum Supply Voltage

1.2V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Minimum Supply Voltage

1.2V

Standards/Approvals

RoHS

Supply Current

680mA

Automotive Standard

No

COO (Country of Origin):
TW
The Microchip 6 port Gigabit Ethernet switch features one port with a 10/100/1000 Ethernet MAC and SGMII interface, along with another port supporting a configurable RGMII/MII/RMII interface. It includes IEEE 802.1X access control support and four ports with integrated 10/100/1000BASE T PHY transceivers. Designed with a non blocking wire speed Ethernet switching fabric, it offers full featured forwarding and filtering control, including ACL filtering, along with complete VLAN and QoS support.

VLAN ID on per port or VLAN basis

IEEE-802.3x full duplex flow control and half duplex back pressure collision control

IEEE-802.1X access control

IGMP v1/v2/v3 snooping for multicast packet filtering
