TE Connectivity 1-1546412 Series Female RJ45 Connector, PCB Mount, Cat5 Straight 1 Port
- RS Stock No.:
- 788-4502
- Mfr. Part No.:
- 1-1546412-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£138.85
(exc. VAT)
£166.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 07 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £138.85 |
| 15 - 49 | £132.74 |
| 50 + | £129.27 |
*price indicative
- RS Stock No.:
- 788-4502
- Mfr. Part No.:
- 1-1546412-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| Ethernet Connector Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Number of Ports | 1 | |
| Mounting Type | PCB Mount | |
| Orientation | Straight | |
| Length | 33mm | |
| Width | 38.10mm | |
| Depth | 23.90mm | |
| Series | 1-1546412 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
Ethernet Connector Type RJ45 Connector | ||
LAN Category Cat5 | ||
Number of Ports 1 | ||
Mounting Type PCB Mount | ||
Orientation Straight | ||
Length 33mm | ||
Width 38.10mm | ||
Depth 23.90mm | ||
Series 1-1546412 | ||
- COO (Country of Origin):
- MX
TE Connectivity Industrial Ethernet Circular Sealed RJ45 Variant 3 Standard PCB Receptacles
Industrial Ethernet circular sealed RJ45 Variant 3 standard PCB receptacles that enable a cable lead to be soldered to an internal Ethernet connection. These industrial Ethernet RJ45 Variant 3 PCB receptacles have an ABS shell and an outer threaded connection that contributes towards an IP67 rating and vibration resistance. These RJ45 Variant 3 PCB receptacles are compatible with standard commercial RJ45 connectors, category 5e cable and intermateable with unshielded products. All models are highly reliable and excellent quality.
Features & Benefits
Stock number 706-0204 is a receptacle with PC board
Stock number 788-4498 is a receptacle with PCB and a 12 in 10 Base-T cable
Stock number 788-4492 is a receptacle with PCB and a 12 in 568A cable

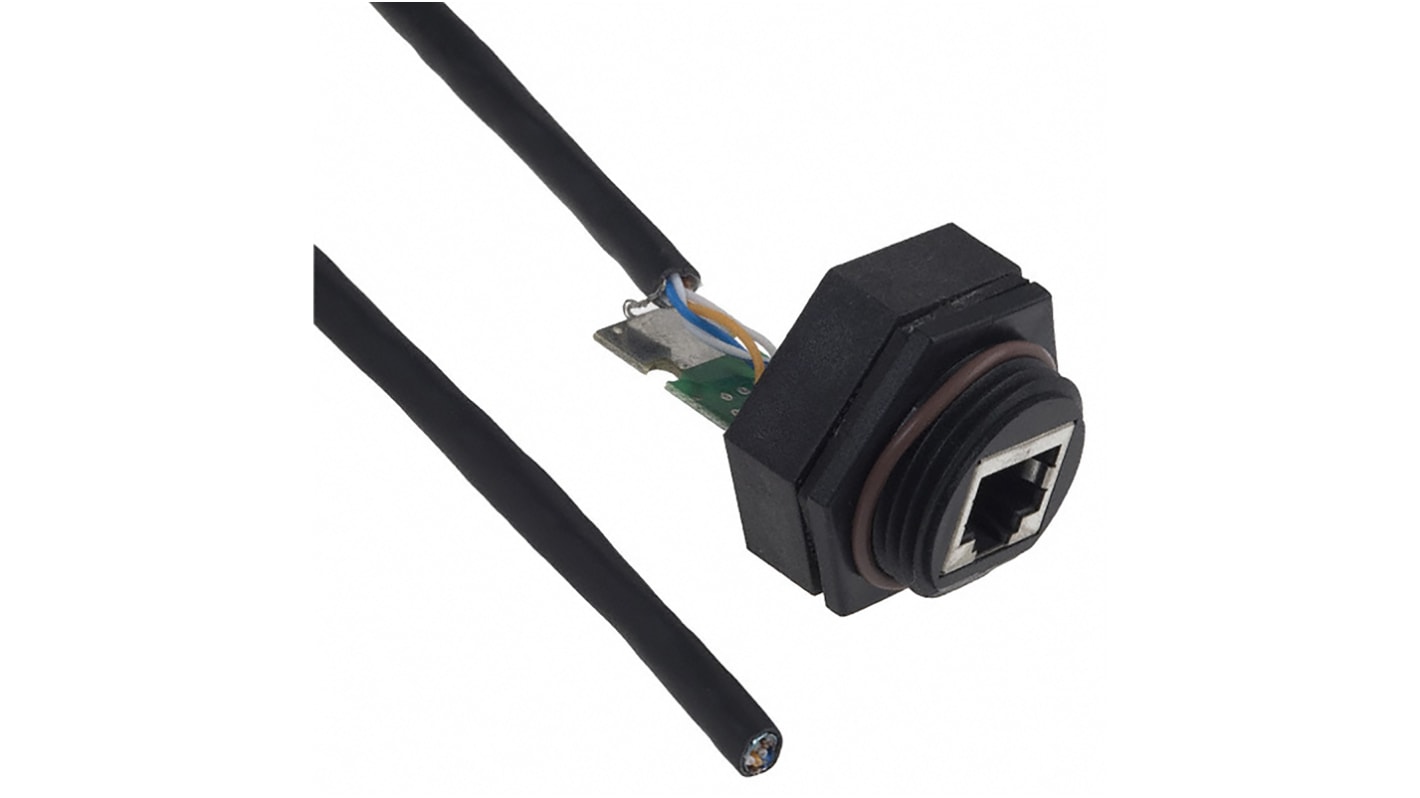

Stock number 788-4502 is a receptacle with PCB and a 12 in 568B cable
For suitable plug connectors see stock number 706-0210
Standards
Compliant to IEC 61076-3-106 – Variant 3 sealed
