Schneider Electric New Unica Series RJ45 Socket Female, Flush, Cat5 UTP Shield Rectangular 1 Port 8 Way
- RS Stock No.:
- 276-2157
- Mfr. Part No.:
- NU341118
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£12.57
(exc. VAT)
£15.08
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 4 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £12.57 |
*price indicative
- RS Stock No.:
- 276-2157
- Mfr. Part No.:
- NU341118
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Socket | |
| LAN Category | Cat5 | |
| Mount Type | Flush | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | RJ45 Socket | |
| Shield Type | UTP | |
| Orientation | Rectangular | |
| IP Rating | IP20 | |
| LED | No | |
| Minimum Operating Temperature | -25°C | |
| Termination Type | Click | |
| Maximum Operating Temperature | 55°C | |
| Length | 45mm | |
| Width | 45 mm | |
| Series | New Unica | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Depth | 40.5mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Socket | ||
LAN Category Cat5 | ||
Mount Type Flush | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type RJ45 Socket | ||
Shield Type UTP | ||
Orientation Rectangular | ||
IP Rating IP20 | ||
LED No | ||
Minimum Operating Temperature -25°C | ||
Termination Type Click | ||
Maximum Operating Temperature 55°C | ||
Length 45mm | ||
Width 45 mm | ||
Series New Unica | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Depth 40.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- ES

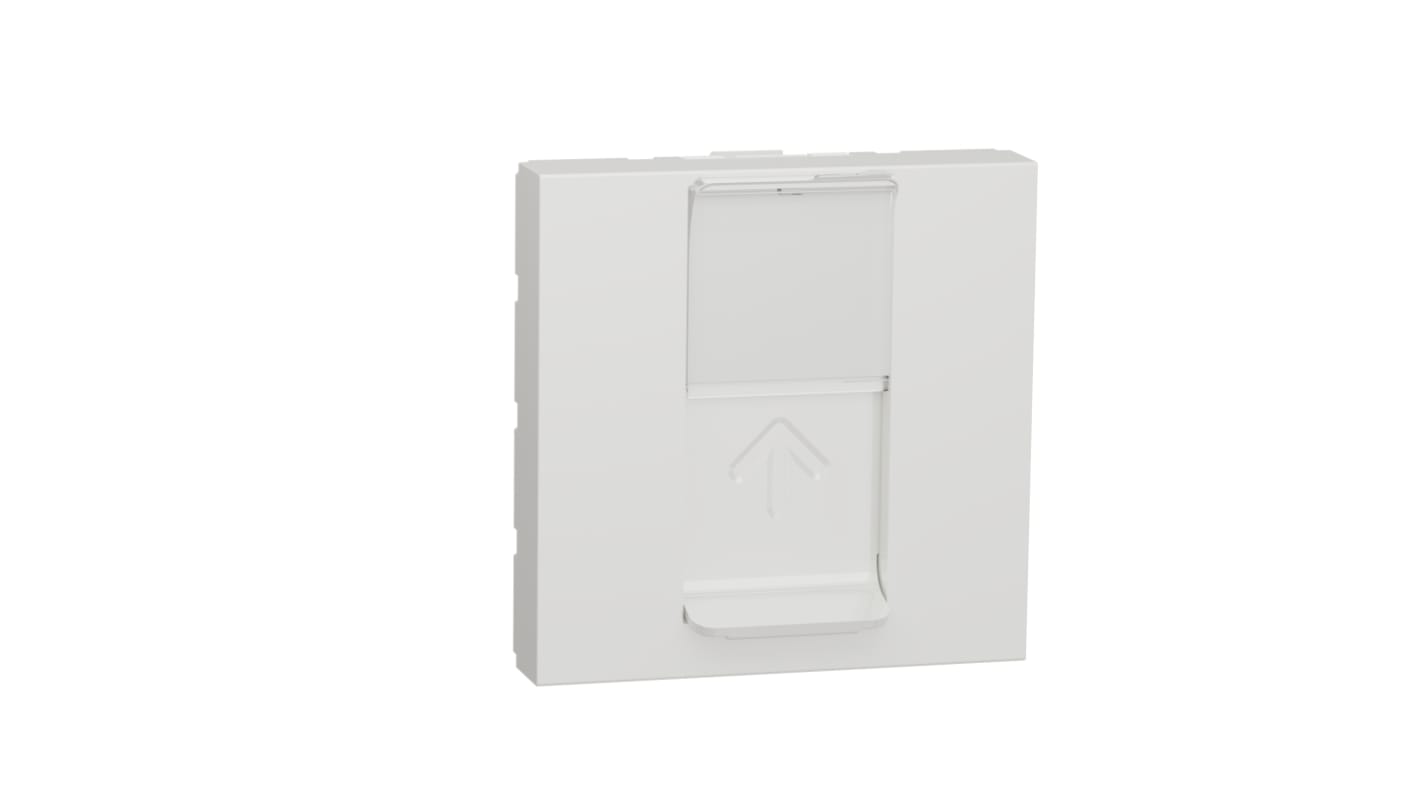

The Schneider Electric Data Socket features a mechanism designed for RJ45 Cat5E connectors, utilizing a straight configuration. With a modern and clean white color, it is a two module device with one socket. The footprint type is Infraplus, and it utilizes the S One connector type. The organization of wires follows the unshielded twisted pair configuration. The socket is equipped with a click mechanism and features a shutter for protection. It is designed for flush mounting, and the installation is facilitated through a clip in fixing mode.
Mercury free
RoHS compliant
Toxic heavy metal free
IK01 degree of protection
IP20 degree of protection
