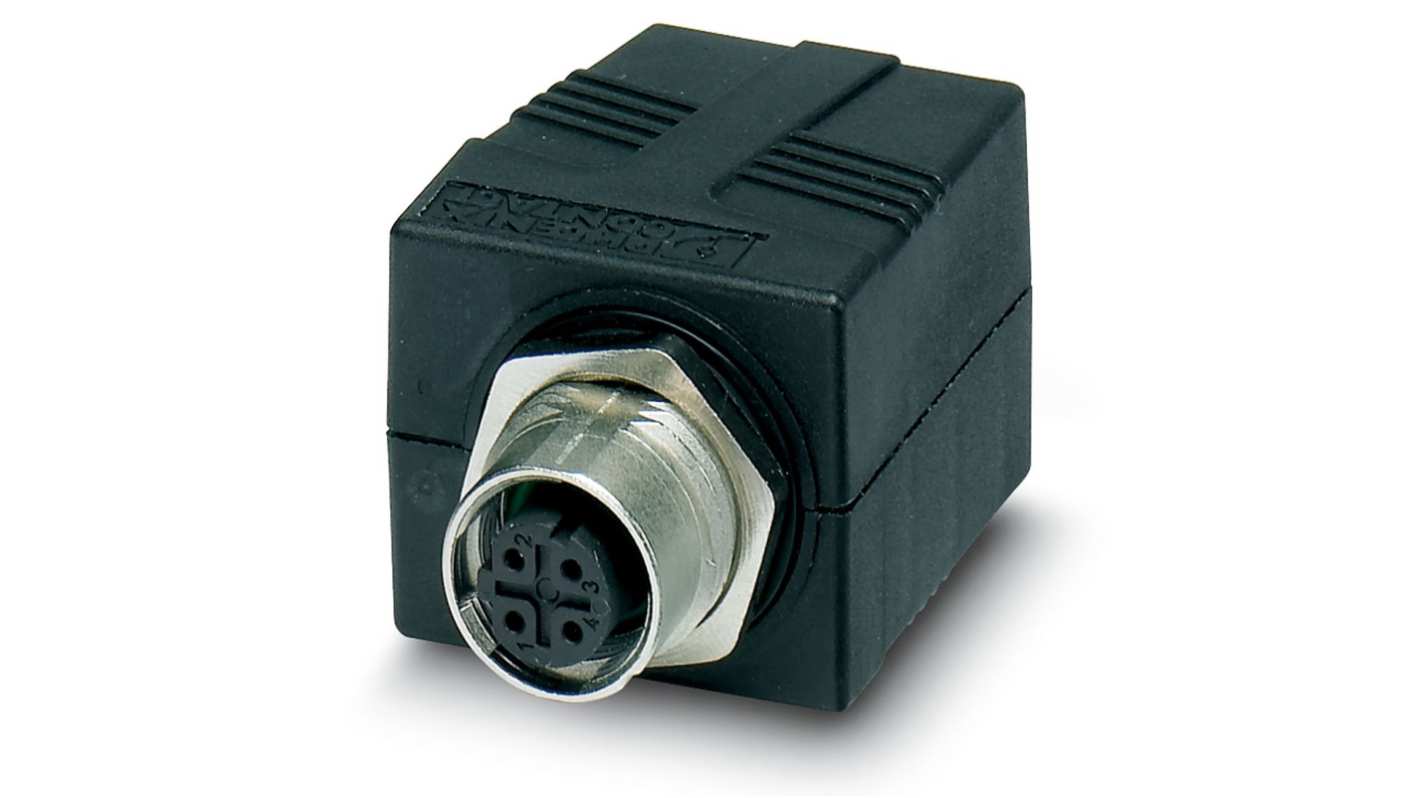

Phoenix Contact SACC-MSX-8QO Series Ethernet Connector Female, Rear, Cat5 Straight 4 Port 4 Way
- RS Stock No.:
- 248-2290
- Distrelec Article No.:
- 300-21-277
- Mfr. Part No.:
- 1414398
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£41.20
(exc. VAT)
£49.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 27 unit(s) ready to ship
- Plus 7 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £41.20 |
*price indicative
- RS Stock No.:
- 248-2290
- Distrelec Article No.:
- 300-21-277
- Mfr. Part No.:
- 1414398
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Ethernet Connector Type | RJ45 | |
| Product Type | Ethernet Connector | |
| LAN Category | Cat5 | |
| Number of Ports | 4 | |
| Mount Type | Rear | |
| Number of Ways | 4 | |
| Connector Gender | Female | |
| Connector Type | RJ45 | |
| Orientation | Straight | |
| Magnetic | No | |
| IP Rating | IP67, IP65 | |
| LED | No | |
| Minimum Operating Temperature | -25°C | |
| Light Pipes | No | |
| Termination Type | Plug-In | |
| Maximum Operating Temperature | 85°C | |
| Depth | 28.6mm | |
| Hazardous Area Certification | NO | |
| Width | 24.4mm | |
| Series | SACC-MSX-8QO | |
| Length | 49.9mm | |
| Standards/Approvals | UL, RoHS, REACH, EAC | |
| Contact Material | Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Ethernet Connector Type RJ45 | ||
Product Type Ethernet Connector | ||
LAN Category Cat5 | ||
Number of Ports 4 | ||
Mount Type Rear | ||
Number of Ways 4 | ||
Connector Gender Female | ||
Connector Type RJ45 | ||
Orientation Straight | ||
Magnetic No | ||
IP Rating IP67, IP65 | ||
LED No | ||
Minimum Operating Temperature -25°C | ||
Light Pipes No | ||
Termination Type Plug-In | ||
Maximum Operating Temperature 85°C | ||
Depth 28.6mm | ||
Hazardous Area Certification NO | ||
Width 24.4mm | ||
Series SACC-MSX-8QO | ||
Length 49.9mm | ||
Standards/Approvals UL, RoHS, REACH, EAC | ||
Contact Material Copper Alloy | ||
The Phoenix Contact control cabinet feed-through has M12 thread, straight cable outlet and copper alloy contact material.
Number of positions 4
Nominal voltage UN 48 V
Nominal current IN 0.5 A
Transmission speed 100 Mbps
Rated current 1.75 A
Rated voltage (III/3) 72 V (DC)
Insertion/withdrawal cycles ≥ 100
