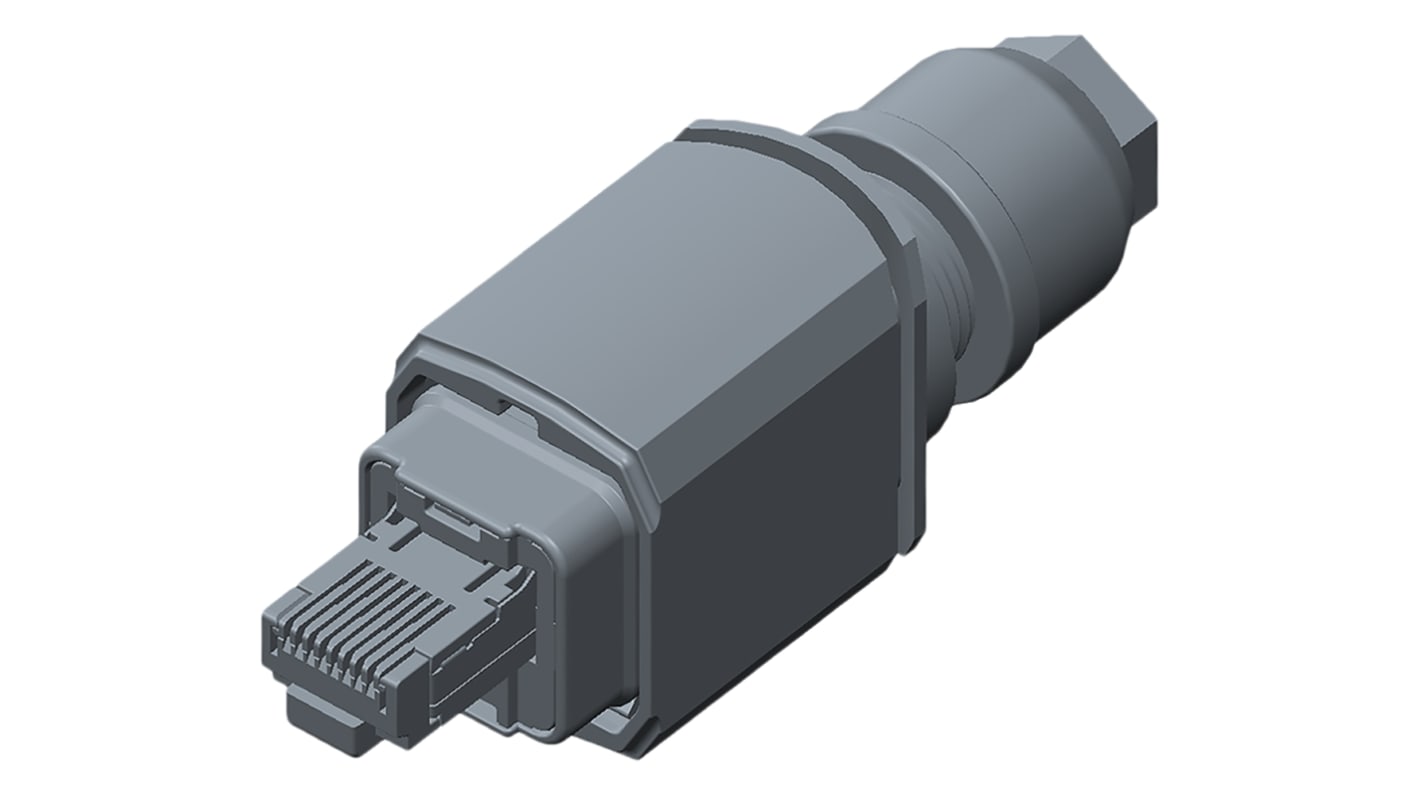

TE Connectivity 2120864 Series RJ45 Connector Male, Cable, Cat5e Shielded Straight 1 Port 8 Way

View all Ethernet Connectors

Subtotal (1 box of 48 units)*

£1,764.00

(exc. VAT)

£2,116.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 48 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
48 +£36.75£1,764.00

*price indicative

RS Stock No.:
164-6546
Mfr. Part No.:
2120864-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Ethernet Connector Type

RJ45

Product Type

RJ45 Connector

LAN Category

Cat5e

Mount Type

Cable

Number of Ports

1

Number of Ways

8

Connector Type

Plug

Connector Gender

Male

Shield Type

Shielded

Orientation

Straight

IP Rating

IP20

LED

No

Termination Type

IDC

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Depth

77.74mm

Width

28.9mm

Length

22.8mm

Standards/Approvals

No

Hazardous Area Certification

NO

Series

2120864

Contact Material

Copper Alloy

Contact Plating

Gold over Nickel

COO (Country of Origin):
PL

TE Connectivity Industrial RJ45 Push-Pull Variant 14 Metal Shell RJ45 Plug Connectors


Industrial RJ45 push-pull Variant 14 RJ45 plug connectors with a metal shell, an IEC standardised interface and an RJ45 4/8 position plug. These industrial RJ45 connectors have an IP rating of IP65/IP67 and can withstand harsh environments such as shock, vibration and temperature. The nickel plated zinc diecast shell also has good chemical, oil and spark resistance. The high IP rating makes these metal RJ45 connectors ideal for a reliable and safe connection. The robust termination technology of these industrial RJ45 connectors does not require any special tooling resulting in time savings and flexible field installation. The push-pull mechanism provides a secure sealed connection that can terminate all common cable diameters

Features and Benefits


• Robust, durable design for reliability and cost savings

• Metal shell with chemical, oil and spark resistance

• IP65/IP67 rating for use in harsh environments

• Quick and simple to connect and disconnect, no special tool required

• Push pull mechanism for secure, sealed interconnection

Product Application Sspecification


These industrial RJ45 Variant 14 plug connectors are compliant to IEC 61076-3-117 and are ideal for use in the automation production industry. Other applications include welding machines, motors and motor controls, machinery and robotics.
