Amphenol Socapex RJFTV Series Male RJ45 Connector, Cable Mount, Cat5e
- RS Stock No.:
- 695-0295
- Mfr. Part No.:
- RJFTV6MN
- Brand:
- Amphenol Socapex
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£65.61
(exc. VAT)
£78.73
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £65.61 |
| 5 - 9 | £61.02 |
| 10 + | £56.42 |
- RS Stock No.:
- 695-0295
- Mfr. Part No.:
- RJFTV6MN
- Brand:
- Amphenol Socapex
Technical Reference
Legislation and Compliance
Product Details

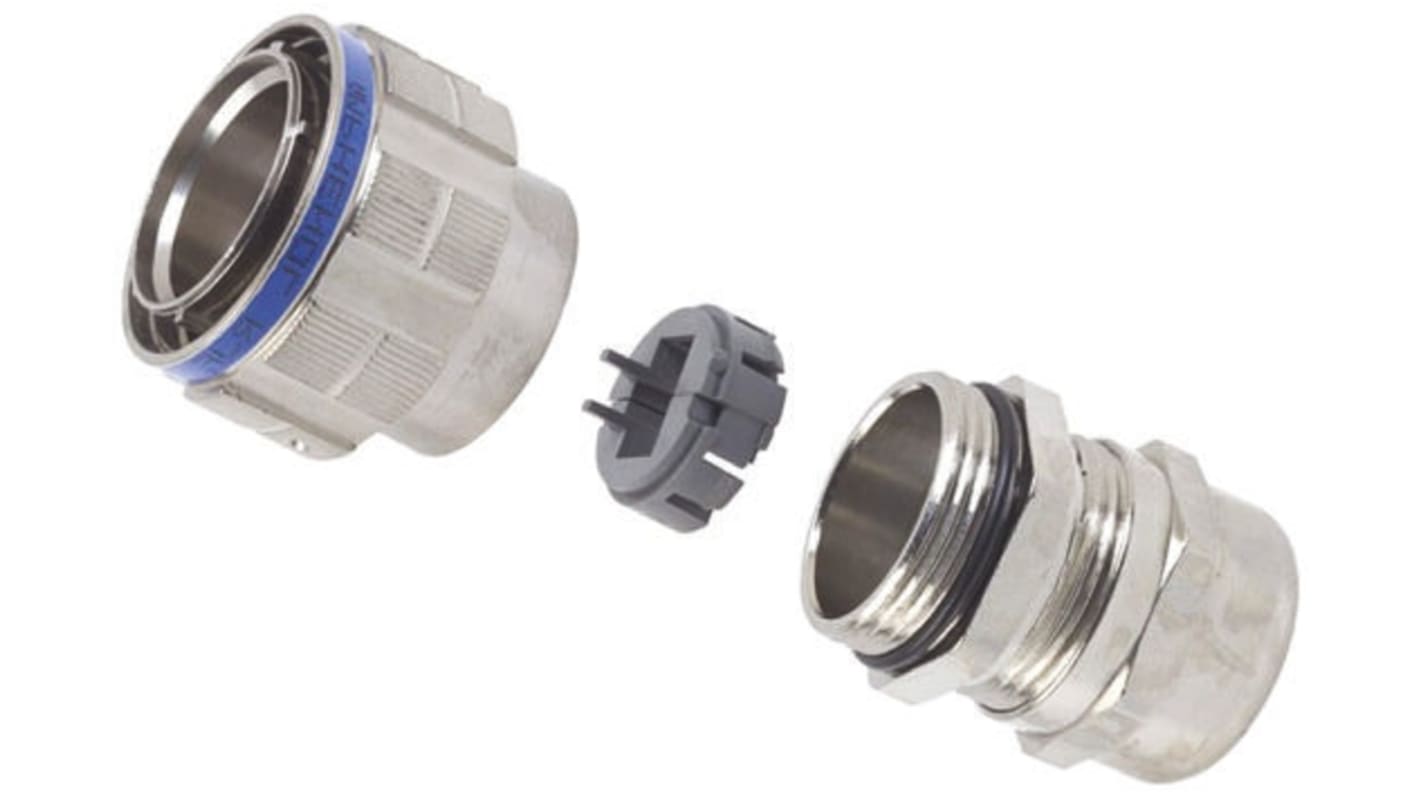

Amphenol RJF TV Series Ethernet Plugs
RJ Field TV series RJ45 Ethernet plugs that allow data acquisition and transmission (Ethernet class D, Cat 5e connection for 10 BaseT, 100 BaseTX and 1000 BaseT networks) in harsh environments. These RJF TV Ethernet plugs are IP67 sealed, shock, vibration and traction resistant, have EMI protection and 4 positon mechanical coding/polarization. An RJ45 cordset retention is contained within these RJ Field TV Ethernet plugs and a patented RJStop system allows a standard RJ45 cordset to be used. The RJ Field TV plug is connected into a receptacle using a Tri Start thread coupling mechanism (MIL-DTL-38999 series III type) with an anti-decoupling device, no field cabling tools are required.
Features & Benefits
Stock number 447-9961 has a plastic gland with an aluminium shell with an olive drab cadmium plating.
Stock number 447-9977 has a metal gland with an aluminium shell with an olive drab cadmium plating.
Stock number 695-0295 has a metal gland with an aluminium shell with a nickel plating
A metallic plug cap is also available, see stock number 448-0012
Typical applications for these RJ Field TV series Ethernet plugs include railways, radars, shelters, battlefield communication systems and naval.
Standards
Cat 5e per TIA/EIA 568B and ClassD per ISO/IEC 11801
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Ethernet Connector Type | RJ45 Connector |
| LAN Category | Cat5e |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Number of Ways | 8 |
| Shield Type | Shielded |
| Orientation | Straight |
| IP Rating | IP68 |
| Length | 56mm |
| Depth | 38mm |
| Series Number | RJFTV |
| Series | RJFTV |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
- RS Stock No.:
- 695-0295
- Mfr. Part No.:
- RJFTV6MN
- Brand:
- Amphenol Socapex
