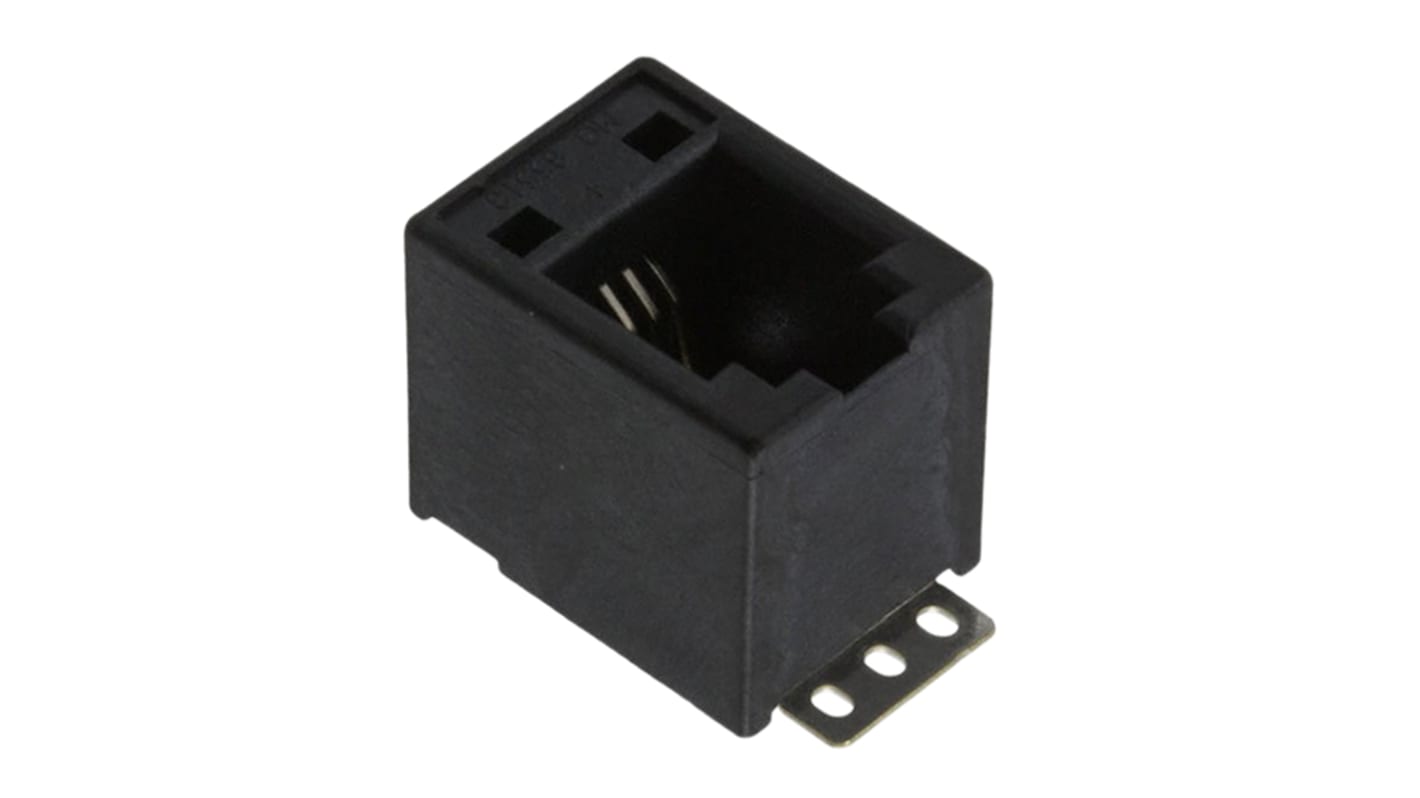

Molex 85513 Series Female RJ11 Connector, Surface Mount
- RS Stock No.:
- 161-9619
- Mfr. Part No.:
- 85513-5004
- Brand:
- Molex
1146 In stock - FREE next working day delivery available
Price Each (On a Reel of 1750)
£0.648
(exc. VAT)
£0.778
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 1750 + | £0.648 | £1,134.00 |
*price indicative
- RS Stock No.:
- 161-9619
- Mfr. Part No.:
- 85513-5004
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IE
Product Details
Molex 85513 Series Cat 3 SMT Vertical Low Profile Modular Jacks
85513 series Cat 3 SMT vertical (top entry) RJ12 and RJ45 modular jacks with a low profile height of 12.7mm. These Cat 3 SMT modular PCB jacks have an industry standard footprint, PCB retention and highly reliable gold plated square contacts. For mating RJ modular plugs see 90075 series, stock number 800-8015 typically
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Ethernet Connector Type | RJ11 Connector |
| Mounting Type | Surface Mount |
| Number of Ways | 4P4C |
| Shield Type | Unshielded |
| Orientation | Vertical |
| Length | 11.18mm |
| Width | 15.08mm |
| Depth | 12.7mm |
| Series | 85513 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Palladium Nickel |
