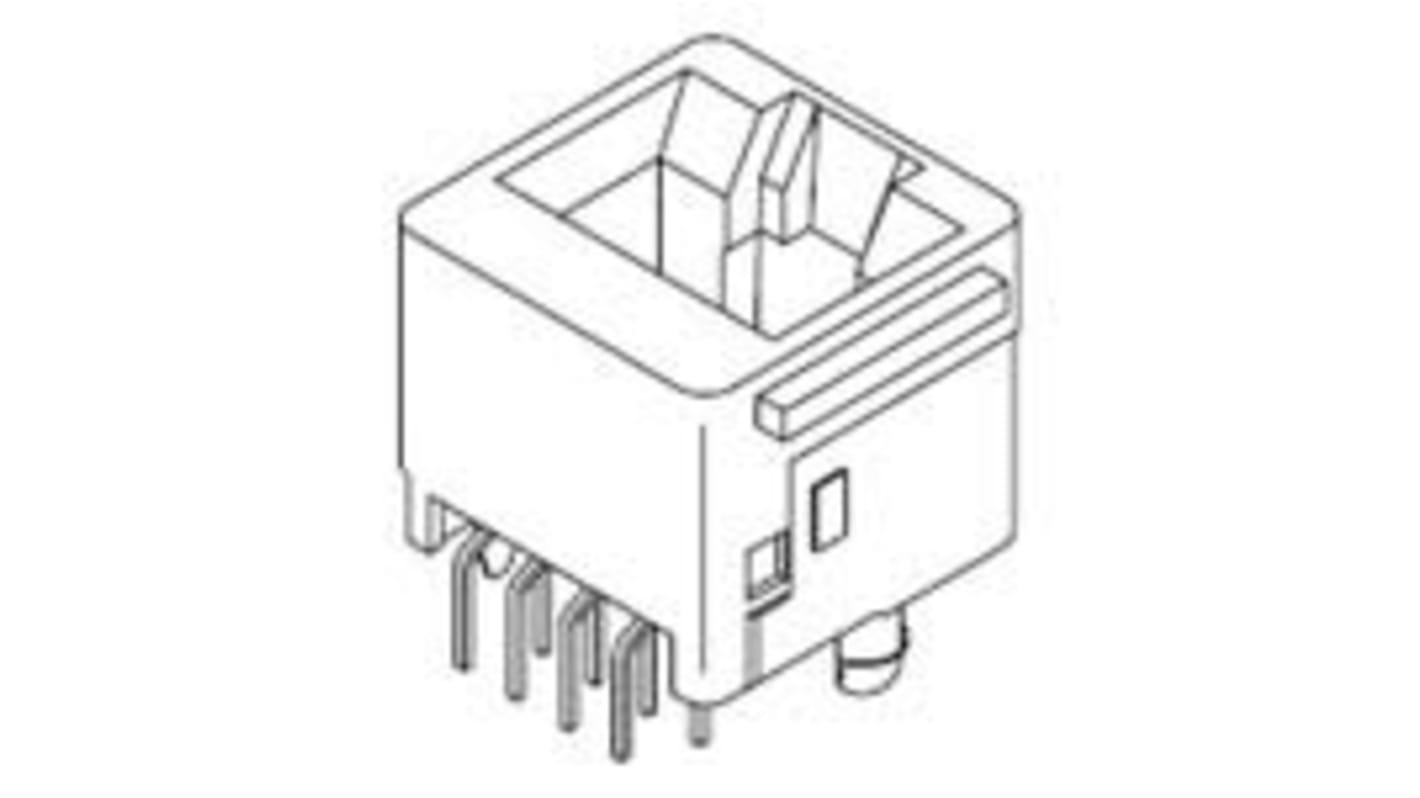

Molex 42878 Series RJ11 Connector Female, Through Hole, Cat3 Unshielded Vertical 2 Port 1 Way
- RS Stock No.:
- 151-2669
- Mfr. Part No.:
- 428786218
- Brand:
- Molex
Bulk discount available
Subtotal (1 tray of 1680 units)*
£1,832.88
(exc. VAT)
£2,199.12
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 1680 - 1680 | £1.091 | £1,832.88 |
| 3360 + | £1.061 | £1,782.48 |
*price indicative
- RS Stock No.:
- 151-2669
- Mfr. Part No.:
- 428786218
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Ethernet Connector Type | RJ11 | |
| Product Type | RJ11 Connector | |
| LAN Category | Cat3 | |
| Mount Type | Through Hole | |
| Number of Ports | 2 | |
| Number of Ways | 1 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | Unshielded | |
| Orientation | Vertical | |
| Magnetic | No | |
| LED | No | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Light Pipes | No | |
| Maximum Operating Temperature | 85°C | |
| Length | 16mm | |
| Series | 42878 | |
| Width | 15.88mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | No | |
| Depth | 12.7mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin, Gold | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Ethernet Connector Type RJ11 | ||
Product Type RJ11 Connector | ||
LAN Category Cat3 | ||
Mount Type Through Hole | ||
Number of Ports 2 | ||
Number of Ways 1 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type Unshielded | ||
Orientation Vertical | ||
Magnetic No | ||
LED No | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Light Pipes No | ||
Maximum Operating Temperature 85°C | ||
Length 16mm | ||
Series 42878 | ||
Width 15.88mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals No | ||
Depth 12.7mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin, Gold | ||
Modular Jack, Vertical, Low Profile, 6/6
