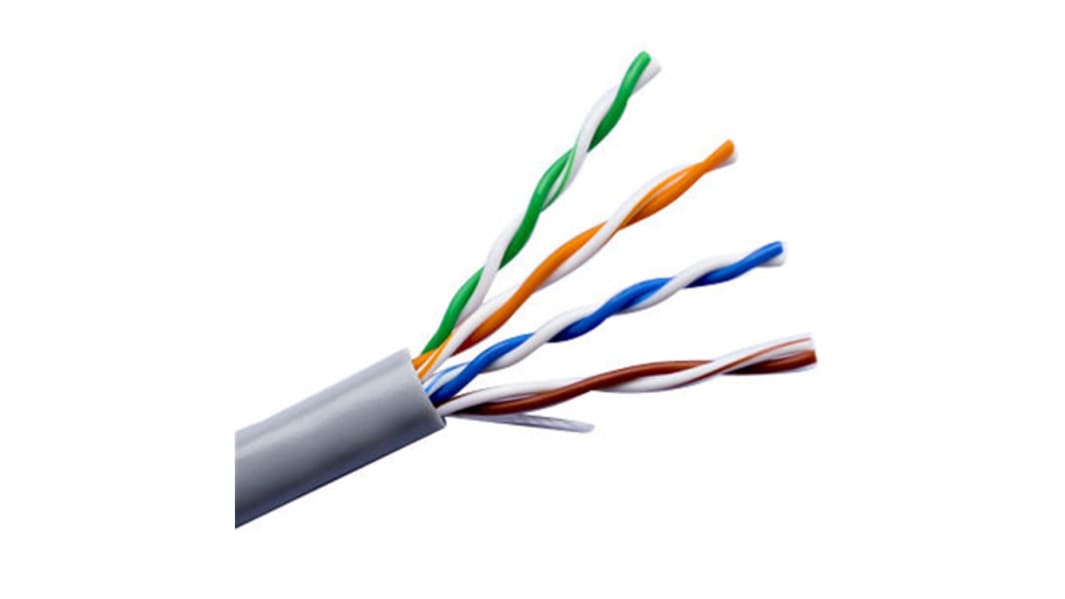

Belden 1583E Cat5e Ethernet Cable, 305 m, Unscreened, Grey PVC
- RS Stock No.:
- 331-8663
- Distrelec Article No.:
- 301-85-669
- Mfr. Part No.:
- 1583E.00305
- Brand:
- Belden
Subtotal (1 reel of 304 metres)*
£235.65
(exc. VAT)
£282.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 31 unit(s) shipping from 24 August 2026
- Plus 4 unit(s) shipping from 03 September 2026
- Plus 2 unit(s) shipping from 01 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £235.65 | £0.775 |
*price indicative
- RS Stock No.:
- 331-8663
- Distrelec Article No.:
- 301-85-669
- Mfr. Part No.:
- 1583E.00305
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 1583E | |
| Product Type | Ethernet Cable | |
| Cable Length | 305m | |
| LAN Category | Cat5e | |
| Shield Type | Unshielded | |
| Screened/Unscreened | Unscreened | |
| Conductor Type | Solid | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | Euroclass Eca | |
| Cable CSA | 0.2mm² | |
| Fire Behaviour | IEC 60332-1 | |
| Number of Cores | 8 | |
| Conductor Material | Copper | |
| Outside Diameter | 4.7mm | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Series 1583E | ||
Product Type Ethernet Cable | ||
Cable Length 305m | ||
LAN Category Cat5e | ||
Shield Type Unshielded | ||
Screened/Unscreened Unscreened | ||
Conductor Type Solid | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals Euroclass Eca | ||
Cable CSA 0.2mm² | ||
Fire Behaviour IEC 60332-1 | ||
Number of Cores 8 | ||
Conductor Material Copper | ||
Outside Diameter 4.7mm | ||
- COO (Country of Origin):
- HU
Belden Cat5e Ethernet Cable, 24AWG - 1583E
For devices that call for fast and reliable data communication, choose this Ethernet cable from Belden. It's a Cat5e cable, meaning it's capable of delivering data transfer rates as high as 1Gbps. This makes it a practical choice for settings in need of high-speed transmission. It's unterminated at both ends, giving you the flexibility to choose a suitable connector, and its conveniently long cable length allows for long-distance connections. You'll find this versatile cable used in domestic, commercial and industrial applications.
Features & Benefits
• PE (polyethylene) insulation to prevent electric shock
• PVC outer sheath for impact and abrasion resistance
• Twisted pair design to prevent electromagnetic interference and ensure noiseless transmission
• Wide operating temperature range of -30°C to +60°C for use in challenging industrial environments
• Voltage rating of 72V for use in medium-voltage applications
Applications
• Broadcast and telecommunication stations
• Security systems
• Office equipment
What's the minimum bend radius of this cable?
The minimum bend radius of this cable is 40mm. This is eight times larger than its diameter and means it's suitable for installation around corners without loss of performance.
Standards
TIA/EIA 568B1; ISO/IEC 11801; EN 50173
