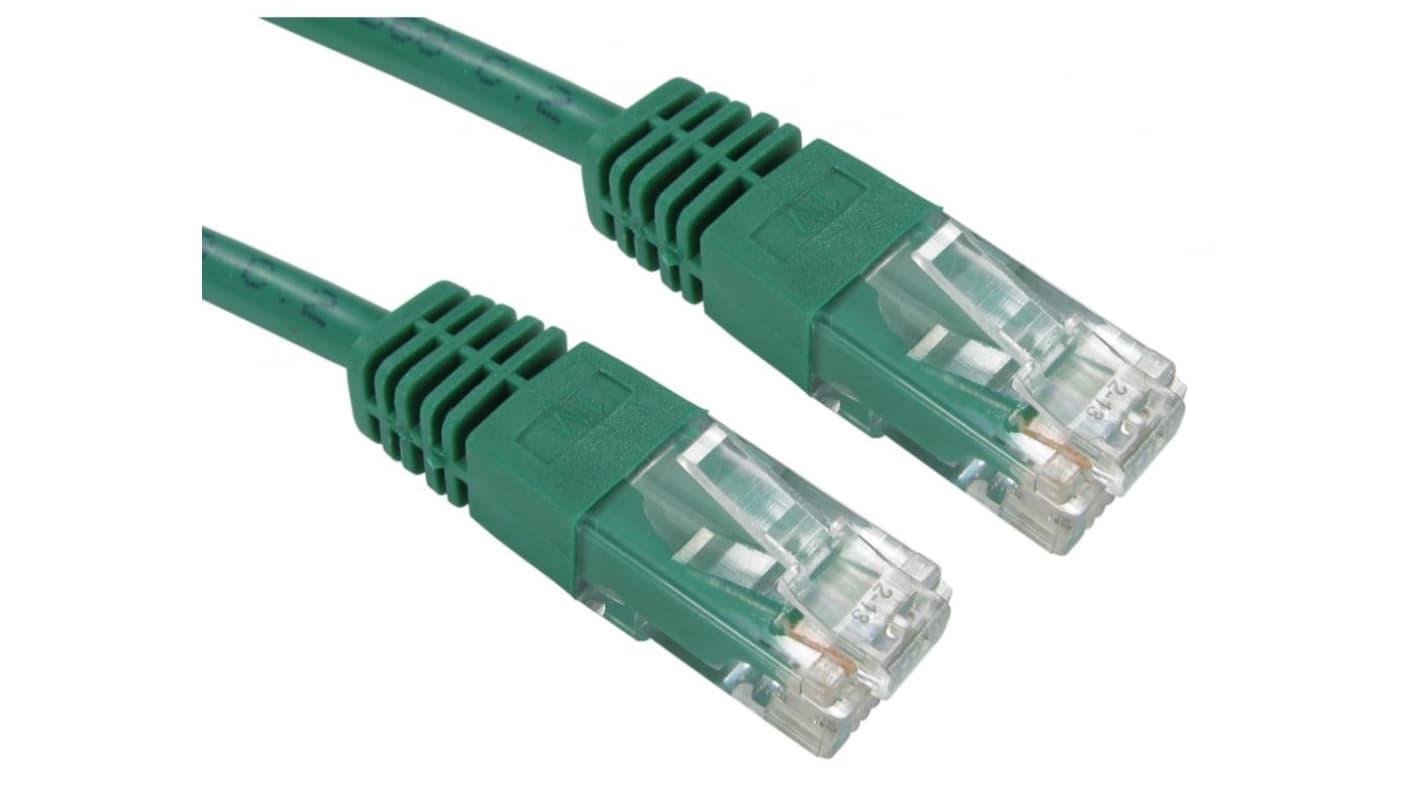

RS PRO, 3m Cat5e, Green RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3604
Brand:: RS PRO

RS PRO, 3m Cat5e, Green RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£3.12

(exc. VAT)

£3.74

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

86 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£3.12

*price indicative

RS Stock No.:: 286-3604
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	3m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Number of Contacts	8
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 1 Orientation	Straight
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Shielded/Unshielded	Unshielded
	Connector 2 Orientation	Straight
	Outer Sheath Material	PVC
	Sheath Colour	Green
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.15
	Current Rating	960mA
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	American Wire Gauge	26AWG
	Cable Shape	Round
	Number of Strands	8
	Voltage Rating	80V
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.126 to 0.158mm²
	Outer Diameter	4.6mm
	Conductor Strand Type	Stranded

	Select all
	Brand RS PRO
	Length 3m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Number of Contacts 8
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 1 Orientation Straight
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Shielded/Unshielded Unshielded
	Connector 2 Orientation Straight
	Outer Sheath Material PVC
	Sheath Colour Green
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.15
	Current Rating 960mA
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	American Wire Gauge 26AWG
	Cable Shape Round
	Number of Strands 8
	Voltage Rating 80V
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.126 to 0.158mm²
	Outer Diameter 4.6mm
	Conductor Strand Type Stranded

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Patch Cable

The RS PRO Ethernet Cable is a high-quality Cat5e patch cable designed for reliable and efficient data transmission in computer networks. Ideal for Ethernet applications, this cable ensures high signal integrity and noise rejection, making it a dependable choice for both home and office networking.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures effective noise rejection
Cat5e standard supports high-speed data transfer
Moulded connectors provide durability and strain relief
26 AWG bare copper cores enhance conductivity and performance
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 standards guarantee compatibility and reliability
PoE compatible for powering devices over Ethernet

Applications

Computer networks
Ethernet connections
Home and office networking

Additional Information

Sheath Colour: Green
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Standards Met: C (UL)

CM (UL)

ISO/IEC 11801

TIA/EIA 568B.2
Length: 3 m
Connector Type: RJ45 Male to Male
