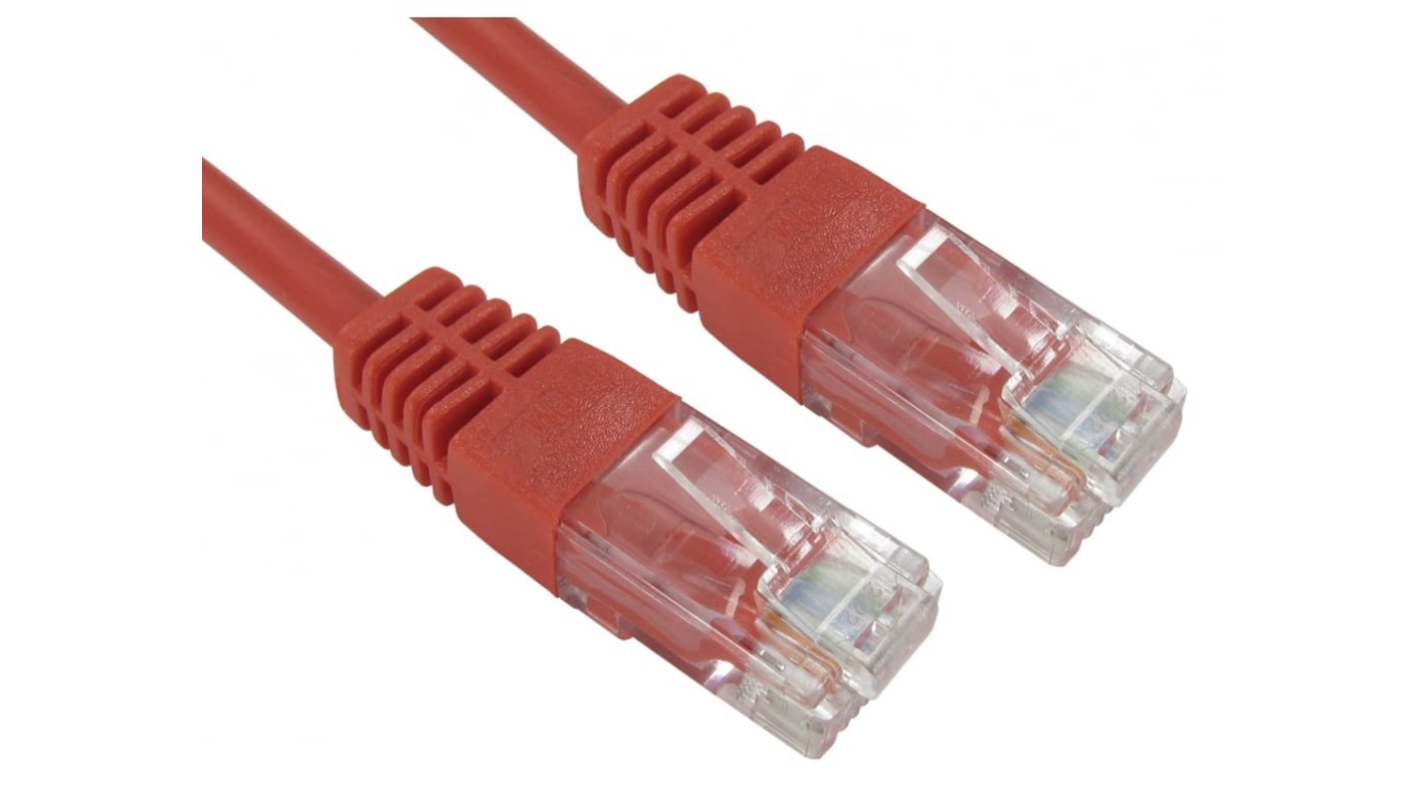

RS PRO, 2m Cat5e, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3595
Brand:: RS PRO

RS PRO, 2m Cat5e, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£2.27

(exc. VAT)

£2.72

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

53 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location
Plus 80 unit(s) shipping from 18 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£2.27

*price indicative

RS Stock No.:: 286-3595
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	2m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Gender	Male
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	8
	Connector 1	RJ45
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Shielded/Unshielded	Unshielded
	Connector 2 Orientation	Straight
	Outer Sheath Material	PVC
	Sheath Colour	Red
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.15
	Outer Diameter	4.6mm
	Conductor Strand Type	Stranded
	Cross Sectional Area	0.126 to 0.158mm²
	Capacitance	5.6nF/100m
	American Wire Gauge	26AWG
	Current Rating	960mA
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Cable Shape	Round
	Voltage Rating	80V
	Number of Strands	8

	Select all
	Brand RS PRO
	Length 2m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Gender Male
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 8
	Connector 1 RJ45
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Shielded/Unshielded Unshielded
	Connector 2 Orientation Straight
	Outer Sheath Material PVC
	Sheath Colour Red
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.15
	Outer Diameter 4.6mm
	Conductor Strand Type Stranded
	Cross Sectional Area 0.126 to 0.158mm²
	Capacitance 5.6nF/100m
	American Wire Gauge 26AWG
	Current Rating 960mA
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Cable Shape Round
	Voltage Rating 80V
	Number of Strands 8

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Patch Cable

This RS PRO Ethernet Cable is a high-quality Cat5e patch cable designed for reliable data transmission in computer networks. Ideal for Ethernet applications, it offers excellent noise rejection and is suitable for both home and office environments.

Features and Benefits

UTP (Unshielded Twisted Pair): Provides effective noise rejection without the need for shielding
Cat5e: Supports high-speed data transfer up to 1 Gbps
Moulded: Enhances durability and strain relief
26 AWG Bare Copper Cores: Ensures efficient conductivity and performance
CM (UL) C(UL) 4P: Meets safety and performance standards
ISO/IEC 11801 and TIA/EIA 568B.2: Complies with international cabling standards
PoE Compatible: Supports Power over Ethernet applications

Applications

Computer networks
Ethernet connections
Home and office networking

Additional Information

Sheath Colour: Red
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Fire Behaviour: CM Rated
Voltage Rating: 80 V
Length: 2 m
Connector Type: RJ45 Male to Male
