RS PRO, 3m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3517
Brand:: RS PRO

RS PRO, 3m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£6.66

(exc. VAT)

£7.99

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 01 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£6.66

*price indicative

RS Stock No.:: 286-3517
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	3m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	8
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	PVC
	Sheath Colour	Black
	Wiring Configuration	Straight Through
	Core Strands	7/0.10
	Fire Behaviour	CM Rated
	Cross Sectional Area	0.0549mm²
	Standards Met	C (UL), CM LSOH, CSA LL2047
	Outer Diameter	5.4mm
	American Wire Gauge	30AWG
	Voltage Rating	60V
	Current Rating	0.8A
	Conductor Strand Type	Stranded
	Cable Shape	Round
	Capacitance	≤5.6nFnF/100m
	Number of Strands	8

	Select all
	Brand RS PRO
	Length 3m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 8
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Outer Sheath Material PVC
	Sheath Colour Black
	Wiring Configuration Straight Through
	Core Strands 7/0.10
	Fire Behaviour CM Rated
	Cross Sectional Area 0.0549mm²
	Standards Met C (UL), CM LSOH, CSA LL2047
	Outer Diameter 5.4mm
	American Wire Gauge 30AWG
	Voltage Rating 60V
	Current Rating 0.8A
	Conductor Strand Type Stranded
	Cable Shape Round
	Capacitance ≤5.6nFnF/100m
	Number of Strands 8

COO (Country of Origin):: CN

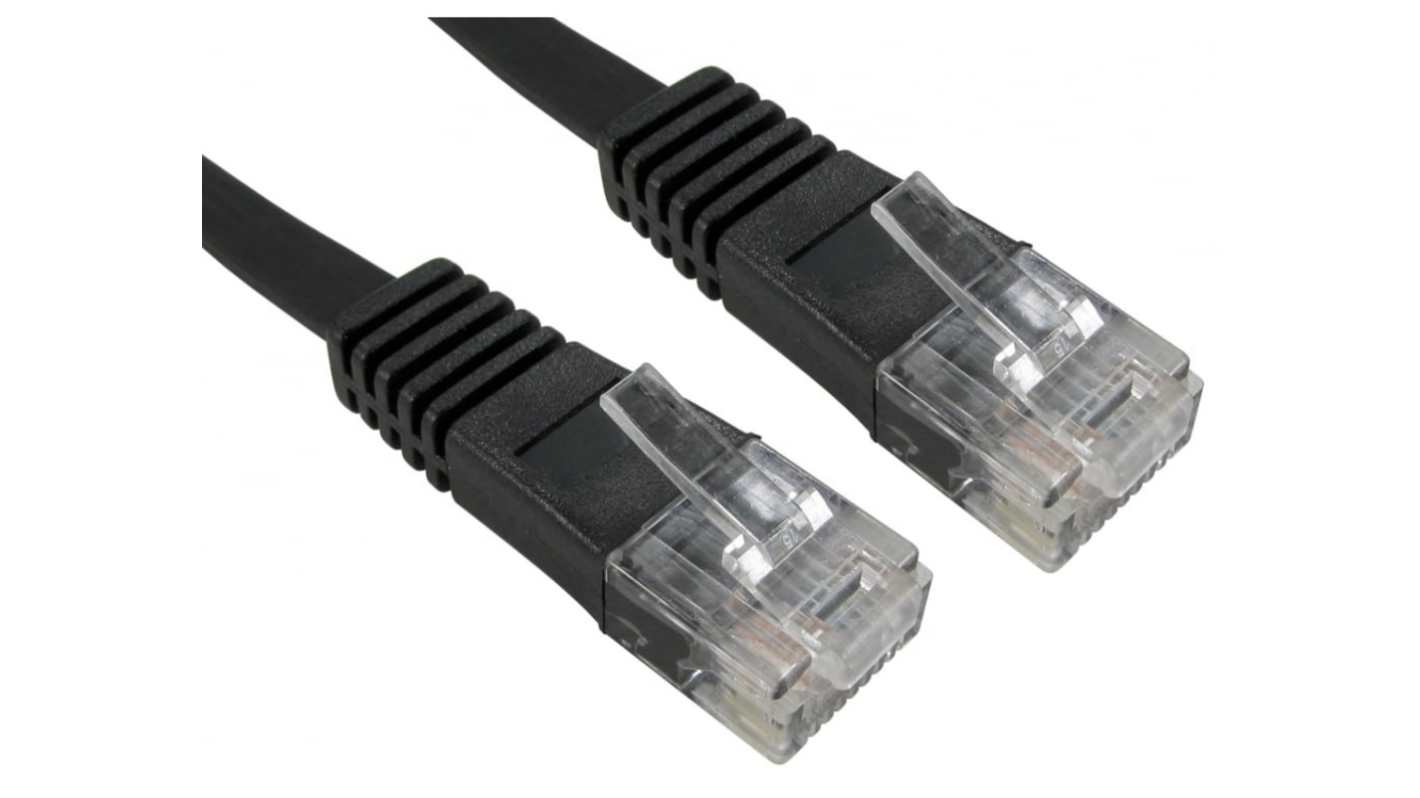

RS PRO Ethernet Cable, Cat5e Flat Patch Cable

This RS PRO Ethernet Cable is a high-quality Cat5e flat patch cable designed for reliable network connections. Ideal for use in computer networks, it offers excellent signal integrity and is particularly useful for installations under carpets and flooring.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures noise rejection and reliable performance
Cat5e classification supports high-speed data transfer for efficient networking
Moulded connectors provide durability and secure connections
30 AWG bare copper cores enhance conductivity and signal quality
C(UL) CM LSOH rating ensures compliance with safety standards

Applications

Computer networks
Ethernet connections
Office and home networking

Additional Information

Standards Met: C (UL)

CM LSOH

CSA LL2047
Connector Type: RJ45, Male to Male
Length: 3 m
