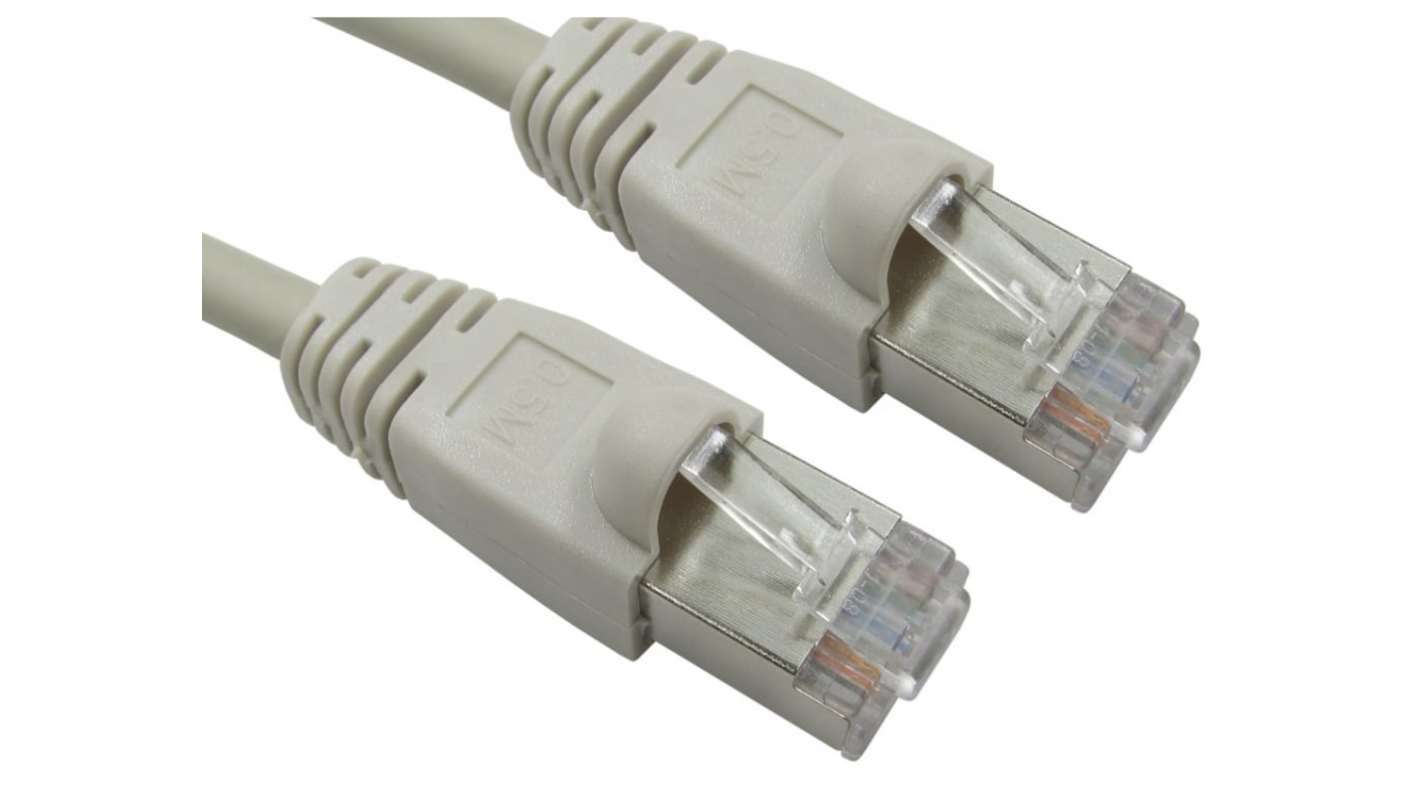

RS PRO, 2m Cat6, Grey RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

RS Stock No.:: 286-3232
Brand:: RS PRO

RS PRO, 2m Cat6, Grey RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

Subtotal (1 unit)*

£5.77

(exc. VAT)

£6.92

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

664 unit(s) ready to ship
Plus 453 unit(s) ready to ship from another location
Plus 50 unit(s) shipping from 04 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£5.77

*price indicative

RS Stock No.:: 286-3232
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat6
	Length	2m
	Terminated/Unterminated	Terminated
	Shield Type	FTP
	Connector 1 Gender	Male
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 1 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Shielded
	Outer Sheath Material	LSZH
	Sheath Colour	Grey
	Wiring Configuration	Straight Through
	Core Strands	7/0.15
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Conductor Strand Type	Stranded
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.126 to 0.158mm²
	Current Rating	960mA
	Standards Met	ISO/IEC 11801, TIA/EIA 568B.2-1
	Cable Shape	Round
	Number of Strands	8
	American Wire Gauge	26AWG
	Outer Diameter	5.6mm
	Voltage Rating	80V

	Select all
	Brand RS PRO
	LAN Category Cat6
	Length 2m
	Terminated/Unterminated Terminated
	Shield Type FTP
	Connector 1 Gender Male
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 1 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Shielded
	Outer Sheath Material LSZH
	Sheath Colour Grey
	Wiring Configuration Straight Through
	Core Strands 7/0.15
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Conductor Strand Type Stranded
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.126 to 0.158mm²
	Current Rating 960mA
	Standards Met ISO/IEC 11801, TIA/EIA 568B.2-1
	Cable Shape Round
	Number of Strands 8
	American Wire Gauge 26AWG
	Outer Diameter 5.6mm
	Voltage Rating 80V

COO (Country of Origin):: CN

RS PRO Ethernet Cable, LSZH Snagless Shielded Cat6

This RS PRO Ethernet Cable is a high-performance solution for Gigabit Ethernet and other network protocols. Designed to meet Category 6 standards, it offers enhanced specifications for crosstalk and system noise, ensuring reliable data transmission. The cable is Low Smoke Zero Halogen (LSZH), reducing toxic emissions during combustion, making it ideal for use in environments where safety is a priority.

Features and Benefits

F/UTP (Foil Over Unshielded Twisted Pairs) construction ensures reduced interference
Cat 6 standard provides performance up to 250 MHz for high-speed data transfer
LSZH material minimises toxic gas emissions, enhancing safety
Snagless boot design prevents cable damage during installation
26 AWG bare copper cores offer excellent conductivity
Complies with ISO/IEC 11801 and TIA/EIA 568B.2-1 standards for assured quality
PoE compatible, supporting power over Ethernet applications

Applications

Data centres
Telecommunications
Commercial networking
Industrial automation

Additional Information

Meets ISO/IEC 11801 and TIA/EIA 568B.2-1 standards
RJ45 connectors with 8 contacts for secure connections
