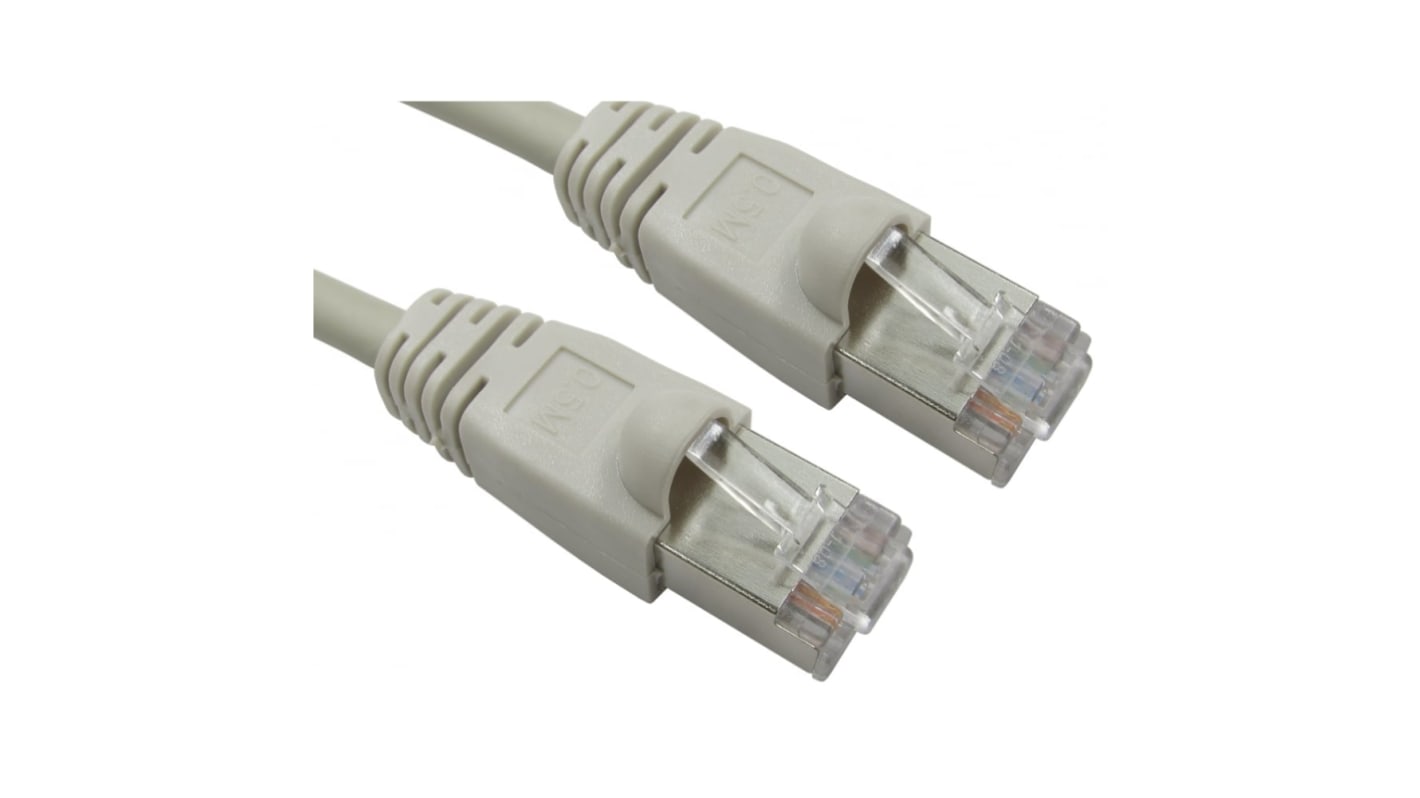

RS PRO, 1m Cat6, Grey RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

RS Stock No.:: 286-3226
Brand:: RS PRO

RS PRO, 1m Cat6, Grey RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

Subtotal (1 unit)*

£4.48

(exc. VAT)

£5.38

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

458 unit(s) ready to ship
Plus 192 unit(s) ready to ship from another location
Plus 80 unit(s) shipping from 30 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£4.48

*price indicative

RS Stock No.:: 286-3226
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat6
	Length	1m
	Terminated/Unterminated	Terminated
	Shield Type	FTP
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Shielded/Unshielded	Shielded
	Connector 2 Orientation	Straight
	Outer Sheath Material	LSZH
	Sheath Colour	Grey
	Wiring Configuration	Straight Through
	Core Strands	7/0.15
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Voltage Rating	80V
	Conductor Strand Type	Stranded
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.126 to 0.158mm²
	Current Rating	960mA
	Standards Met	ISO/IEC 11801, TIA/EIA 568B.2-1
	Cable Shape	Round
	Number of Strands	8
	Outer Diameter	5.6mm
	American Wire Gauge	26AWG

	Select all
	Brand RS PRO
	LAN Category Cat6
	Length 1m
	Terminated/Unterminated Terminated
	Shield Type FTP
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Shielded/Unshielded Shielded
	Connector 2 Orientation Straight
	Outer Sheath Material LSZH
	Sheath Colour Grey
	Wiring Configuration Straight Through
	Core Strands 7/0.15
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Voltage Rating 80V
	Conductor Strand Type Stranded
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.126 to 0.158mm²
	Current Rating 960mA
	Standards Met ISO/IEC 11801, TIA/EIA 568B.2-1
	Cable Shape Round
	Number of Strands 8
	Outer Diameter 5.6mm
	American Wire Gauge 26AWG

COO (Country of Origin):: CN

RS PRO Ethernet Cable, LSZH Snagless Shielded Cat6 Patch Cable

This RS PRO Ethernet Cable is a high-performance Cat6 patch cable designed for Gigabit Ethernet and other network protocols. It is backward compatible with Cat5/5e and Category 3 standards, offering enhanced specifications for crosstalk and system noise reduction. The cable features a Low Smoke Zero Halogen (LSZH) sheath, reducing toxic emissions during combustion.

Features and Benefits

F/UTP (Foil Over Unshielded Twisted Pairs) construction ensures reduced interference
Cat6 standard provides up to 250 MHz performance for reliable data transmission
LSZH sheath minimises toxic gas emissions, enhancing safety
Snagless boot design prevents cable damage during installation
26 AWG bare copper cores offer robust connectivity
Complies with ISO/IEC 11801 and TIA/EIA 568B.2-1 standards for quality assurance
PoE compatible, supporting power over Ethernet applications

Applications

Data centres
Telecommunications
Networking installations
Commercial and residential buildings

Additional Information

Meets ISO/IEC 11801 and TIA/EIA 568B.2-1 standards
RJ45 connectors with 8 contacts for secure connections
