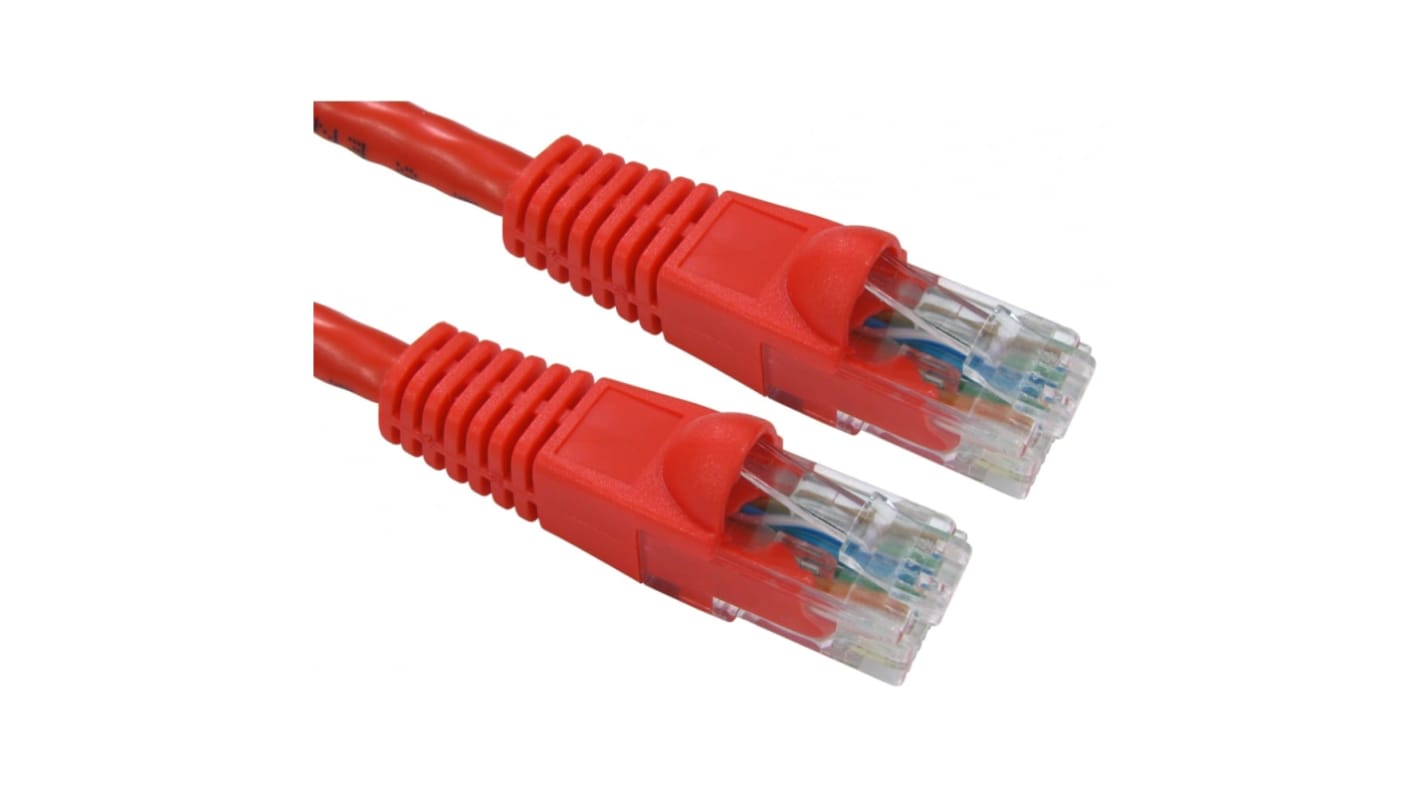

RS PRO, 0.5m Cat6, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 286-3113
- Brand:
- RS PRO
Subtotal (1 unit)*
£2.78
(exc. VAT)
£3.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.78 |
*price indicative
- RS Stock No.:
- 286-3113
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| LAN Category | Cat6 | |
| Length | 0.5m | |
| Terminated/Unterminated | Terminated | |
| Shield Type | UTP | |
| Connector 1 Number of Contacts | 8 | |
| Connector 1 Orientation | Straight | |
| Connector 1 | RJ45 | |
| Connector 1 Gender | Male | |
| Connector 2 Number of Contacts | 8 | |
| Connector 2 | RJ45 | |
| Connector 2 Gender | Male | |
| Connector 2 Orientation | Straight | |
| Shielded/Unshielded | Unshielded | |
| Outer Sheath Material | PVC | |
| Sheath Colour | Red | |
| Wiring Configuration | Straight Through | |
| Outer Diameter | 5.4mm | |
| American Wire Gauge | 24AWG | |
| Standards Met | EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-568-B.2-1 | |
| Current Rating | 2.8A | |
| Cross Sectional Area | 0.1645mm² | |
| Capacitance | ≤5.6nFnF/100m | |
| Number of Strands | 8 | |
| Cable Shape | Round | |
| Conductor Strand Type | Stranded | |
| Voltage Rating | 300V | |
