RS PRO, 1m Cat6, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 264-6527
Brand:: RS PRO

RS PRO, 1m Cat6, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£2.41

(exc. VAT)

£2.89

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

151 unit(s) ready to ship
Plus 130 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£2.41

*price indicative

RS Stock No.:: 264-6527
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat6
	Length	1m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1	RJ45
	Connector 1 Orientation	Straight
	Connector 1 Gender	Male
	Connector 1 Number of Contacts	8
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Gender	Male
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	PVC
	Sheath Colour	Red
	Wiring Configuration	Straight Through
	Core Strands	7/0.18
	Fire Behaviour	CM Rated
	Cross Sectional Area	0.201 to 0.253mm²
	Conductor Strand Type	Stranded
	Voltage Rating	80V
	Current Rating	960mA
	Capacitance	5.6nF/100m
	Cable Shape	Round
	Number of Strands	8
	American Wire Gauge	24AWG
	Outer Diameter	5.5mm
	Standards Met	EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1

	Select all
	Brand RS PRO
	LAN Category Cat6
	Length 1m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 RJ45
	Connector 1 Orientation Straight
	Connector 1 Gender Male
	Connector 1 Number of Contacts 8
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Gender Male
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Outer Sheath Material PVC
	Sheath Colour Red
	Wiring Configuration Straight Through
	Core Strands 7/0.18
	Fire Behaviour CM Rated
	Cross Sectional Area 0.201 to 0.253mm²
	Conductor Strand Type Stranded
	Voltage Rating 80V
	Current Rating 960mA
	Capacitance 5.6nF/100m
	Cable Shape Round
	Number of Strands 8
	American Wire Gauge 24AWG
	Outer Diameter 5.5mm
	Standards Met EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1

COO (Country of Origin):: CN

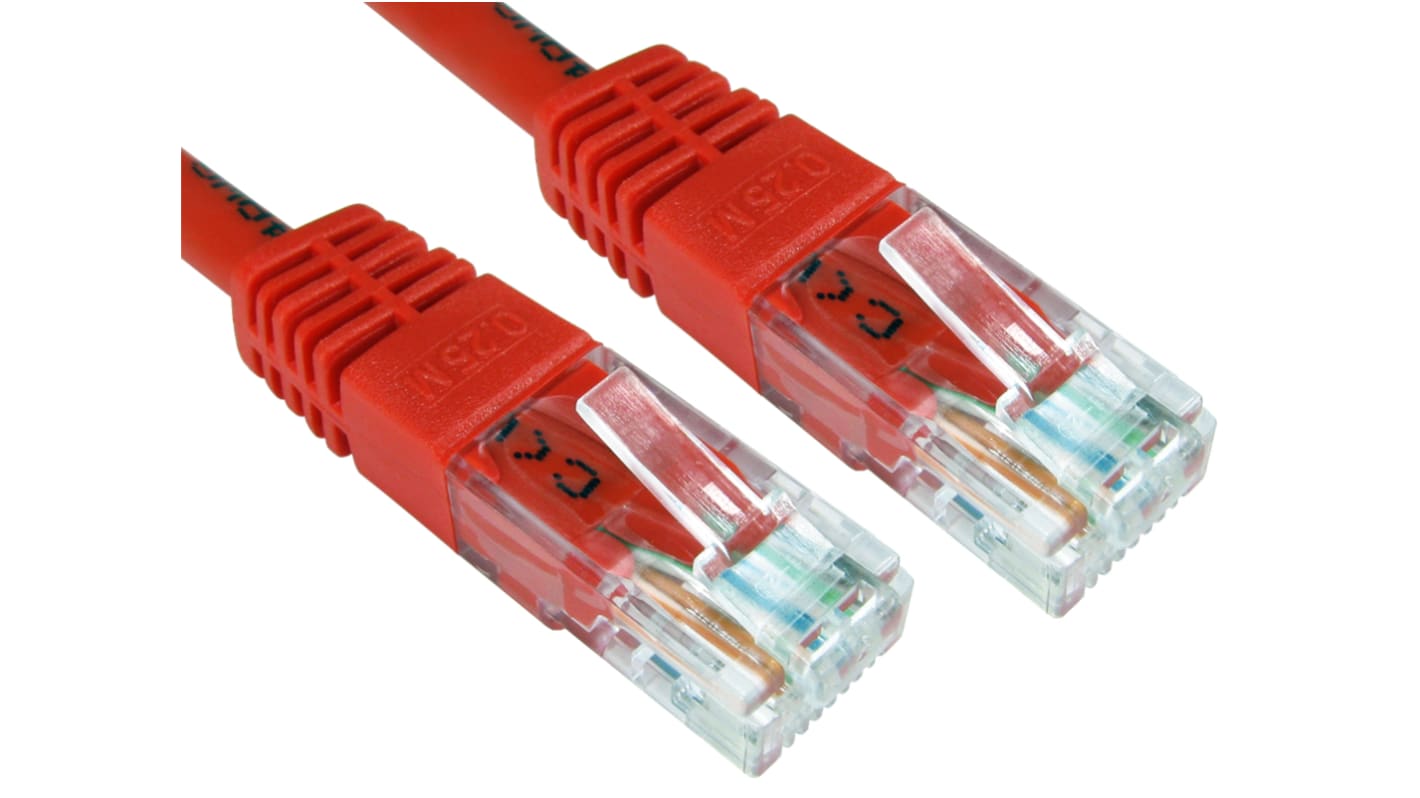

RS PRO Ethernet Cable, Cat6 Gigabit Patch Cable

This RS PRO Ethernet Cable is designed for high-speed network connections, supporting Gigabit Ethernet and other network protocols. It is backward compatible with Cat-5/5e and Cat-3 standards, offering enhanced performance with reduced crosstalk and system noise.

Features and Benefits

Category 6 Cable: Provides performance up to 250 MHz
UTP (Unshielded Twisted Pair): Reduces interference and maintains signal integrity
Moulded Design: Enhances durability and strain relief
24 AWG Bare Copper Cores: Ensures reliable data transmission
PoE Compatible: Supports Power over Ethernet applications
ISO/IEC 11801 & EN 50288 Compliance: Meets international standards for quality and performance

Applications

Data centres
Office networks
Home networking
Telecommunications

Additional Information

Standards Met: EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1
Length: 1 m
Connector Type: RJ45 Male to Male
