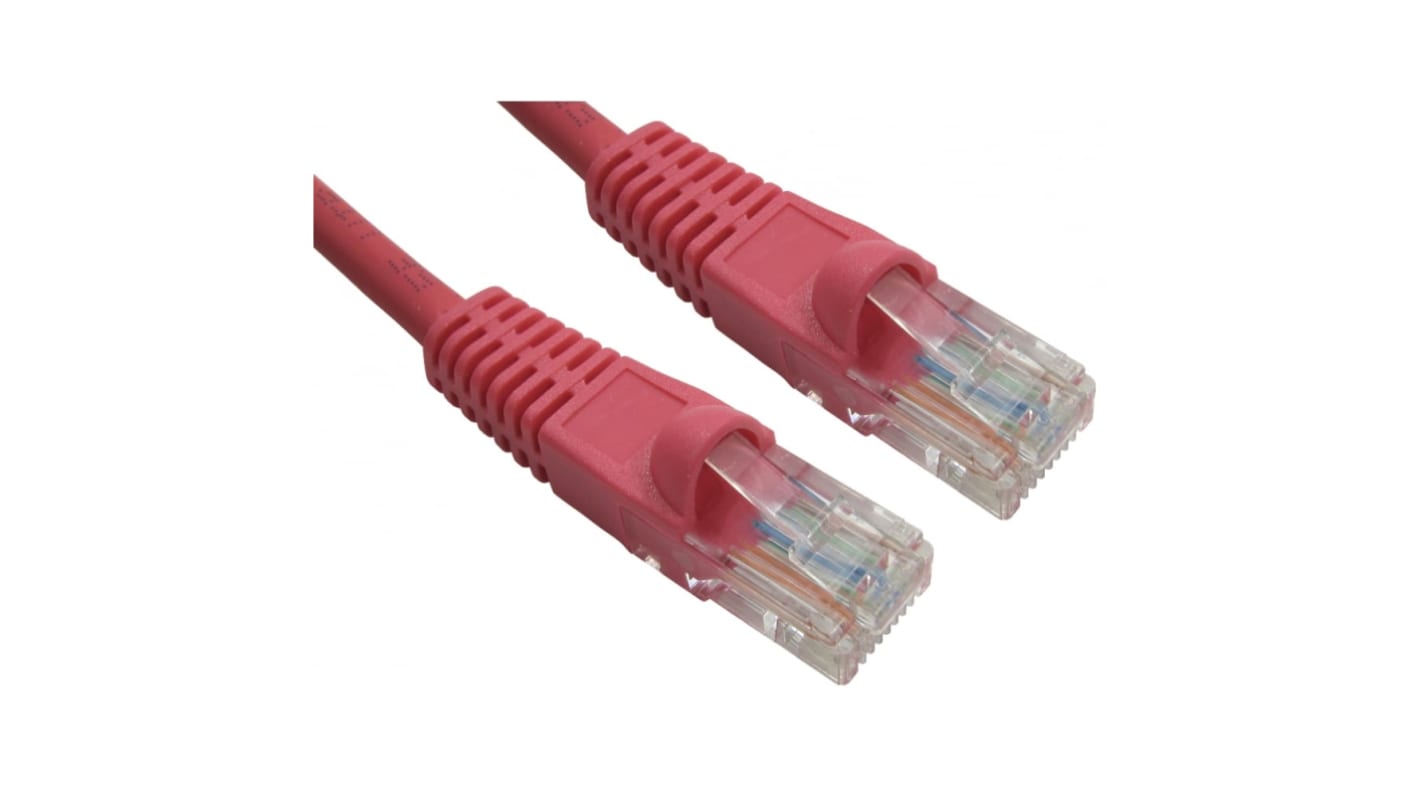

RS PRO, 1m Cat6, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated LSZH Sheath
- RS Stock No.:
- 286-3169
- Brand:
- RS PRO
Subtotal (1 unit)*
£3.64
(exc. VAT)
£4.37
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 01 December 2025
Units | Per unit |
---|---|
1 + | £3.64 |
*price indicative
- RS Stock No.:
- 286-3169
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Length | 1m | |
LAN Category | Cat6 | |
Terminated/Unterminated | Terminated | |
Shield Type | UTP | |
Connector 1 Gender | Male | |
Connector 1 | RJ45 | |
Connector 1 Number of Contacts | 8 | |
Connector 1 Orientation | Straight | |
Connector 2 Gender | Male | |
Connector 2 Number of Contacts | 8 | |
Connector 2 | RJ45 | |
Connector 2 Orientation | Straight | |
Shielded/Unshielded | Unshielded | |
Sheath Colour | Red | |
Outer Sheath Material | LSZH | |
Wiring Configuration | Straight Through | |
Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
Core Strands | 7/0.19 | |
American Wire Gauge | 24AWG | |
Voltage Rating | 300V | |
Conductor Strand Type | Stranded | |
Capacitance | ≤5.6nFnF/100m | |
Cross Sectional Area | 0.1645mm² | |
Current Rating | 2.8A | |
Standards Met | EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2 | |
Cable Shape | Round | |
Outer Diameter | 5.9mm | |
Number of Strands | 8 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Length 1m | ||
LAN Category Cat6 | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Gender Male | ||
Connector 1 RJ45 | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Straight | ||
Connector 2 Gender Male | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 RJ45 | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Sheath Colour Red | ||
Outer Sheath Material LSZH | ||
Wiring Configuration Straight Through | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Core Strands 7/0.19 | ||
American Wire Gauge 24AWG | ||
Voltage Rating 300V | ||
Conductor Strand Type Stranded | ||
Capacitance ≤5.6nFnF/100m | ||
Cross Sectional Area 0.1645mm² | ||
Current Rating 2.8A | ||
Standards Met EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2 | ||
Cable Shape Round | ||
Outer Diameter 5.9mm | ||
Number of Strands 8 | ||
- COO (Country of Origin):
- CN
RS PRO Ethernet Cable, Cat6 LSZH
Features and Benefits
Cat6 standard provides improved performance over Cat5/5e for faster data transfer
LS0H (Low Smoke Zero Halogen) sheath reduces toxic smoke emissions in case of fire
Moulded snagless boot prevents cable damage during installation
24 AWG bare copper cores offer reliable conductivity and durability
3P Verified for Gigabit Ethernet ensures compliance with industry standards
Meets IEC 60332.3C, TIA/EIA-563-B.2, ISO/IEC 11801, and EN 50288 standards for quality assurance
PoE compatible for powering devices over Ethernet
Applications
Office networks
Home networking
Telecommunications
Additional Information
Length: 1 m
Connector Type: RJ45 Male to Male
