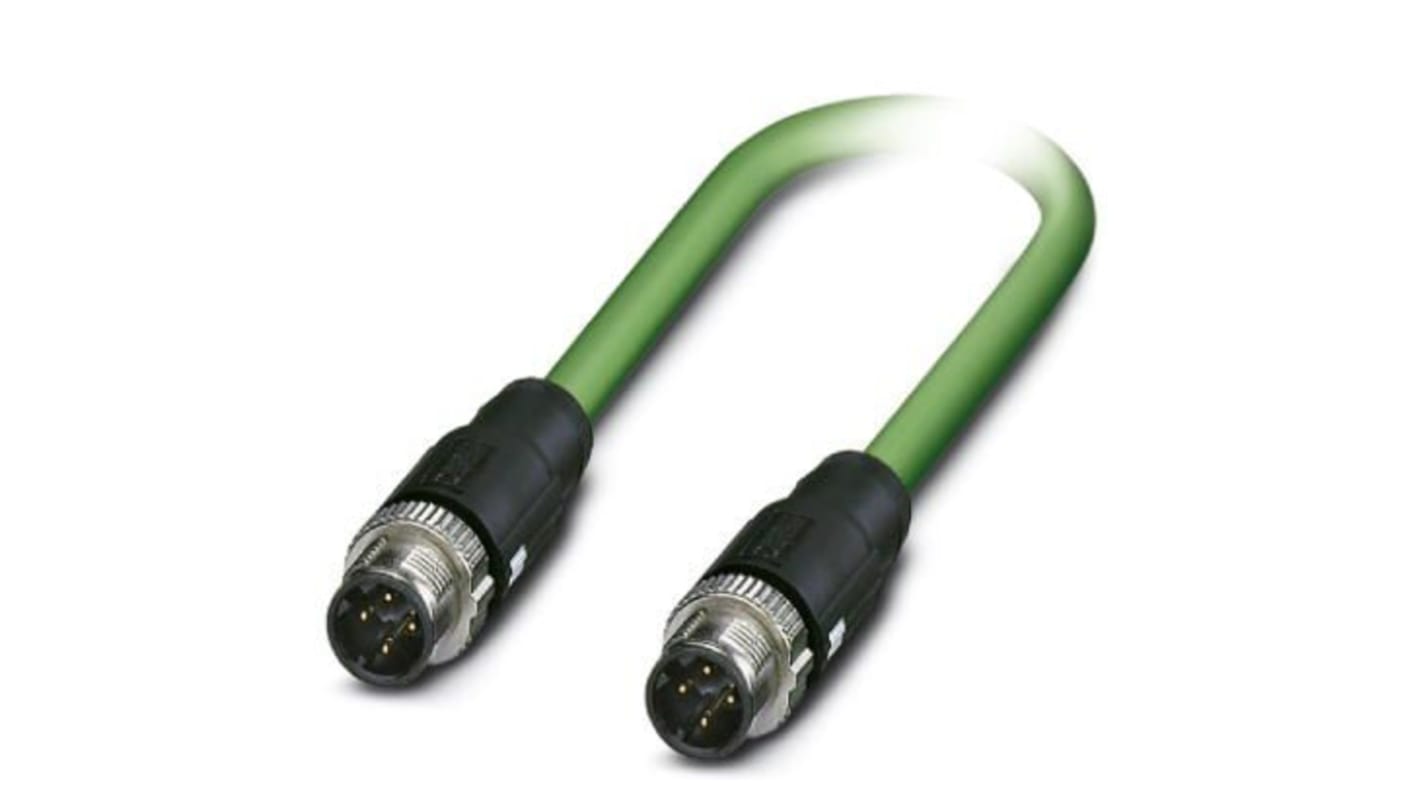

Phoenix Contact0-93B/M12MSD, NBC-M12MSD/ 2, 2m Cat5, Green M12 to Male M12 Male, Shielded Shielded, Terminated PVC

RS Stock No.:: 255-8671
Mfr. Part No.:: 1407525
Brand:: Phoenix Contact

Phoenix Contact0-93B/M12MSD, NBC-M12MSD/ 2, 2m Cat5, Green M12 to Male M12 Male, Shielded Shielded, Terminated PVC

Subtotal (1 unit)*

£46.59

(exc. VAT)

£55.91

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship
Plus 3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£46.59

*price indicative

RS Stock No.:: 255-8671
Mfr. Part No.:: 1407525
Brand:: Phoenix Contact

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Series	0-93B/M12MSD, NBC-M12MSD/ 2
	LAN Category	Cat5
	Length	2m
	Terminated/Unterminated	Terminated
	Shield Type	Shielded
	Connector 1 Orientation	Straight
	Connector 1 Gender	Male
	Connector 1	M12
	Connector 1 Number of Contacts	4
	Connector 2 Number of Contacts	4
	Connector 2 Gender	Male
	Connector 2	M12
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Shielded
	Coding	D
	Sheath Colour	Green
	Outer Sheath Material	PVC
	IP Rating	IP67
	Current Rating	4 A
	Voltage Rating	48 V ac, 60 V dc
	Standards Met	IEC 61076-2-101
	American Wire Gauge	22 AWG
	Cross Sectional Area	4x 0.34 mm²
	Outer Diameter	6.5mm

	Select all
	Brand Phoenix Contact
	Series 0-93B/M12MSD, NBC-M12MSD/ 2
	LAN Category Cat5
	Length 2m
	Terminated/Unterminated Terminated
	Shield Type Shielded
	Connector 1 Orientation Straight
	Connector 1 Gender Male
	Connector 1 M12
	Connector 1 Number of Contacts 4
	Connector 2 Number of Contacts 4
	Connector 2 Gender Male
	Connector 2 M12
	Connector 2 Orientation Straight
	Shielded/Unshielded Shielded
	Coding D
	Sheath Colour Green
	Outer Sheath Material PVC
	IP Rating IP67
	Current Rating 4 A
	Voltage Rating 48 V ac, 60 V dc
	Standards Met IEC 61076-2-101
	American Wire Gauge 22 AWG
	Cross Sectional Area 4x 0.34 mm²
	Outer Diameter 6.5mm

Datasheet - 1407525

COO (Country of Origin):: PL

Phoenix Contact NBC-M12MSD/ 2,0-93B/M12MSD Series Ethernet Cable, Cat5 LAN Category, 2m Length - 1407525

This industrial Ethernet cable is crafted for dependable networking in automation, electronics, and mechanical applications. At a length of 2m, it integrates easily into existing systems for swift data transmission. The cable features M12 connectors to ensure a secure fit and robust performance in challenging environments. Its IP67 rating indicates protection against dust and water, making it suitable for both indoor and outdoor installations.

Features & Benefits

• Shielded design minimises electromagnetic interference for stable connections
• Pre-terminated for immediate use and straightforward installation
• Rated for 48V ac and 60V dc for various power applications
• Complies with IEC 61076-2-101 for standardised connectivity
• Durable PVC sheath suitable for industrial settings
• Maintains a current rating of 4A for effective performance

Applications

• Utilised with machinery requiring high-speed data transfer
• Suitable for factory automation systems and networked devices
• Ideal for installations in harsh outdoor environments
• Used in robotics for consistent communication and control

What type of connectors does this cable have?

The cable features male M12 connectors on both ends for secure connections.

Can it be used outdoors?

Yes, the IP67 rating ensures it is water and dust resistant, making it suitable for outdoor applications.

What is the maximum current this cable can handle?

It has a current rating of 4A, ensuring efficient power delivery for connected devices.

Is the cable suitable for use in automation systems?

Yes, its Cat5 shielded design is appropriate for industrial automation.

What voltage ratings does it support?

It is rated for 48V ac and 60V dc, accommodating various power requirements.
