Belden1700A, 304m Cat5e, Grey, U/UTP Unshielded, Unterminated PVC Sheath
- RS Stock No.:
- 195-6336
- Mfr. Part No.:
- 1700A.00U305
- Brand:
- Belden
Subtotal (1 reel of 304 metres)*
£520.37
(exc. VAT)
£624.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £520.37 | £1.712 |
*price indicative
- RS Stock No.:
- 195-6336
- Mfr. Part No.:
- 1700A.00U305
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 1700A | |
| LAN Category | Cat5e | |
| Length | 304m | |
| Terminated/Unterminated | Unterminated | |
| Shield Type | U/UTP | |
| Shielded/Unshielded | Unshielded | |
| CPR Certification | Eca | |
| Outer Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Core Strands | 1/24 | |
| Standards Met | Category 5e - TIA 568.C.2, NEMA WC-63.1 Category 5e UL Verified to Category 5e | |
| Voltage Rating | 300 V | |
| American Wire Gauge | 24 AWG | |
| Number of Strands | 1 | |
| Cable Shape | Twisted Pair | |
| Capacitance | 15pF/ft | |
| Conductor Strand Type | Solid | |
| Cross Sectional Area | 0.2 mm² | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Series 1700A | ||
LAN Category Cat5e | ||
Length 304m | ||
Terminated/Unterminated Unterminated | ||
Shield Type U/UTP | ||
Shielded/Unshielded Unshielded | ||
CPR Certification Eca | ||
Outer Sheath Material PVC | ||
Sheath Colour Grey | ||
Core Strands 1/24 | ||
Standards Met Category 5e - TIA 568.C.2, NEMA WC-63.1 Category 5e UL Verified to Category 5e | ||
Voltage Rating 300 V | ||
American Wire Gauge 24 AWG | ||
Number of Strands 1 | ||
Cable Shape Twisted Pair | ||
Capacitance 15pF/ft | ||
Conductor Strand Type Solid | ||
Cross Sectional Area 0.2 mm² | ||
- COO (Country of Origin):
- HU

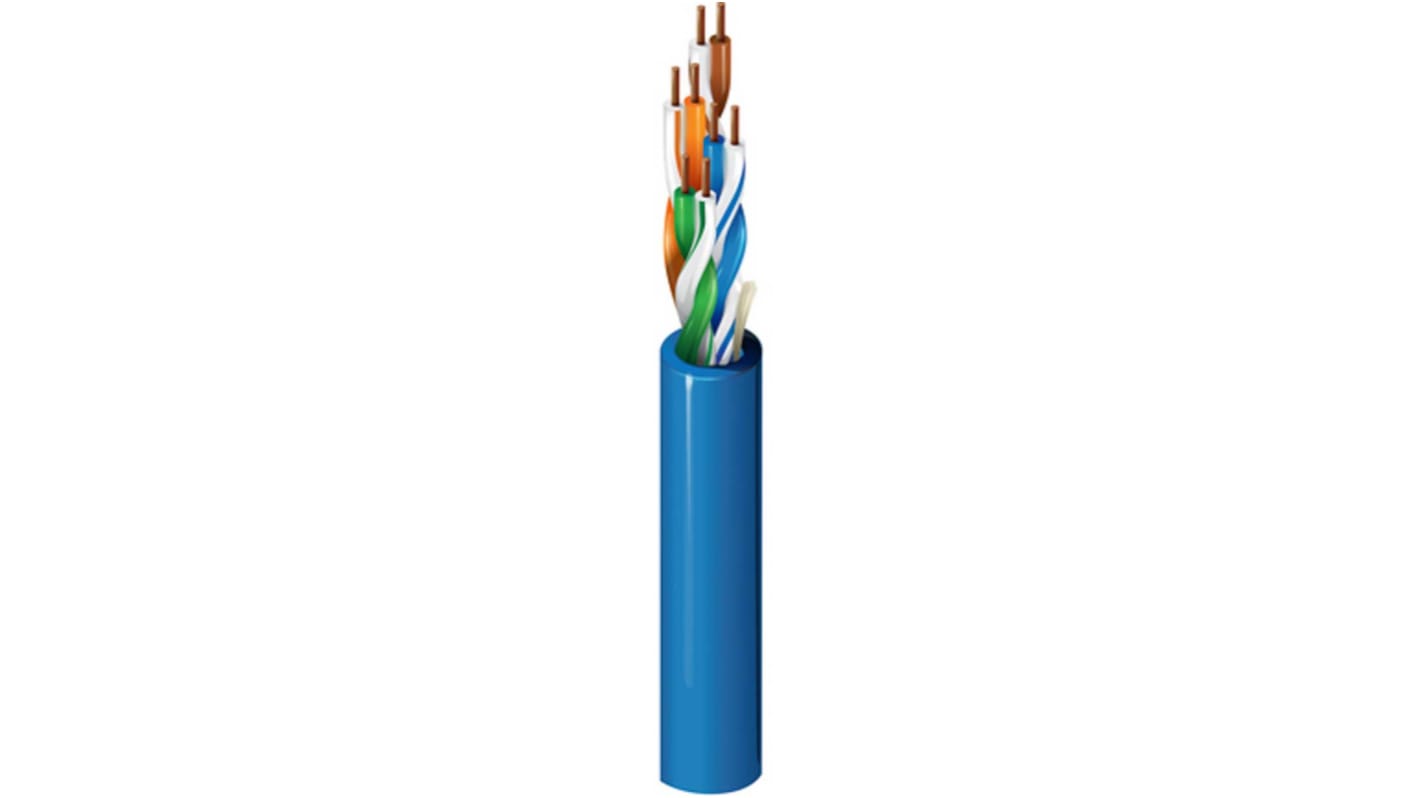

Belden Ethernet Cable, Shielded, 24AWG - 1700A.00U305
Need to get your computer setup talking to the internet? Add this Cat5e Ethernet cable from Belden. It's a riser-type cable designed to be installed in vertical spaces that don't see a lot of action. Its highly durable PVC sheath resists wear and tear, giving you long-lasting use with minimal maintenance. Thanks to a maximum delay of just 537.6ns per 100m, you can be sure of reliably fast connection speeds. Add this cable to an Ethernet 1000BASE-T, 100BASE-TX or 10BASE-T system to get your devices up and running.
Features & Benefits
• Suits installation in demanding applications, thanks to a wide -20°C to +75°C operating temperature range
• Copper conductor resists corrosion to keep signals clear, even in damp conditions
• Copper conductor resists corrosion to keep signals clear, even in damp conditions
Applications
• Commercial offices
• Data centres
• Telecommunication networks
• Data centres
• Telecommunication networks
What's Cat5e?
Cat5e is an Ethernet category. It means this cable handles speeds up to 1Gbps.
Standards
ISO/IEC 11801; EN 50173
