OmronXS5W, 10m Cat5e, Black M12 to Male RJ45 Male Shielded, Terminated PUR Sheath
- RS Stock No.:
- 144-6507
- Mfr. Part No.:
- XS5W-T421-JMC-K
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£125.85
(exc. VAT)
£151.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 6 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £125.85 |
| 5 - 9 | £121.06 |
| 10 - 19 | £117.03 |
| 20 - 49 | £115.90 |
| 50 + | £114.65 |
*price indicative
- RS Stock No.:
- 144-6507
- Mfr. Part No.:
- XS5W-T421-JMC-K
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Series | XS5W | |
| Length | 10m | |
| LAN Category | Cat5e | |
| Terminated/Unterminated | Terminated | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Male | |
| Connector 2 Gender | Male | |
| Connector 2 Number of Contacts | 4 | |
| Connector 2 | RJ45 | |
| Shielded/Unshielded | Shielded | |
| Outer Sheath Material | PUR | |
| Sheath Colour | Black | |
| IP Rating | IP20, IP67 | |
| Core Strands | 7/0.26 mm | |
| Fire Behaviour | Self-extinguishing | |
| Voltage Rating | 30 V | |
| Current Rating | 2.5 A | |
| Standards Met | IEC, UL 94 V-0, UL CM | |
| Cable Shape | Multicore | |
| Number of Strands | 7 | |
| Cross Sectional Area | 0.34 mm² | |
| American Wire Gauge | 22 AWG | |
| Outer Diameter | 6.5mm | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Series XS5W | ||
Length 10m | ||
LAN Category Cat5e | ||
Terminated/Unterminated Terminated | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Male | ||
Connector 2 Gender Male | ||
Connector 2 Number of Contacts 4 | ||
Connector 2 RJ45 | ||
Shielded/Unshielded Shielded | ||
Outer Sheath Material PUR | ||
Sheath Colour Black | ||
IP Rating IP20, IP67 | ||
Core Strands 7/0.26 mm | ||
Fire Behaviour Self-extinguishing | ||
Voltage Rating 30 V | ||
Current Rating 2.5 A | ||
Standards Met IEC, UL 94 V-0, UL CM | ||
Cable Shape Multicore | ||
Number of Strands 7 | ||
Cross Sectional Area 0.34 mm² | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 6.5mm | ||
- COO (Country of Origin):
- JP

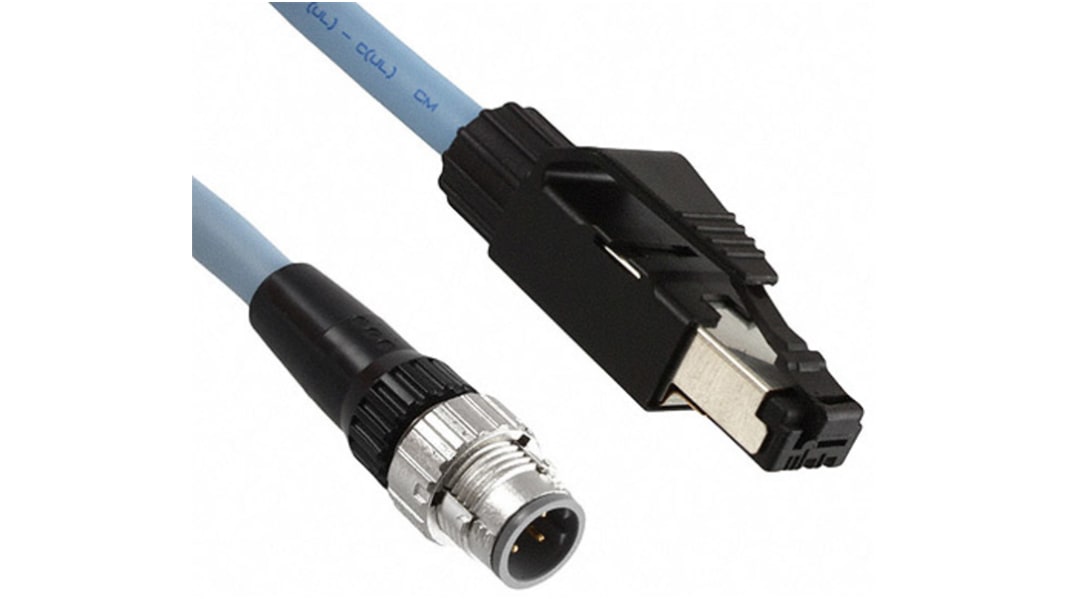

XS5W Series Cat5e Industrial RJ45 to M12 4 Pin Cable Assemblies
From Omron, a series of industrial grade PVC Cat5e cable assemblies. The patch cables have standard RJ45 plug going to M12 4-pin Smart Click plug and are ideally suited to out of cabinet applications. Constructed from 6.5 mm OD 4-pair 22 AWG cable featuring double shielding with overall braiding and individual foil shields on each pair to reduce EMC interference. Available with a light blue PVC jacket in various lengths.
Features and benefits
Cat5e Performance
PVC cable
Overall braiding
Individual foil shielding on each pair
Reduces EMC interference
Ideal for out of panel applications
IP20
PVC cable
Overall braiding
Individual foil shielding on each pair
Reduces EMC interference
Ideal for out of panel applications
IP20
Applications
PCs
Network equipment
Servers
Data centres
Industrial automation
Robotics
Network equipment
Servers
Data centres
Industrial automation
Robotics
