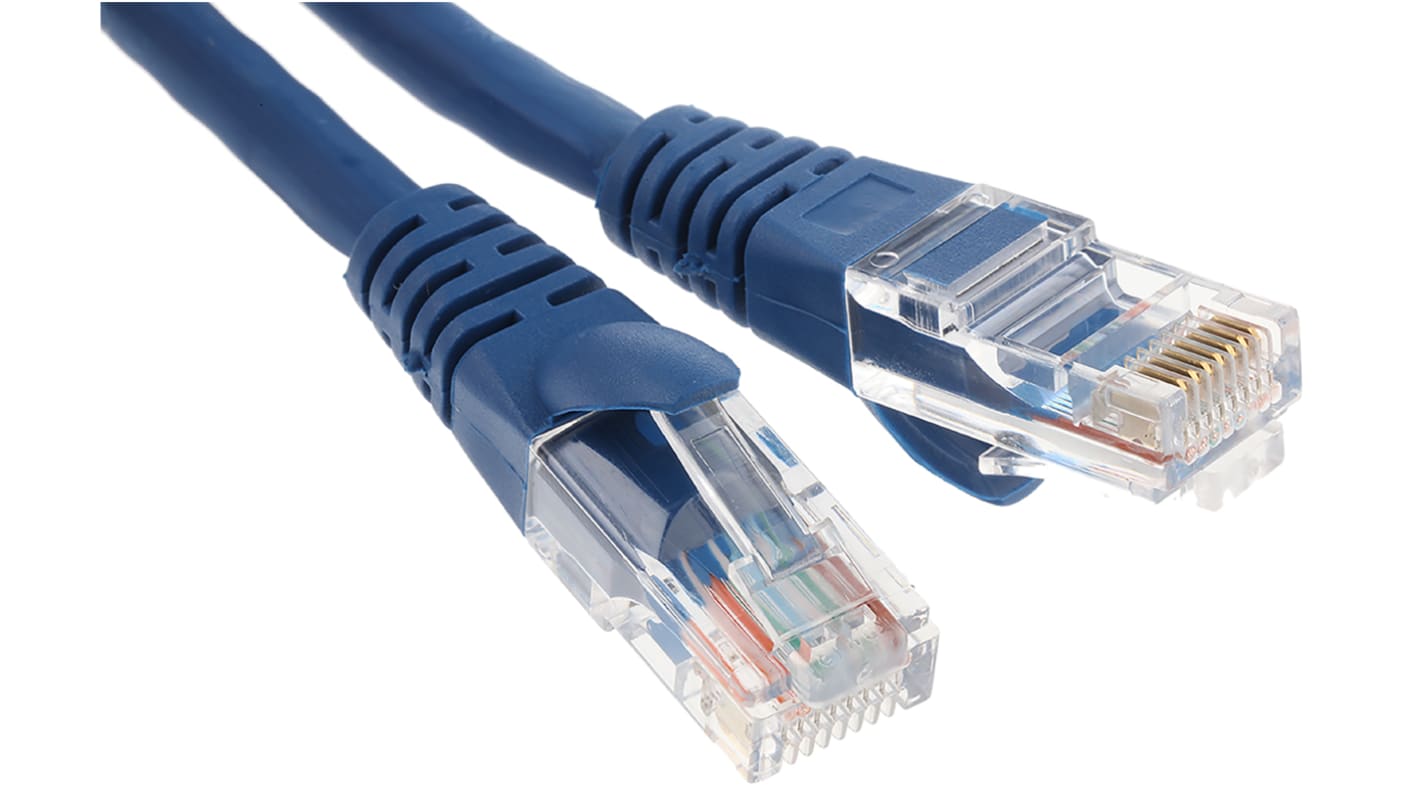

RS PRO, 0.5m Cat5e, Blue RJ45 to Male RJ45 Male, U/UTP Unshielded, Terminated LSZH Sheath
- RS Stock No.:
- 556-465
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£3.23
(exc. VAT)
£3.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 189 unit(s) ready to ship
- Plus 34 unit(s) ready to ship from another location
- Plus 250 unit(s) shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £3.23 |
| 15 - 49 | £3.10 |
| 50 + | £2.89 |
*price indicative
- RS Stock No.:
- 556-465
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Length | 0.5m | |
| LAN Category | Cat5e | |
| Terminated/Unterminated | Terminated | |
| Shield Type | U/UTP | |
| Connector 1 | RJ45 | |
| Connector 1 Number of Contacts | 8 | |
| Connector 1 Gender | Male | |
| Connector 2 | RJ45 | |
| Connector 2 Gender | Male | |
| Shielded/Unshielded | Unshielded | |
| Outer Sheath Material | LSZH | |
| Sheath Colour | Blue | |
| Wiring Configuration | Straight Through | |
| Outer Diameter | 5.5mm | |
| American Wire Gauge | 24AWG | |
| Voltage Rating | 30v | |
| Standards Met | EC 1907/2006, IEC 61935-2, ISO/IEC 11801 2nd Edition, RoHS Compliant | |
| Cross Sectional Area | 23.76mm² | |
| Cable Shape | Round | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Length 0.5m | ||
LAN Category Cat5e | ||
Terminated/Unterminated Terminated | ||
Shield Type U/UTP | ||
Connector 1 RJ45 | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Gender Male | ||
Connector 2 RJ45 | ||
Connector 2 Gender Male | ||
Shielded/Unshielded Unshielded | ||
Outer Sheath Material LSZH | ||
Sheath Colour Blue | ||
Wiring Configuration Straight Through | ||
Outer Diameter 5.5mm | ||
American Wire Gauge 24AWG | ||
Voltage Rating 30v | ||
Standards Met EC 1907/2006, IEC 61935-2, ISO/IEC 11801 2nd Edition, RoHS Compliant | ||
Cross Sectional Area 23.76mm² | ||
Cable Shape Round | ||
- COO (Country of Origin):
- CN
Cat 5e LSZH Patch Leads
Manufactured from Category 5e stranded cable and terminated with high grade modular plugs, Booted strain relief gives cable support and latch protection, LSZH outer sheath material
Manufactured from Category 5e stranded cable and terminated with high grade modular plugs, Booted strain relief gives cable support and latch protection, LSZH outer sheath material
