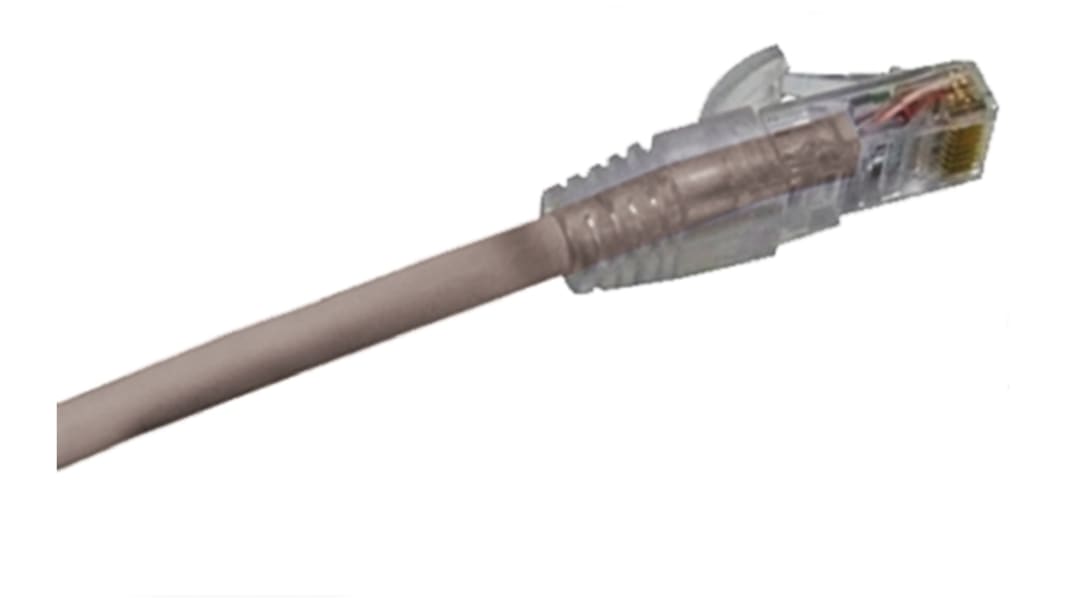

Molex CES PCD Cat6 Ethernet Cable, Unshielded Unshielded, 1 m, Grey PVC
- RS Stock No.:
- 273-362
- Mfr. Part No.:
- PCD-02001-0E
- Brand:
- Molex CES
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£5.83
(exc. VAT)
£7.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 30 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £5.83 |
| 15 - 49 | £5.53 |
| 50 + | £5.25 |
*price indicative
- RS Stock No.:
- 273-362
- Mfr. Part No.:
- PCD-02001-0E
- Brand:
- Molex CES
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex CES | |
| Series | PCD | |
| Product Type | Ethernet Cable | |
| Cable Length | 1m | |
| LAN Category | Cat6 | |
| Terminated/Unterminated | Terminated | |
| Shield Type | Unshielded | |
| Screened/Unscreened | Unshielded | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS, CSA C2.2, TIA-568-C.2 Cat 6, UL-1863, ETL, ISO/IEC 11801:2002/Amd 2:2010 Cat 6- | |
| Fire Behaviour | CSA FT1, IEC 61034, IEC 60332-1 | |
| Voltage | 150V | |
| Outside Diameter | 5.9mm | |
| Conductor Material | Wire, 24 AWG Stranded Copper Wire | |
| Number of Cores | 4 | |
| Select all | ||
|---|---|---|
Brand Molex CES | ||
Series PCD | ||
Product Type Ethernet Cable | ||
Cable Length 1m | ||
LAN Category Cat6 | ||
Terminated/Unterminated Terminated | ||
Shield Type Unshielded | ||
Screened/Unscreened Unshielded | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS, CSA C2.2, TIA-568-C.2 Cat 6, UL-1863, ETL, ISO/IEC 11801:2002/Amd 2:2010 Cat 6- | ||
Fire Behaviour CSA FT1, IEC 61034, IEC 60332-1 | ||
Voltage 150V | ||
Outside Diameter 5.9mm | ||
Conductor Material Wire, 24 AWG Stranded Copper Wire | ||
Number of Cores 4 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
PowerCat Cat 6 Patch Leads
Providing an effective solution to the problem of patch cord congestion in high density 1U active equipment, these slim boot patch cords provide an anti-snag latch protection ideal for patching hubs/switches.
Slim boot design
Suitable for high density active equipment with limited space between individual RJ45 jacks
Suitable for EIA 568A/B applications
Approvals
UL, CSA
