KEMET Carbon Dioxide Air Quality Sensor for Breath Actuated Dispenser, Office, Safety, HVAC, Environmental Monitoring,
- RS Stock No.:
- 206-6595
- Mfr. Part No.:
- USEQGCDAC82M00
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£61.83
(exc. VAT)
£74.20
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £61.83 |
| 5 - 9 | £59.85 |
| 10 - 24 | £58.00 |
| 25 + | £53.85 |
*price indicative
- RS Stock No.:
- 206-6595
- Mfr. Part No.:
- USEQGCDAC82M00
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Air Quality Sensor | |
| Gases Detected | Carbon Dioxide | |
| Response Time | 12ms | |
| Application | Breath Actuated Dispenser, Office, Safety, HVAC, Environmental Monitoring, Breath Rate Measurement, Automotive Cabin Air Quality, Gas, Building Technology, Medical Capnography, Exhaust, Gas Flue, Car, Industrial Process, Pollution Air Quality In Home, Home, Anaesthesia | |
| Sub Type | Sensor | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 8V | |
| Power Source | Mains | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Package Type | TO-39 | |
| Maximum Operating Temperature | 85°C | |
| Length | 19.5mm | |
| Height | 9.15mm | |
| Standards/Approvals | No | |
| Series | QGC | |
| Weight | 0.97g | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Air Quality Sensor | ||
Gases Detected Carbon Dioxide | ||
Response Time 12ms | ||
Application Breath Actuated Dispenser, Office, Safety, HVAC, Environmental Monitoring, Breath Rate Measurement, Automotive Cabin Air Quality, Gas, Building Technology, Medical Capnography, Exhaust, Gas Flue, Car, Industrial Process, Pollution Air Quality In Home, Home, Anaesthesia | ||
Sub Type Sensor | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 8V | ||
Power Source Mains | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Package Type TO-39 | ||
Maximum Operating Temperature 85°C | ||
Length 19.5mm | ||
Height 9.15mm | ||
Standards/Approvals No | ||
Series QGC | ||
Weight 0.97g | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY

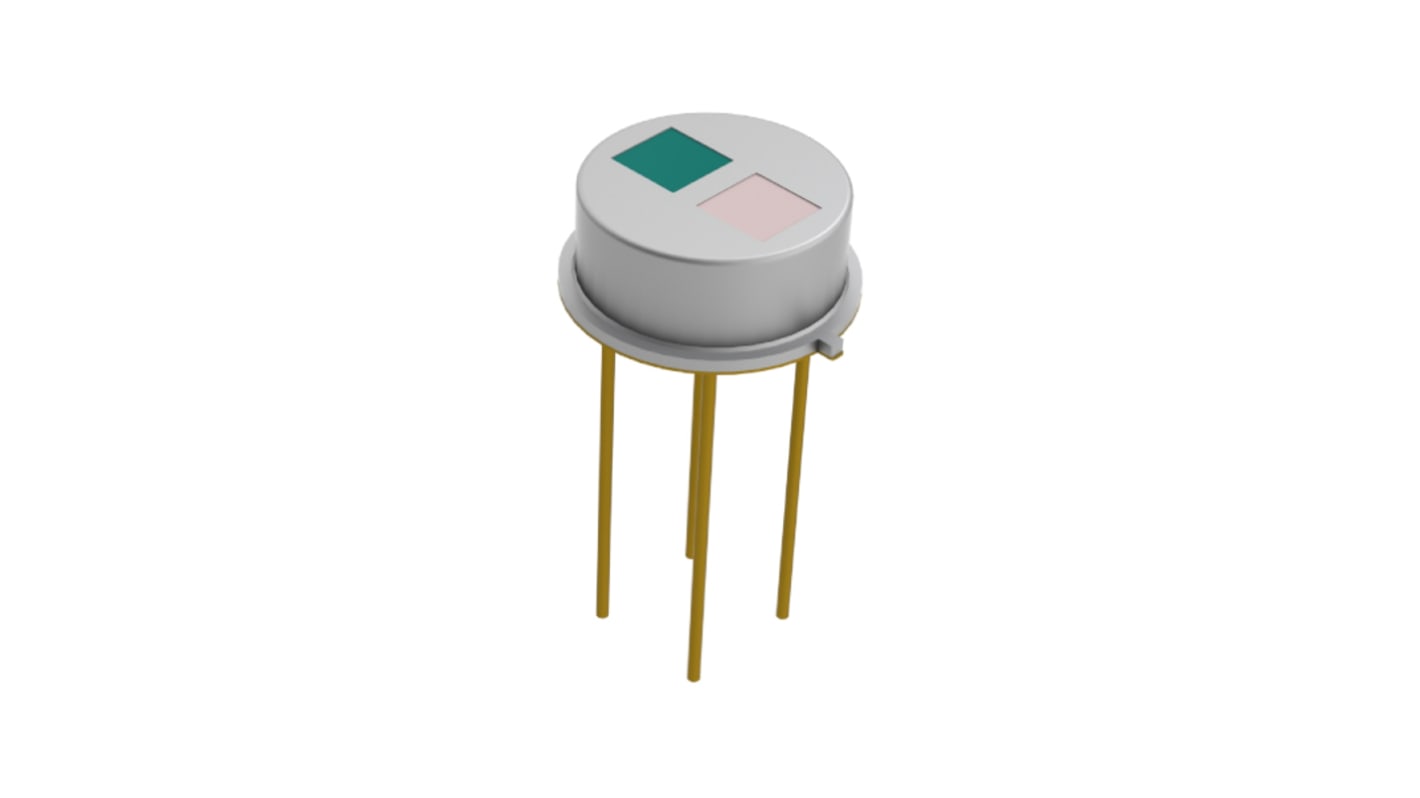

The KEMET QGC thin film pyroelectric gas sensors have reduced physical size but still provide high sensitivity with fast frequency operation. It employs a highly stable dual sensor in a TO39 package. It also has an internal CMOS operational amplifier with a 10 GO feedback resistor outputting a voltage signal centred around half the supply rail.
Reliable operation over a wide frequency range
Low noise circuit
Analogue output
