KEMET USEQGCDAC82M00 Carbon Dioxide Air Quality Sensor for Breath Actuated Dispenser, Office, Safety, HVAC,
- RS Stock No.:
- 206-6594
- Mfr. Part No.:
- USEQGCDAC82M00
- Brand:
- KEMET
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 206-6594
- Mfr. Part No.:
- USEQGCDAC82M00
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Gases Detected | Carbon Dioxide | |
| Product Type | Air Quality Sensor | |
| Response Time | 12ms | |
| Application | Breath Actuated Dispenser, Office, Safety, HVAC, Environmental Monitoring, Breath Rate Measurement, Automotive Cabin Air Quality, Gas, Building Technology, Medical Capnography, Exhaust, Gas Flue, Car, Industrial Process, Pollution Air Quality In Home, Home, Anaesthesia | |
| Sub Type | Sensor | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 8V | |
| Power Source | Mains | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 3 | |
| Package Type | TO-39 | |
| Maximum Operating Temperature | 85°C | |
| Length | 19.5mm | |
| Height | 9.15mm | |
| Standards/Approvals | No | |
| Series | QGC | |
| Weight | 0.97g | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Gases Detected Carbon Dioxide | ||
Product Type Air Quality Sensor | ||
Response Time 12ms | ||
Application Breath Actuated Dispenser, Office, Safety, HVAC, Environmental Monitoring, Breath Rate Measurement, Automotive Cabin Air Quality, Gas, Building Technology, Medical Capnography, Exhaust, Gas Flue, Car, Industrial Process, Pollution Air Quality In Home, Home, Anaesthesia | ||
Sub Type Sensor | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 8V | ||
Power Source Mains | ||
Minimum Operating Temperature -40°C | ||
Pin Count 3 | ||
Package Type TO-39 | ||
Maximum Operating Temperature 85°C | ||
Length 19.5mm | ||
Height 9.15mm | ||
Standards/Approvals No | ||
Series QGC | ||
Weight 0.97g | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY

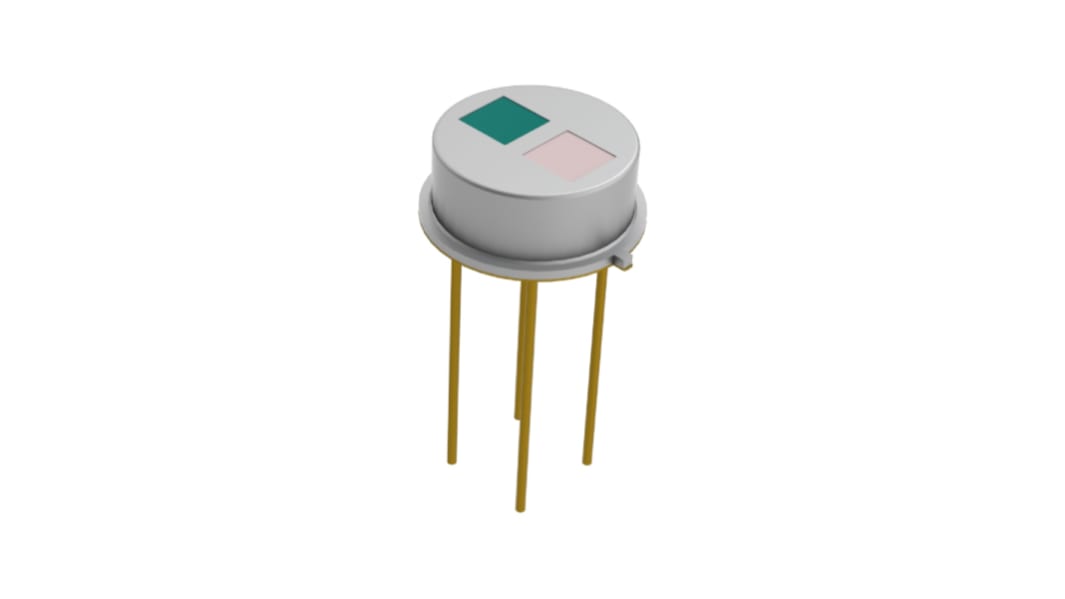

The KEMET QGC thin film pyroelectric gas sensors have reduced physical size but still provide high sensitivity with fast frequency operation. It employs a highly stable dual sensor in a TO39 package. It also has an internal CMOS operational amplifier with a 10 GO feedback resistor outputting a voltage signal centred around half the supply rail.
Reliable operation over a wide frequency range
Low noise circuit
Analogue output
