Figaro LPM2610-D09, Butane, Propane Air Quality Sensor
- RS Stock No.:
- 134-6657
- Mfr. Part No.:
- LPM2610-D09
- Brand:
- Figaro
Subtotal (1 unit)*
£28.68
(exc. VAT)
£34.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 103 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £28.68 |
*price indicative
- RS Stock No.:
- 134-6657
- Mfr. Part No.:
- LPM2610-D09
- Brand:
- Figaro
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Figaro | |
Gases Detected | Butane, Propane | |
Sensor Type | Gas Sensors | |
Dimensions | 27 x 12.5 x 14.1mm | |
Weight | 2.8g | |
Minimum Operating Temperature | 0 °C | |
Maximum Operating Temperature | +40 °C | |
Select all | ||
---|---|---|
Brand Figaro | ||
Gases Detected Butane, Propane | ||
Sensor Type Gas Sensors | ||
Dimensions 27 x 12.5 x 14.1mm | ||
Weight 2.8g | ||
Minimum Operating Temperature 0 °C | ||
Maximum Operating Temperature +40 °C | ||

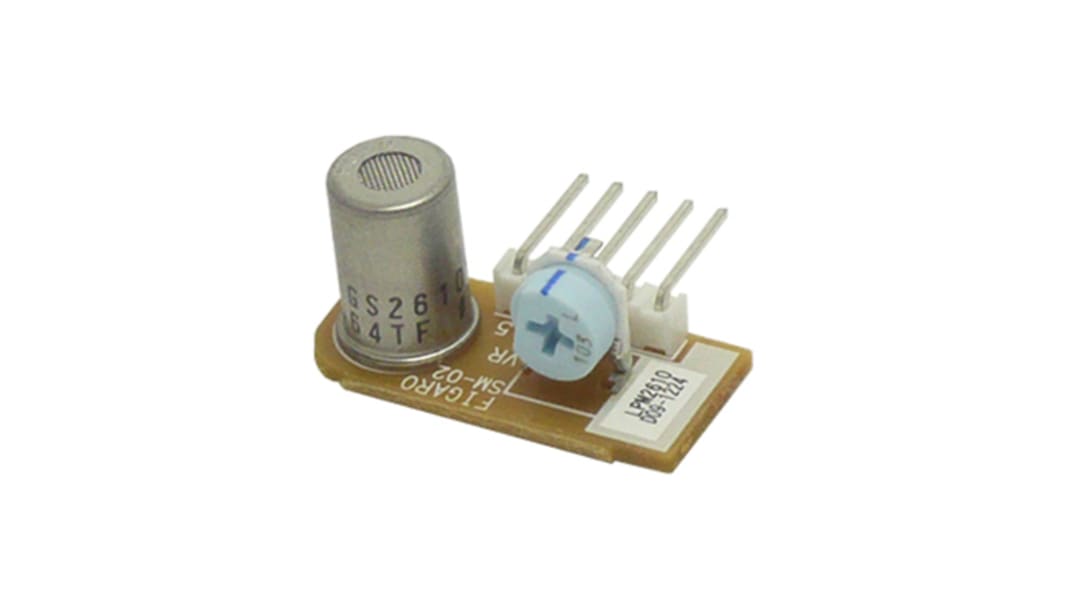

LPM2610-D09 LP Gas Sensor Module
The LPM2610 from Figaro is a pre-calibrated sensor module for LP (liquefied petroleum) gas alarms which has been accurately calibrated in Figaros temperature and humidity controlled facility. The module uses the TGS2610-D00 gas sensor which incorporates a filter to reduce the influence of interference gases such as alcohol, resulting in highly selective response to LP gas. A temperature compensation circuit with a built-in thermistor and individually adjusted load resistor are also incorporated in the module, which is designed to meet the performance requirements of EN50194 and UL1484.
Factory calibrated
Temperature compensation circuit
5V operating voltage
Compact module size
Meets RoHS regulations
Temperature compensation circuit
5V operating voltage
Compact module size
Meets RoHS regulations
PCB Mounted Gas Sensors
Operating conditions in which Sensors are used will vary with each customer's application. Gas and oxygen sensors are not authorised for use as critical components in life support applications wherein a failure or malfunction of the products may result in injury or threat to life. Non-calibrated PCB gas sensors will not operate properly if not calibrated prior to usage.
Semiconductor gas sensors for gas detection, air quality control, HVAC, appliance and automotive industries. Characteristics of the products in this range are small size, low cost, long life, low power consumption and no maintenance requirement
