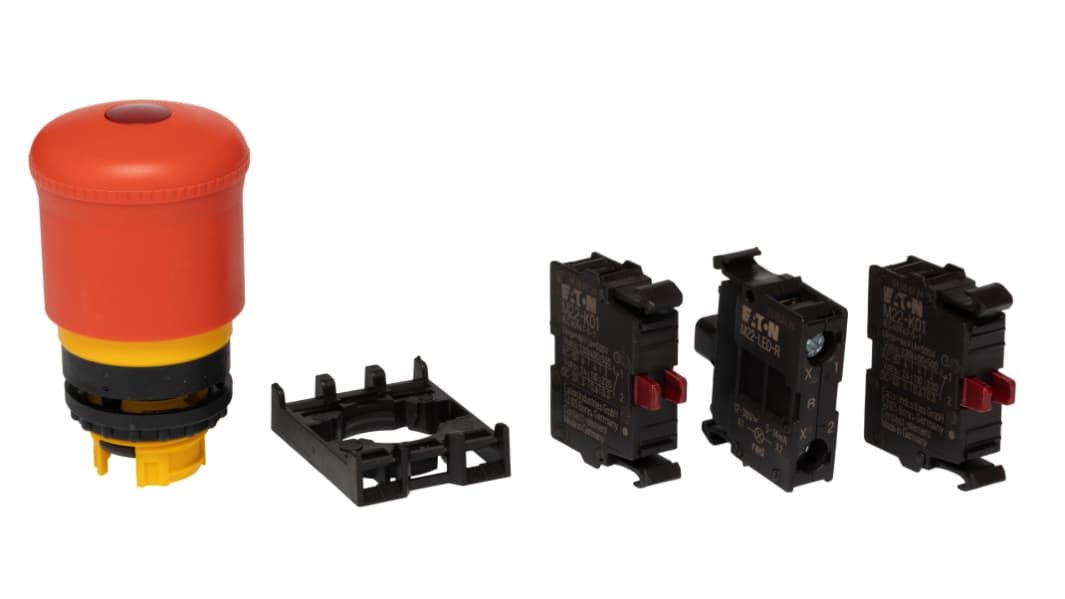

Eaton M22 Series Pull Release Illuminated Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC, IP67, IP69K
- RS Stock No.:
- 866-1451
- Mfr. Part No.:
- 73000194 M22-PVL-K02-R
- Brand:
- Eaton
Subtotal (1 unit)*
£71.46
(exc. VAT)
£85.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 17 unit(s) shipping from 11 November 2025
- Plus 41 unit(s) shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £71.46 |
*price indicative
- RS Stock No.:
- 866-1451
- Mfr. Part No.:
- 73000194 M22-PVL-K02-R
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Mounting Type | Panel Mount | |
| Cutout Diameter | 22mm | |
| Contact Configuration | 2NC | |
| Push Button Actuation | Pull Release | |
| Voltage Rating | 12 → 30V ac/dc | |
| Series | M22 | |
| Illuminated | Yes | |
| IP Rating | IP67, IP69K | |
| Colour | Red | |
| Push Button Shape | Round | |
| Depth | 50.8mm | |
| Width | 101.6mm | |
| Switch Operation | Maintained | |
| Height | 152.4mm | |
| Push Button Material | Plastic | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Mounting Type Panel Mount | ||
Cutout Diameter 22mm | ||
Contact Configuration 2NC | ||
Push Button Actuation Pull Release | ||
Voltage Rating 12 → 30V ac/dc | ||
Series M22 | ||
Illuminated Yes | ||
IP Rating IP67, IP69K | ||
Colour Red | ||
Push Button Shape Round | ||
Depth 50.8mm | ||
Width 101.6mm | ||
Switch Operation Maintained | ||
Height 152.4mm | ||
Push Button Material Plastic | ||
Eaton M22 Series Emergency Stop Push Button, 2NC, 12 to 30V AC/DC - 73000194 M22-PVL-K02-R
This Eaton premium emergency stop push button is designed for safe machinery control, featuring a panel mount design with a 22mm cutout diameter. It operates at 12 to 30V AC/DC, ensuring effective performance in emergency situations.
Features & Benefits
• Pull release actuation for quick emergency response
• Rounded shape for easy operation
• 2NC contact configuration for added safety
• Robust plastic material for durability
• Rounded shape for easy operation
• 2NC contact configuration for added safety
• Robust plastic material for durability
Applications
• Factory automation
• Food and beverage processing
• Pharmaceutical manufacturing
• Rail and transport safety systems
• Mining and quarrying machinery
• Food and beverage processing
• Pharmaceutical manufacturing
• Rail and transport safety systems
• Mining and quarrying machinery
Can it operate in harsh environmental conditions?
Yes, it features IP67 and IP69K ratings for robustness.
Will it provide a clear visual alert?
Yes, it has an illuminated push-button feature for enhanced visibility.
Is it suitable for panel mounting?
Yes, it is designed for panel mount applications.
Can it be integrated with other safety equipment?
Yes, it works effectively with safety relays and interlock switches.
Note
Eaton formerly known as Moeller
