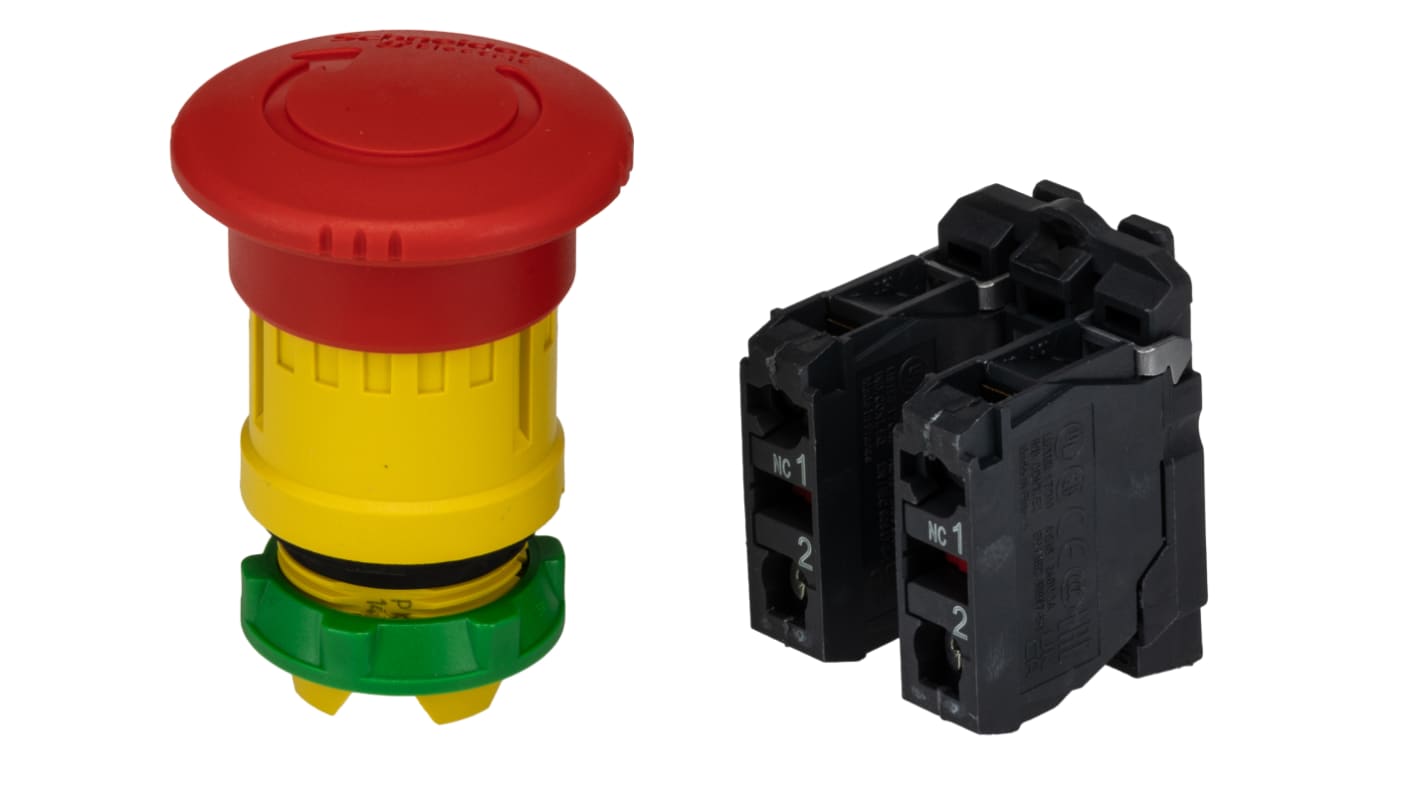

Schneider Electric Harmony Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC, IP66, IP67,
- RS Stock No.:
- 123-8167
- Distrelec Article No.:
- 302-15-565
- Mfr. Part No.:
- XB5AS8444
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£33.84
(exc. VAT)
£40.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 712 unit(s) ready to ship
- Plus 74 unit(s) ready to ship from another location
- Plus 397 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £33.84 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 123-8167
- Distrelec Article No.:
- 302-15-565
- Mfr. Part No.:
- XB5AS8444
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Mounting Type | Panel Mount | |
| Cutout Diameter | 22mm | |
| Better World Product | Yes | |
| Contact Configuration | 2NC | |
| Push Button Actuation | Twist Release | |
| Voltage Rating | 600V ac/dc | |
| Series | Harmony | |
| Illuminated | No | |
| IP Rating | IP66, IP67, IP69(IP69K) | |
| Colour | Red | |
| Push Button Shape | mushroom | |
| Supply Current | 1.2A | |
| Depth | 82mm | |
| Better World Verification | Green Premium | |
| Width | 40mm | |
| Push Button Diameter | 40mm | |
| Switch Operation | Slow Brake | |
| Height | 43mm | |
| Push Button Material | Plastic | |
| Bezel Material | Plastic | |
| Pole and Throw Configuration | 2P | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Mounting Type Panel Mount | ||
Cutout Diameter 22mm | ||
Better World Product Yes | ||
Contact Configuration 2NC | ||
Push Button Actuation Twist Release | ||
Voltage Rating 600V ac/dc | ||
Series Harmony | ||
Illuminated No | ||
IP Rating IP66, IP67, IP69(IP69K) | ||
Colour Red | ||
Push Button Shape mushroom | ||
Supply Current 1.2A | ||
Depth 82mm | ||
Better World Verification Green Premium | ||
Width 40mm | ||
Push Button Diameter 40mm | ||
Switch Operation Slow Brake | ||
Height 43mm | ||
Push Button Material Plastic | ||
Bezel Material Plastic | ||
Pole and Throw Configuration 2P | ||
Schneider Electric XB5 Series Emergency Stop Push Button, 22mm Cutout Diameter, 600V AC/DC Voltage Rating - XB5AS8444
This emergency stop push button is a vital component for ensuring industrial safety and operational control. Designed for panel mounting, it features a diameter of 22mm, a striking red mushroom head measuring 40mm, and operates through a twist release mechanism. The product adheres to high-performance standards and operates safely up to 600V AC/DC, making it suitable for a range of industrial applications.
Features & Benefits
• Provides a reliable and effective emergency stop function
• IP66, IP67, and IP69K ratings ensure robust environmental protection
• Twist release mechanism enhances operational safety
• Mechanical durability of 300,000 cycles supports long-term use
• Compatible with screw clamp terminals for easy installation
• Designed with a slow-break contact configuration for safer operation
• IP66, IP67, and IP69K ratings ensure robust environmental protection
• Twist release mechanism enhances operational safety
• Mechanical durability of 300,000 cycles supports long-term use
• Compatible with screw clamp terminals for easy installation
• Designed with a slow-break contact configuration for safer operation
Applications
• Suitable for use in control panels within automation systems
• Employed in machinery requiring quick shutdown capabilities
• Utilised in environments where hazardous conditions may arise
• Ideal for installations in manufacturing and processing industries
• Employed in machinery requiring quick shutdown capabilities
• Utilised in environments where hazardous conditions may arise
• Ideal for installations in manufacturing and processing industries
How does the twist release mechanism enhance safety in operations?
The twist release mechanism ensures that accidental activation is minimised and provides a clear indication of the button's status, thus improving overall operational safety and reducing the chance of unintentional stops.
What are the environmental protections offered by this product?
The robust IP66, IP67, and IP69K ratings protect against dust and high-pressure water, making it suitable for harsh industrial environments where moisture and contaminants are present.
What type of terminals does it have for connections?
It features screw clamp terminals, accommodating cable sizes from 0.22 mm² to 1.5 mm², allowing for secure and versatile connections in various setups.
What is the electrical durability rating associated with this model?
The emergency stop push button is rated for up to one million electrical cycles under specific load conditions, providing longevity and reliability in its performance.
What are the dimensions of the emergency stop push button?
The push button has a height of 43mm, a width of 40mm, and a depth of 82mm, making it compact yet robust for panel mounting in different applications.
