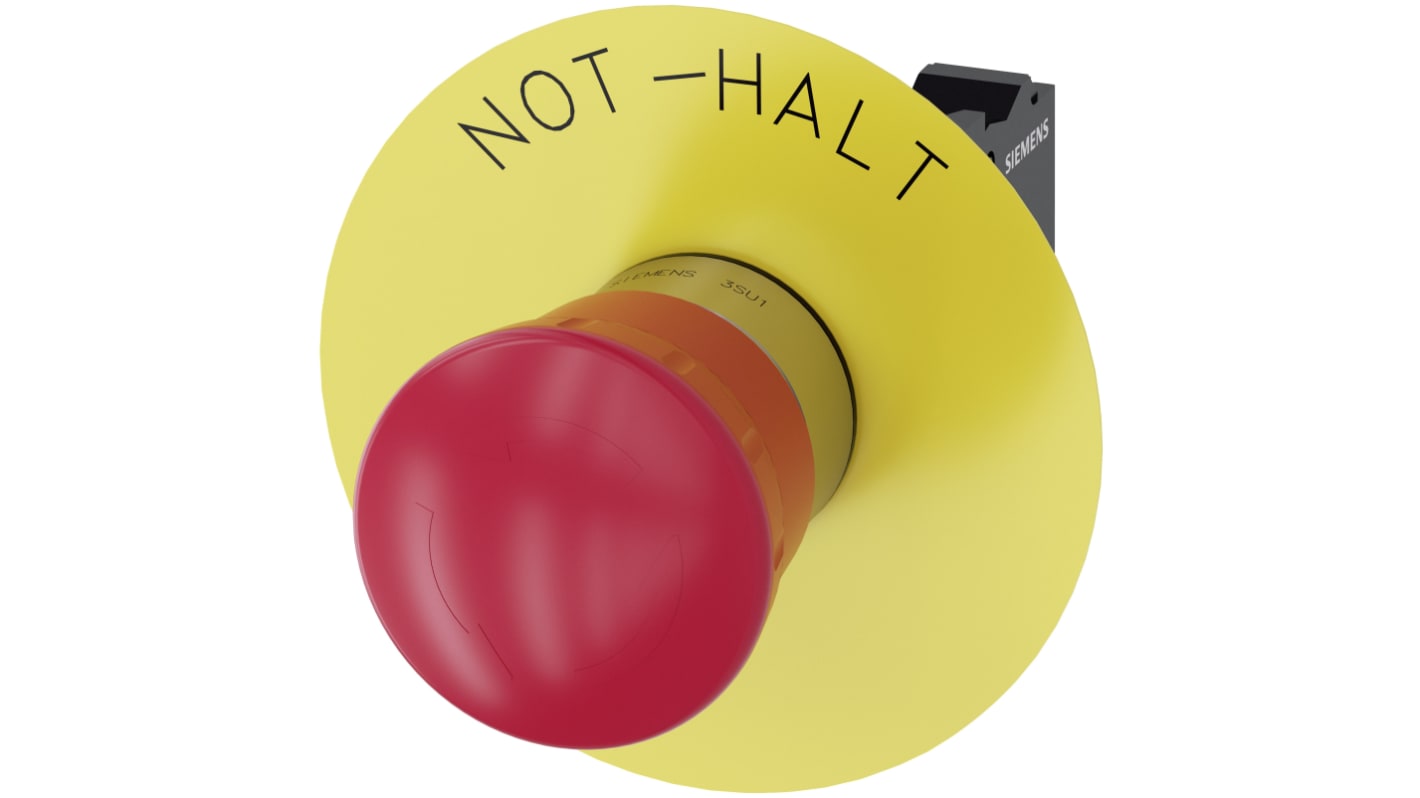

Siemens SIRIUS ACT 3SU11 Series Twist Release Emergency Stop Push Button, Panel Mount, 22 mm Cutout, 2 NC, IP67, IP66,
- RS Stock No.:
- 193-3798
- Mfr. Part No.:
- 3SU1150-1HB20-3PH0
- Brand:
- Siemens
Subtotal (1 unit)*
£44.51
(exc. VAT)
£53.41
(inc. VAT)
FREE delivery for orders over £60.00
- 1 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £44.51 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 193-3798
- Mfr. Part No.:
- 3SU1150-1HB20-3PH0
- Brand:
- Siemens
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Mount Type | Panel Mount | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 22mm | |
| Contact Configuration | 2 NC | |
| Housing Material | Metal | |
| Push Button Actuation | Twist Release | |
| Series | SIRIUS ACT 3SU11 | |
| IP Rating | IP67, IP66, IP69 | |
| Colour | Red | |
| Terminal Type | Spring Terminal | |
| Contact DC Voltage | 500V dc | |
| Number of Auxiliary Contacts | 2 | |
| Contact Current | 10A | |
| Head Style | Mushroom Shaped | |
| Contact AC Voltage | 500V ac | |
| Depth | 48.6mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | IEC 61508, EN ISO 13850, IEC 60068-2-6, IEC 60068-2-27, IEC 81346-2 | |
| Head Diameter | 40mm | |
| Length | 40mm | |
| Width | 30mm | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Low Carbon Manufacture | |
| Push Button Material | Plastic | |
| Safety Contacts | 2 NC | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Mount Type Panel Mount | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 22mm | ||
Contact Configuration 2 NC | ||
Housing Material Metal | ||
Push Button Actuation Twist Release | ||
Series SIRIUS ACT 3SU11 | ||
IP Rating IP67, IP66, IP69 | ||
Colour Red | ||
Terminal Type Spring Terminal | ||
Contact DC Voltage 500V dc | ||
Number of Auxiliary Contacts 2 | ||
Contact Current 10A | ||
Head Style Mushroom Shaped | ||
Contact AC Voltage 500V ac | ||
Depth 48.6mm | ||
Hazardous Area Certification No | ||
Standards/Approvals IEC 61508, EN ISO 13850, IEC 60068-2-6, IEC 60068-2-27, IEC 81346-2 | ||
Head Diameter 40mm | ||
Length 40mm | ||
Width 30mm | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Low Carbon Manufacture | ||
Push Button Material Plastic | ||
Safety Contacts 2 NC | ||
- COO (Country of Origin):
- DE
Siemens SIRIUS ACT 3SU11 Series Emergency Stop Push Button, 22mm Cutout Diameter, Red - 3SU1150-1HB20-3PH0
Features and Benefits:
• Two NC auxiliary contacts ensure positive opening safety
• IP66, IP67, IP69 protection allows washdown and outdoor use
• Twist‑release mechanism enables quick manual reset
• Spring‑type terminals permit 2 x 0.25 to 1.5mm² conductor connections
Applications
• Used with control panels requiring panel‑mount safety devices
• Ideal for environments needing washdown‑capable safety switches
• Can be used where positive opening for safety circuits is required
What operating voltages does it accept?
How many switching cycles can be expected mechanically?
What conductor types are supported at the terminals?
Is the device rated for vibration and shock?
