Clifford & Snell YA50 Series Wall Mount Electronic Sounder, 24 V dc, 112dB at 1 m, IP66, DC, 32-Tone
- RS Stock No.:
- 197-4618
- Mfr. Part No.:
- YA50/D/RF/WR
- Brand:
- Clifford & Snell
Subtotal (1 unit)*
£118.73
(exc. VAT)
£142.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £118.73 |
*price indicative
- RS Stock No.:
- 197-4618
- Mfr. Part No.:
- YA50/D/RF/WR
- Brand:
- Clifford & Snell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Clifford & Snell | |
Supply Voltage | 24 V dc | |
IP Rating | IP66 | |
Decibels at 1 Metre | 112dB | |
Current Type | DC | |
Number Of Tones | 32 | |
Housing Colour | Orange | |
Mounting Style | Wall Mount | |
Application Type | Sounder | |
Maximum Decibel | 112dB | |
Series | YA50 | |
Base Length | 153mm | |
Minimum Temperature | -35°C | |
Base Width | 127mm | |
Housing Material | ABS FR UL95 5VB | |
Maximum Temperature | +70°C | |
Standards Met | CE Certified EN54-3 UKCA | |
Tone Type | Signal | |
Select all | ||
---|---|---|
Brand Clifford & Snell | ||
Supply Voltage 24 V dc | ||
IP Rating IP66 | ||
Decibels at 1 Metre 112dB | ||
Current Type DC | ||
Number Of Tones 32 | ||
Housing Colour Orange | ||
Mounting Style Wall Mount | ||
Application Type Sounder | ||
Maximum Decibel 112dB | ||
Series YA50 | ||
Base Length 153mm | ||
Minimum Temperature -35°C | ||
Base Width 127mm | ||
Housing Material ABS FR UL95 5VB | ||
Maximum Temperature +70°C | ||
Standards Met CE Certified EN54-3 UKCA | ||
Tone Type Signal | ||
- COO (Country of Origin):
- GB

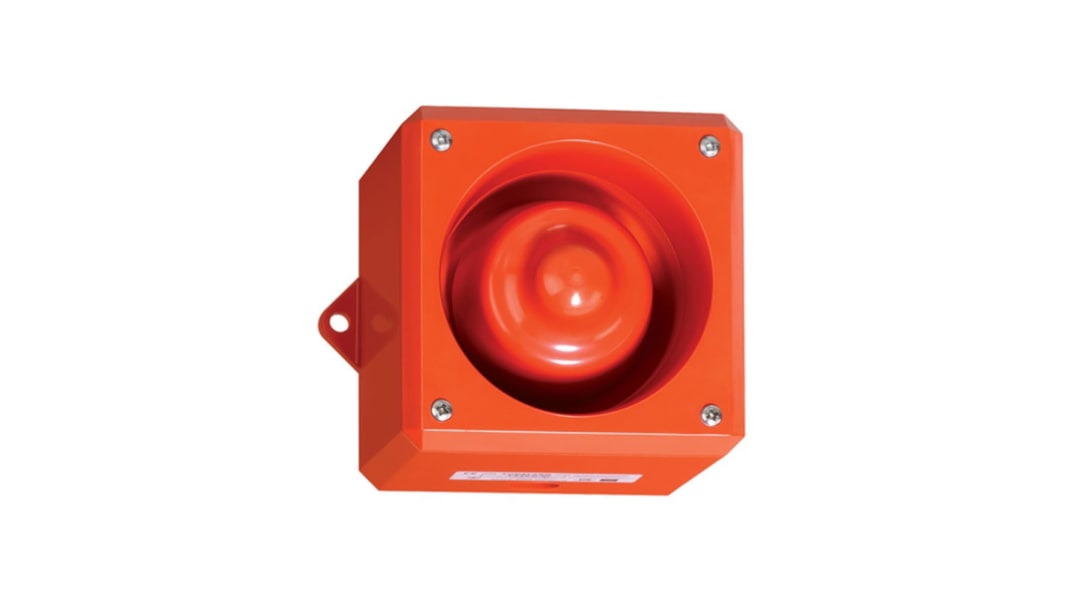

Clifford & Snell Electronic Sounder, 112dB, 24V DC - YA50 Series - YA50/D/RF/WR
Need to alert personnel and visitors to dangers in your workplace? Use this multipurpose electronic sounder from Clifford & Snell to give audible two-stage alarms in commercial, light industrial and marine applications. It offers a choice of 32 different tones at a maximum volume of 112 decibels. They'll be heard even where visibility is limited and visual alerts can't be seen. This sounder comes in an easy-to-spot orange housing. This is constructed from flame-retardant ABS (acrylonitrile butadiene styrene) so it's sturdy and reliably durable.
Features & Benefits
• Wide operating temperature range of -35 °C to +70°C for use in harsh environments
• IP66 (ingress protection) rating indicates a dust-tight build that can withstand powerful jets of water
• IP66 (ingress protection) rating indicates a dust-tight build that can withstand powerful jets of water
Applications
• Shipping and marine industry
• Airport operations
• Industrial manufacturing
• Fire and security alarms
• Airport operations
• Industrial manufacturing
• Fire and security alarms
Where should this sounder be mounted?
You can mount this sounder on any suitable flat surface. Simply drive screws through the external mounting lugs or internal fixing holes that you've drilled. Then feed the supply cable through the 20mm gland entry.
