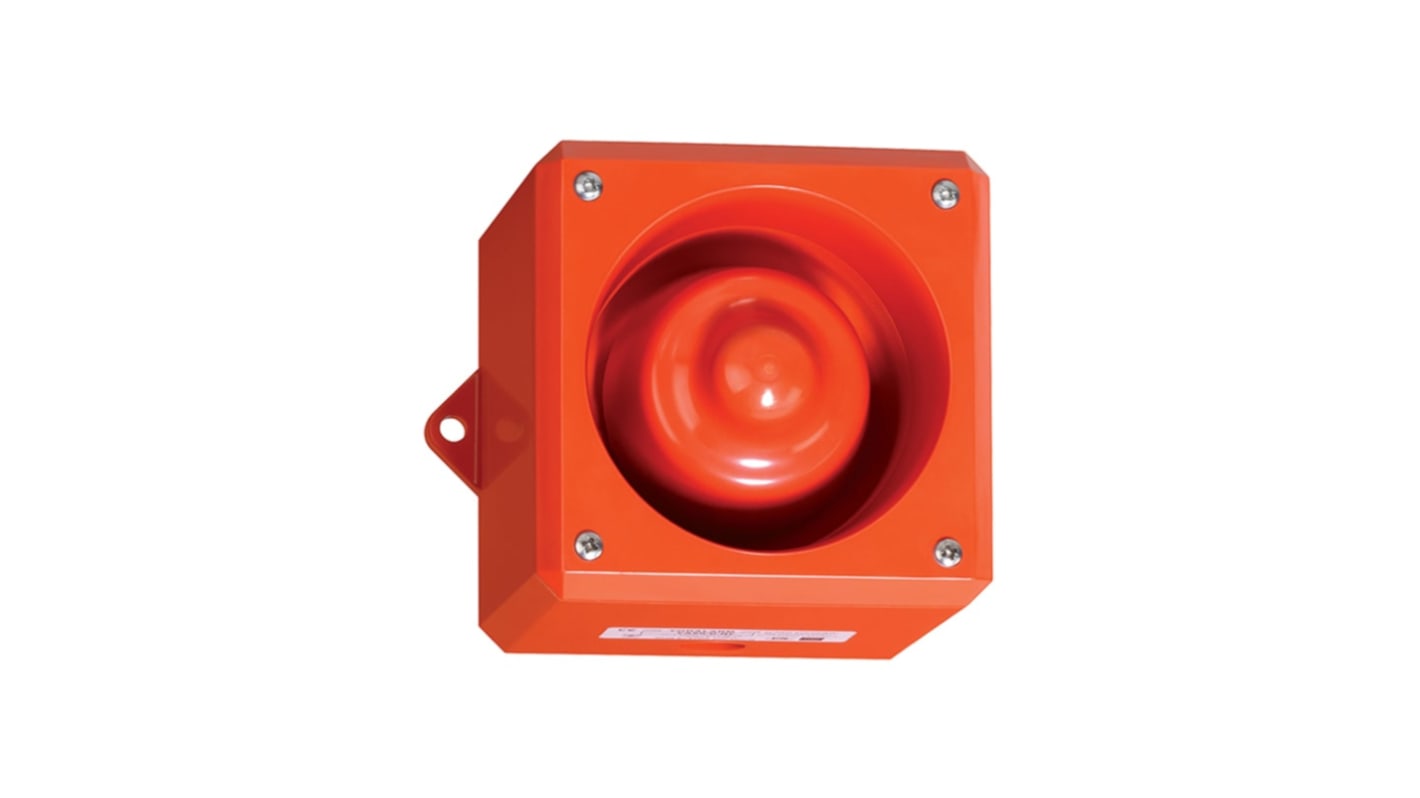

Clifford & Snell YA50 Series Electronic Sounder Wall, Bulkhead Mount, IP66, AC 24V ac, 32-Tone 112 dB @ 1m
- RS Stock No.:
- 264-6029
- Mfr. Part No.:
- 245155
- Brand:
- Clifford & Snell
Subtotal (1 unit)*
£126.27
(exc. VAT)
£151.52
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £126.27 |
*price indicative
- RS Stock No.:
- 264-6029
- Mfr. Part No.:
- 245155
- Brand:
- Clifford & Snell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Clifford & Snell | |
| Product Type | Electronic Sounder | |
| IP Rating | IP66 | |
| Current Type | AC | |
| Number of Tones | 32 | |
| Housing Colour | Red | |
| Current Consumption | 100mA | |
| Mount Type | Wall, Bulkhead Mount | |
| Maximum Supply Voltage | 24V ac | |
| Sound Level at 1m | 112dB | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Maximum Sound Level | 105dB | |
| Series | YA50 | |
| Base Length | 136mm | |
| Hazardous Area Certification | NO | |
| Housing Material | ABS FR UL95 5VB | |
| Base Width | 136mm | |
| Standards/Approvals | UKCA, RoHS, EU MED, UK MER, CE | |
| Select all | ||
|---|---|---|
Brand Clifford & Snell | ||
Product Type Electronic Sounder | ||
IP Rating IP66 | ||
Current Type AC | ||
Number of Tones 32 | ||
Housing Colour Red | ||
Current Consumption 100mA | ||
Mount Type Wall, Bulkhead Mount | ||
Maximum Supply Voltage 24V ac | ||
Sound Level at 1m 112dB | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Maximum Sound Level 105dB | ||
Series YA50 | ||
Base Length 136mm | ||
Hazardous Area Certification NO | ||
Housing Material ABS FR UL95 5VB | ||
Base Width 136mm | ||
Standards/Approvals UKCA, RoHS, EU MED, UK MER, CE | ||
The Clifford & Snell Yodalarm YA50 multipurpose audible signalling device designed for use in commercial, light industrial & marine applications. The sounder produces a powerful, 112 dB signal that may easily heard over background noise. There's also a choice of 32 tones, so you can find one that suits your industrial workspace. Flame-resistant ABS is used to make the enclosure.
Max sound output 112 dB (A) at 1m
24 V ac rated operational voltage
Low current consumption
Robust, reliable and simple to install
