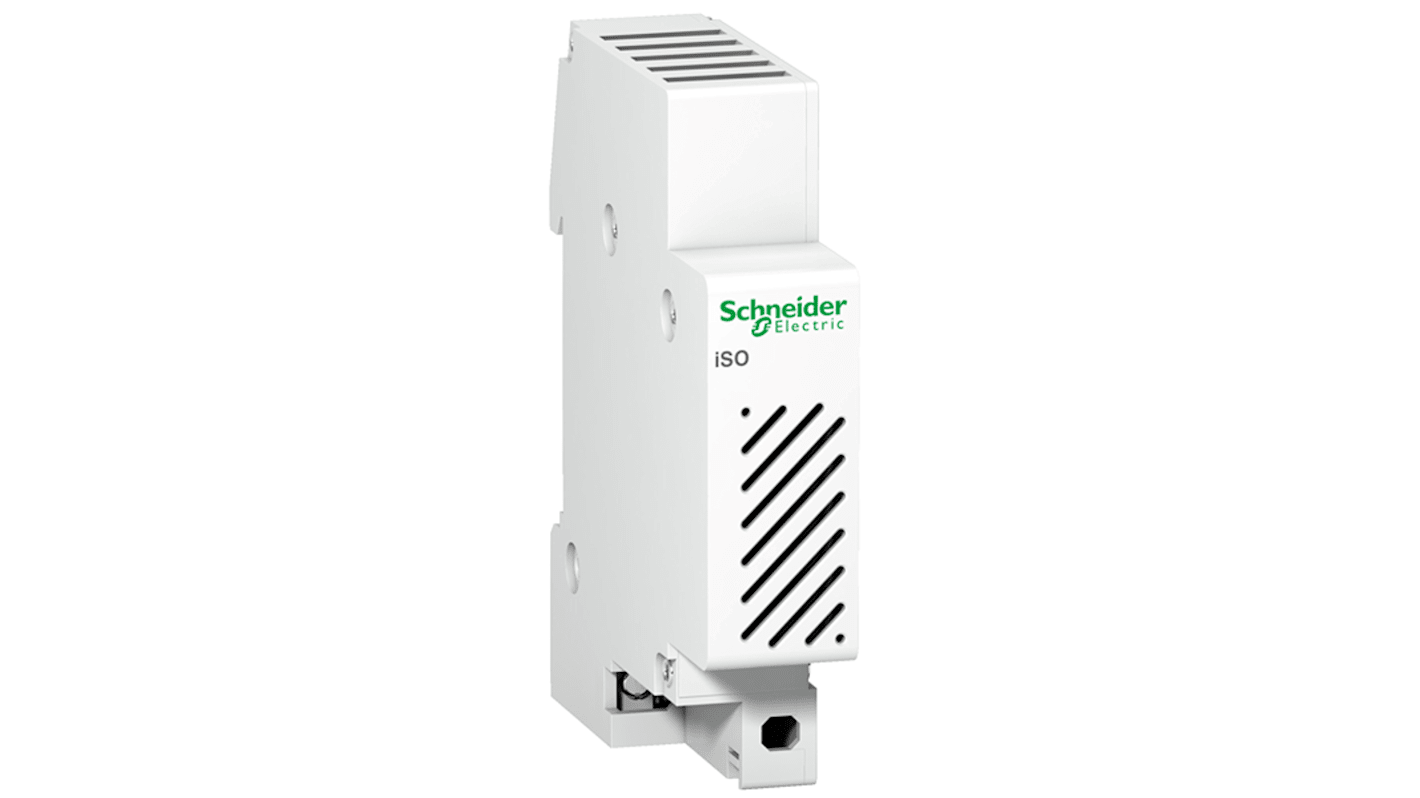

Schneider Electric Acti9 Series Clip-On Electronic bell, 8 → 12 V ac, 80dB at 1 m, IP20, IP40, Single-Tone
- RS Stock No.:
- 212-210
- Mfr. Part No.:
- A9A15321
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£24.14
(exc. VAT)
£28.97
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £24.14 |
*price indicative
- RS Stock No.:
- 212-210
- Mfr. Part No.:
- A9A15321
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Supply Voltage | 8 → 12 V ac | |
IP Rating | IP20, IP40 | |
Decibels at 1 Metre | 80dB | |
Number Of Tones | 1 | |
Mounting Style | Clip-On | |
Series | Acti9 | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Supply Voltage 8 → 12 V ac | ||
IP Rating IP20, IP40 | ||
Decibels at 1 Metre 80dB | ||
Number Of Tones 1 | ||
Mounting Style Clip-On | ||
Series Acti9 | ||
- COO (Country of Origin):
- IN
The Schneider Electric Modular Bell operates with a rated supply voltage of 8 to 12 V AC at 50/60 Hz and consumes 3.6 VA of power. It is designed for mounting on a 35 mm symmetrical DIN rail with a 2-pitch width. The bell's dimensions are 81 mm in height, 18 mm in width, and 72 mm in depth. It features auxiliary connection terminals that are tunnel-type, supporting rigid and flexible wires up to 4 mm². The wire stripping length for bottom connections is 12 mm, and the required tightening torque is 1.3 N·m for the bottom terminal.
Clip on mounting
80 dB noise level
IP40 rated for modular enclosure conforming to IEC 60529
80 dB noise level
IP40 rated for modular enclosure conforming to IEC 60529
