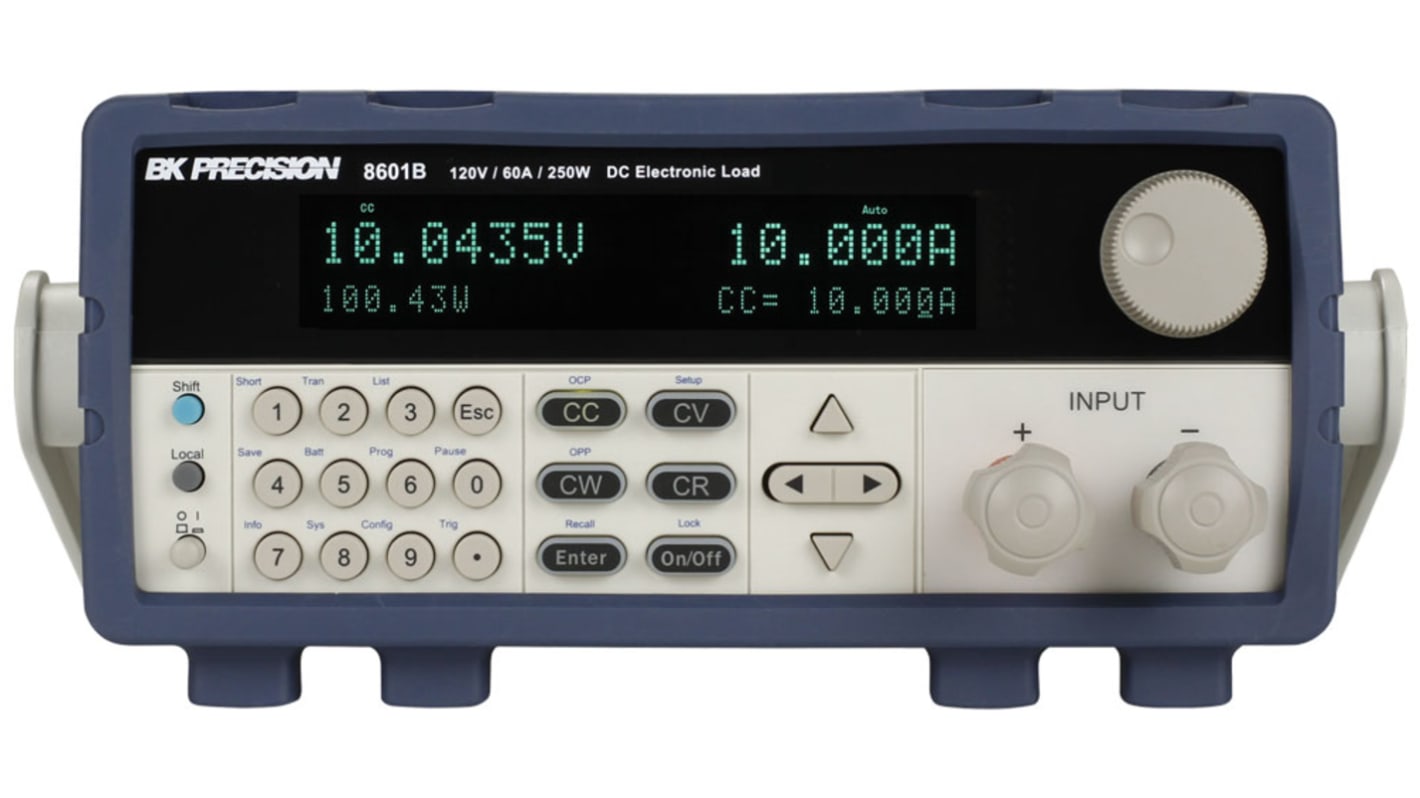

BK Precision 8600/B Series Electronic Load, 250 W, 120 V, 60 A
- RS Stock No.:
- 240-6649
- Distrelec Article No.:
- 302-40-578
- Mfr. Part No.:
- BK8601B
- Brand:
- BK Precision
Subtotal (1 unit)*
£1,407.99
(exc. VAT)
£1,689.59
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 02 February 2026
- Plus 1 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,407.99 |
*price indicative
- RS Stock No.:
- 240-6649
- Distrelec Article No.:
- 302-40-578
- Mfr. Part No.:
- BK8601B
- Brand:
- BK Precision
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BK Precision | |
| Series | 8600/B | |
| Product Type | Electronic Load | |
| Load Type | DC Electronic Load | |
| Constant Voltage Mode Range | 120 V | |
| Constant Current Mode Range | 60 A | |
| Constant Resistance Mode Range | 30 mΩ | |
| Interface Type | USB, RS232, GPIB | |
| Constant Wattage Mode Range | 250 W | |
| Rack Unit | 2U | |
| Operating Modes | Constant Power, Constant Voltage, Constant Resistance, Constant Current | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand BK Precision | ||
Series 8600/B | ||
Product Type Electronic Load | ||
Load Type DC Electronic Load | ||
Constant Voltage Mode Range 120 V | ||
Constant Current Mode Range 60 A | ||
Constant Resistance Mode Range 30 mΩ | ||
Interface Type USB, RS232, GPIB | ||
Constant Wattage Mode Range 250 W | ||
Rack Unit 2U | ||
Operating Modes Constant Power, Constant Voltage, Constant Resistance, Constant Current | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CN
The BK Precision The 8600/BSeries programmable DC electronic loads provide the performance of modular system.
Voltage range up to 500 V
Current range up to 720 A
CC/CV/CR/CW operating modes
16-bit voltage and current measurement system providing 1 mV / 0.1 mA resolution
Transient mode up to 25 kHz in CC mode
