RS PRO Electronic Load, 0 to 150 W, 0/120 V, 0 to 30 A

View all Electronic Loads

Subtotal (1 unit)*

£392.93

(exc. VAT)

£471.52

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 49 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£392.93

*price indicative

RS Stock No.:
201-8211
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Electronic Load

Load Type

Programmable

Constant Voltage Mode Range

0/120 V

Constant Current Mode Range

0 to 30 A

Constant Resistance Mode Range

0.05 to 7500Ω

Constant Wattage Mode Range

0 to 150 W

Interface Type

Ethernet, RS232, USB

Standards/Approvals

No

COO (Country of Origin):
CN

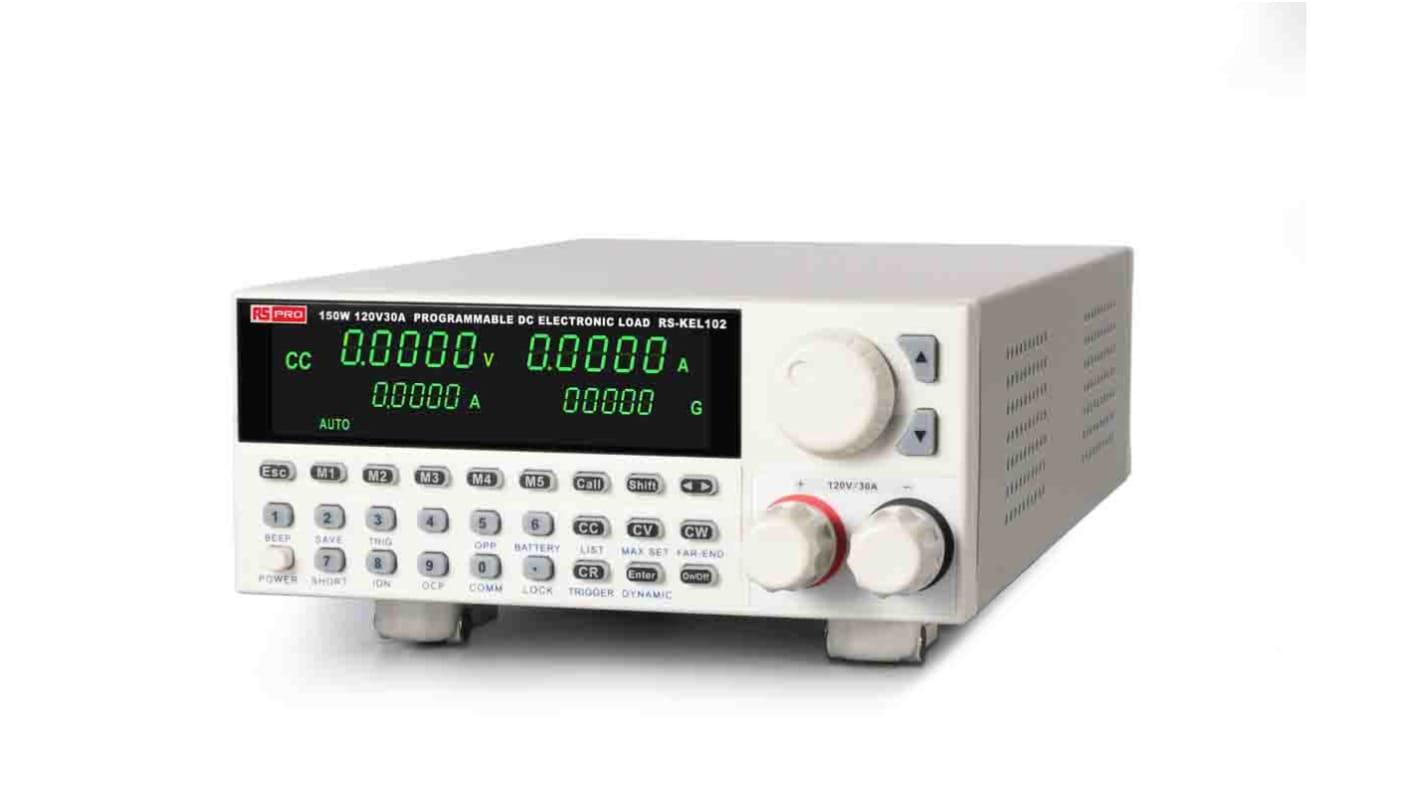

RS PRO RS-KEL102 DC Electronic Load


Introducing the RS PRO RS-KEL102 Programmable DC Electronic Load, a highly versatile device that is ideal for testing a range of power supplies. This highly reliable electronic load features high speed and accurate measurement, offering excellent measurement capability for an electronic component, battery, portable charger, and power supply that requires low to medium power consumption. It features an easy to read, large digital LCD display, alongside a user-friendly interface for easy operation, as well as a range of different operating modes to make testing easy across a range of different applications.

Features and Benefits:


  • This RS PRO Programmable DC Electronic Load offers 4 working modes (CV/CC/CR/CW) for optimum versatility across a range of applications

  • Dynamic mode: up to 10KHZ

  • Resolution of voltage and current: 0.1mV/0.1mA

  • Remote sensing function, Short circuit function, Current monitoring function and Power off memory function

  • Battery test, automatic test, OPP test, OCP test functions

  • Data Storage: 100 sets of storage

  • Input Voltage: 230V

  • 0-120V, 0-30A, 150W

  • Interfaces: USB, RS232 & LAN

    • Applications:


    Electronic loads allow easy and quick simulation of various power states. They are useful for testing various power sources like batteries, inverters, converters and much more. These programmable devices are essential in ensuring various power supplies meet the required safety and compliance standards. Electronic loads are easier to use and provide a much higher output compared to fixed-resistors, offering various modes of control such as constant voltage, constant current, constant power, and constant resistance making them highly versatile and powerful instruments. They are often used in the following settings:

  • Laboratory

  • Research and Development facilities

  • Aerospace

  • Commercial Electronics

    • Why use an electronic load rather than a fixed value power resistor?


    A fixed value power resistor is suitable for applications that require no closed-loop control, however, they can present many limitations when testing power sources. Electronic loads have the ability to emulate various scenarios and actual devices that connect to your power source, whilst providing higher flexibility by allowing you to sink various levels of power and arbitrary profiles. Electronic loads reduce test time and cost by easily adapting to continuous changes in device test requirements, making them a highly effective solution to test power devices.

    Why RS PRO?


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
