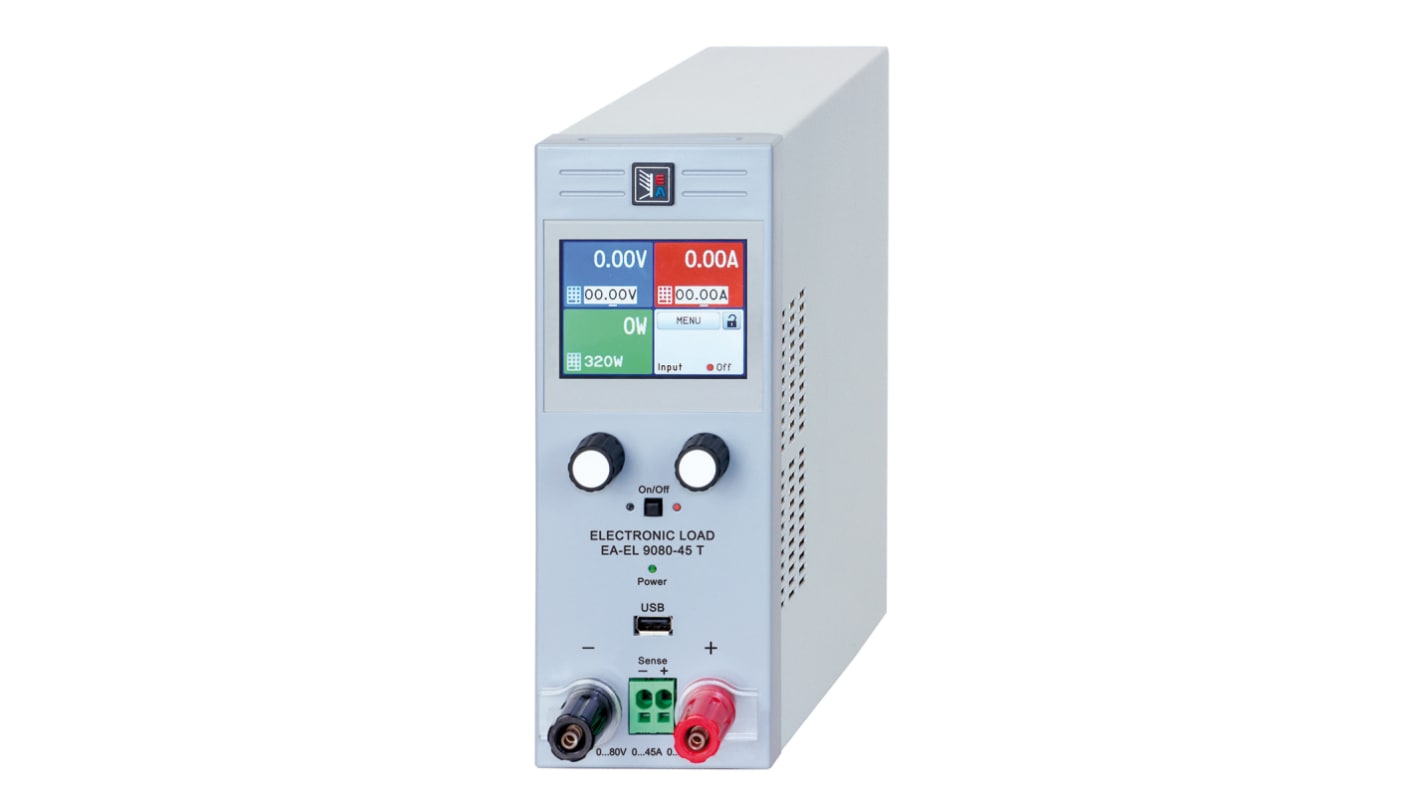

EA Elektro-Automatik EL 9000 T Series Electronic DC Load, 0 → 600 W, 0 → 80 V, 0 → 45 A
- RS Stock No.:
- 138-6139
- Mfr. Part No.:
- EA-EL 9080-45 T
- Brand:
- EA Elektro-Automatik
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 138-6139
- Mfr. Part No.:
- EA-EL 9080-45 T
- Brand:
- EA Elektro-Automatik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EA Elektro-Automatik | |
| Series | EL 9000 T | |
| Load Type | Programmable | |
| Constant Voltage Mode Range | 0 → 80 V | |
| Constant Current Mode Range | 0 → 45 A | |
| Constant Resistance Mode Range | 0.12 → 40 Ω | |
| Constant Wattage Mode Range | 0 → 600 W | |
Select all | ||
|---|---|---|
Brand EA Elektro-Automatik | ||
Series EL 9000 T | ||
Load Type Programmable | ||
Constant Voltage Mode Range 0 → 80 V | ||
Constant Current Mode Range 0 → 45 A | ||
Constant Resistance Mode Range 0.12 → 40 Ω | ||
Constant Wattage Mode Range 0 → 600 W | ||
- COO (Country of Origin):
- DE
Programmable Electronic DC loads EL 9000 T Series 400 W - 600 W
The new EA-EL 9000 T series of compact electronic DC loads offers three tower models for the daily application in research laboratories and even schools. Lower power ratings allow for a multitude of test applications while being cost effective and space saving. All models support the four regulation modes constant voltage (CV), constant current (CC), constant power (CP) and constant resistance (CR).
The core of the control circuit is a fast microprocessor which provides interesting features. Such as a true function generator with common functions like sine wave, rectangle or triangle, but also an arbitrary function. The colour TFT touch panel offers an intuitive manual operation, like it is prolific with smartphones or tablet computers. Response times during the control of the devices via analogue or digital interface improved by an ARM processor controlled hardware, compared to older electronic load series.
Features and Benefits
• Input Power Ratings: 0 W to 400 W, 0 W to 500 W, 0 W to 600 W
• Input Voltages: 0 V to 80 V, 0 V to 200 V, 0 V to 500 V
• Input Currents: 0 A to 8 A, 0 A to 18 A, 0 A to 45 A
• Multilingual colour touch panel
• True function generator
• Adjustable protections: OVP, OCP, OPP
• Operation modes: CV, CC, CP, CR
• USB port as standard
• Ethernet and analogue interface optional
• SCPI and Modbus RTU supported
• Control software (Windows)
• LabView Vis
