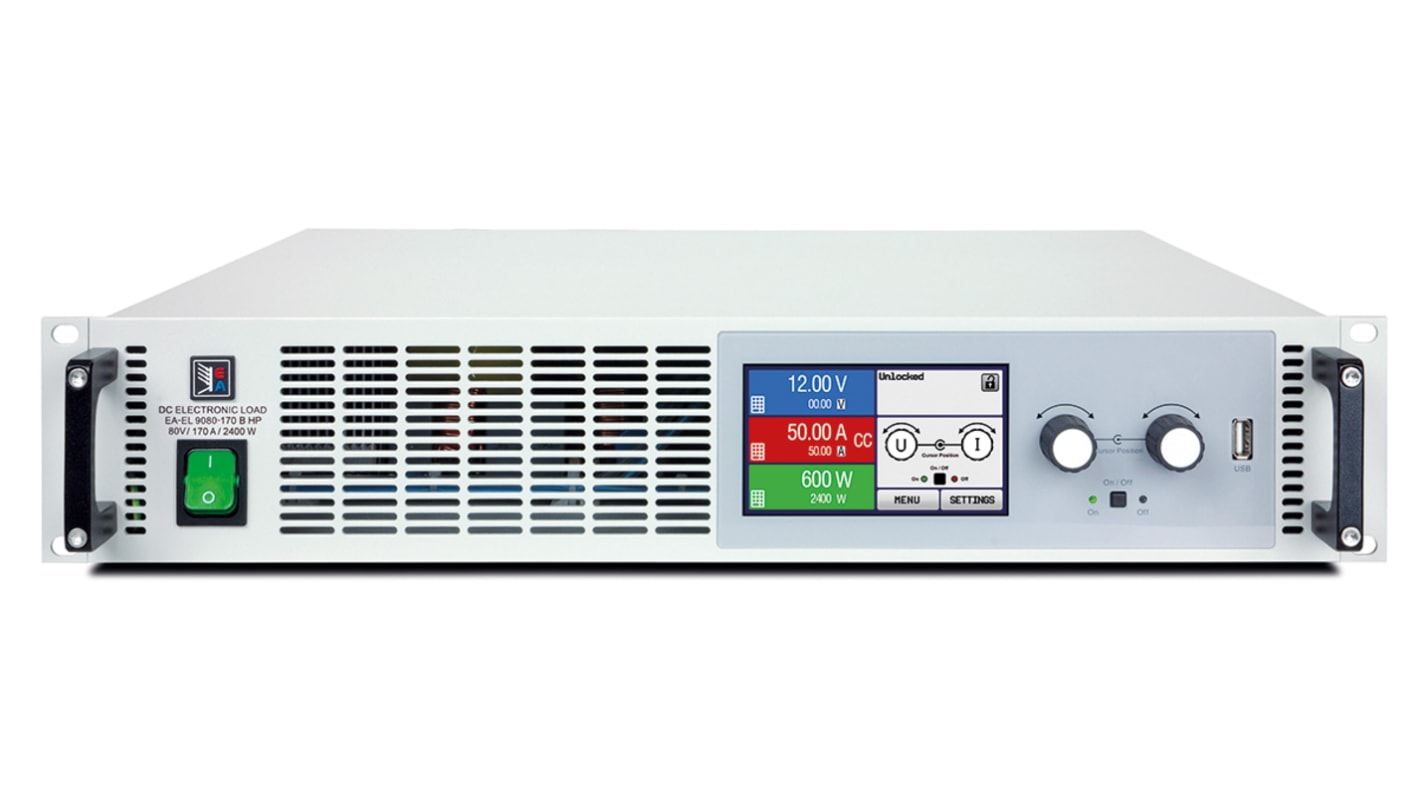

EA Elektro-Automatik EL 9000 B HP Series Electronic DC Load, 0 → 2000 W, 0 → 200 V, 0 → 70 A
- RS Stock No.:
- 138-6123
- Mfr. Part No.:
- EA-EL 9200-70 B HP 2U
- Brand:
- EA Elektro-Automatik
3 In stock for delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£4,291.91
(exc. VAT)
£5,150.29
(inc. VAT)
| Units | Per unit |
| 1 + | £4,291.91 |
- RS Stock No.:
- 138-6123
- Mfr. Part No.:
- EA-EL 9200-70 B HP 2U
- Brand:
- EA Elektro-Automatik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
EL 9000 B HP Series
The electronic DC loads series EA-EL 9000 B HP replace the current EA-EL 9000 HP series. They reduce the required unit height from 3U to 2U. Meaning, the steady power of 7200 W of a former EA-EL 9000 HP device can already be achieved in 6U of height where it required 9U before. The result is a space saving of 33% which allows for achieving even more power in a 19" cabinet.
All models support the four common regulation modes constant voltage (CV), constant current (CC), constant power (CP) and constant resistance (CR). The FPGA-based control circuit provides interesting features, such as a function generator with a table-based function for the simulation of nonlinear internal resistances.
Features and Benefits
• Power Ratings: 0 to 600 W up to 0 to 2400 W
• Input Voltages: 0 to 80 V up to 0 to 750 V
• Input Currents: Up to 170 A per unit
• FPGA-based control circuit
• Multilingual colour touch panel
• User profiles, true function generator
• Adjustable Protections: OVP, OCP, OPP
• Operation Modes: CV, CC, CP, CR
• Galvanically isolated interfaces (analogue and USB)
• Master-slave bus for parallel connection
• Optional: Digital, plug and play interfaces
• SCPI and Modbus RTU supported
• LabView VIs and remote control software (Windows)
Specifications
Attribute | Value |
|---|---|
| Series | EL 9000 B HP |
| Load Type | Programmable |
| Constant Voltage Mode Range | 0 → 200 V |
| Constant Current Mode Range | 0 → 70 A |
| Constant Resistance Mode Range | 0.22 → 100 Ω |
| Constant Wattage Mode Range | 0 → 2000 W |
| Rack Units | 2 U |
