- RS Stock No.:
- 228-3023
- Mfr. Part No.:
- STEF12H60MAPUR
- Brand:
- STMicroelectronics
Available to back order for despatch 20/01/2025
Added
Price Each (On a Reel of 3000)
£2.565
(exc. VAT)
£3.078
(inc. VAT)
Units | Per unit | Per Reel* |
3000 + | £2.565 | £7,695.00 |
*price indicative |
- RS Stock No.:
- 228-3023
- Mfr. Part No.:
- STEF12H60MAPUR
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details

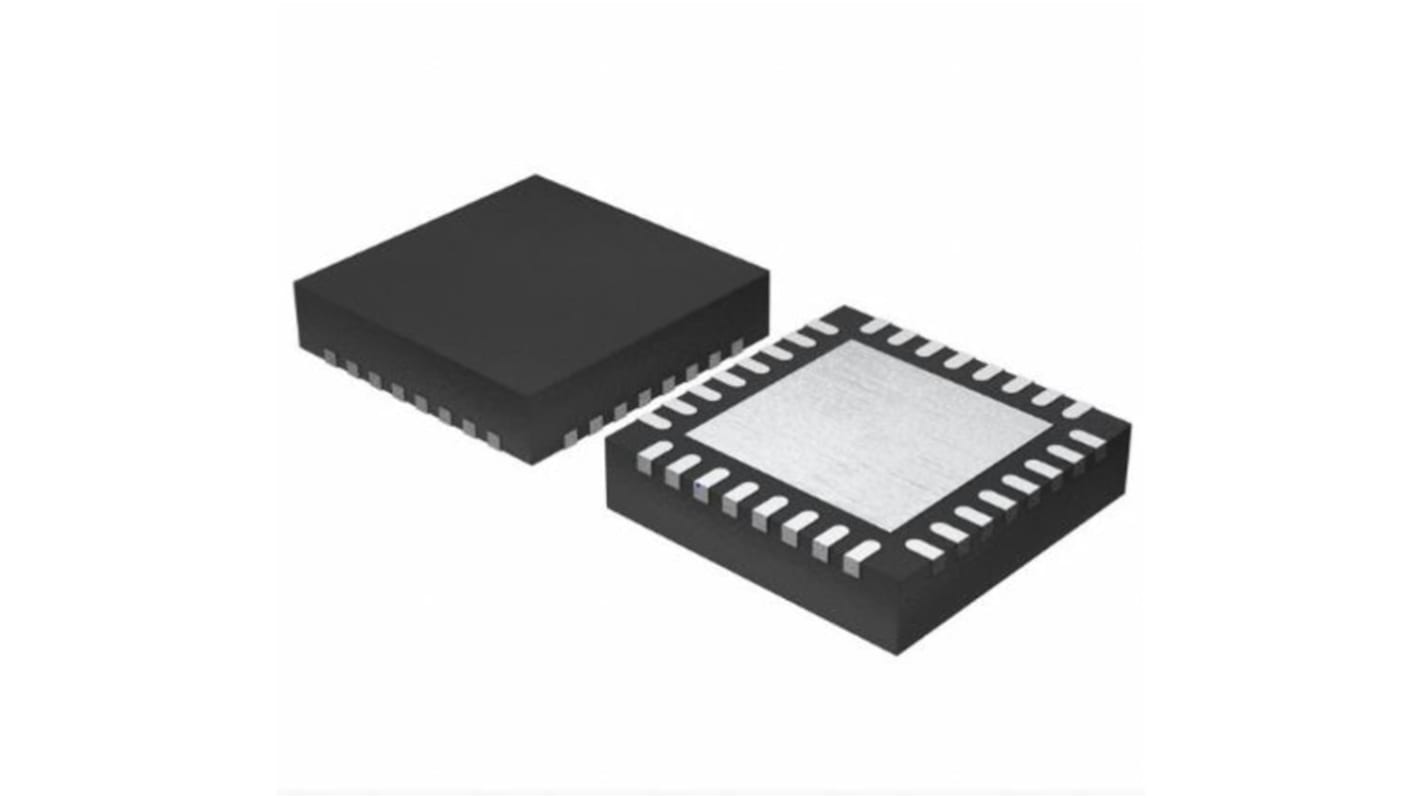

The STMicroelectronics STEF12H60M is a 60 A integrated electronic fuse optimized for monitoring the output current and the input voltage, over the 12 V DC power lines. When connected in series to the main power rail, it is able to detect and react to overcurrent conditions. When an overload condition occurs, the device limits the output current to a safe value defined by the user.
Adjustable current limit
Input undervoltage lockout
Integrated 0.85 mΩ Power MOSFET
Enable/Disable pin
Programmable turn-on time
Accurate current monitor signal
Precise temperature monitor
Overcurrent and Fault status flags
Internal MOSFET self-diagnostic
Parallel operation
Thermal protection
Fault management: latch-off or auto-retry versions
Input undervoltage lockout
Integrated 0.85 mΩ Power MOSFET
Enable/Disable pin
Programmable turn-on time
Accurate current monitor signal
Precise temperature monitor
Overcurrent and Fault status flags
Internal MOSFET self-diagnostic
Parallel operation
Thermal protection
Fault management: latch-off or auto-retry versions
Specifications
Attribute | Value |
---|---|
Maximum Operating Current | 60A |
Maximum Input Voltage | 18 V |
Minimum Input Voltage | 5 V |
Number of Channels | 1 |
Current Limit | Adjustable |
