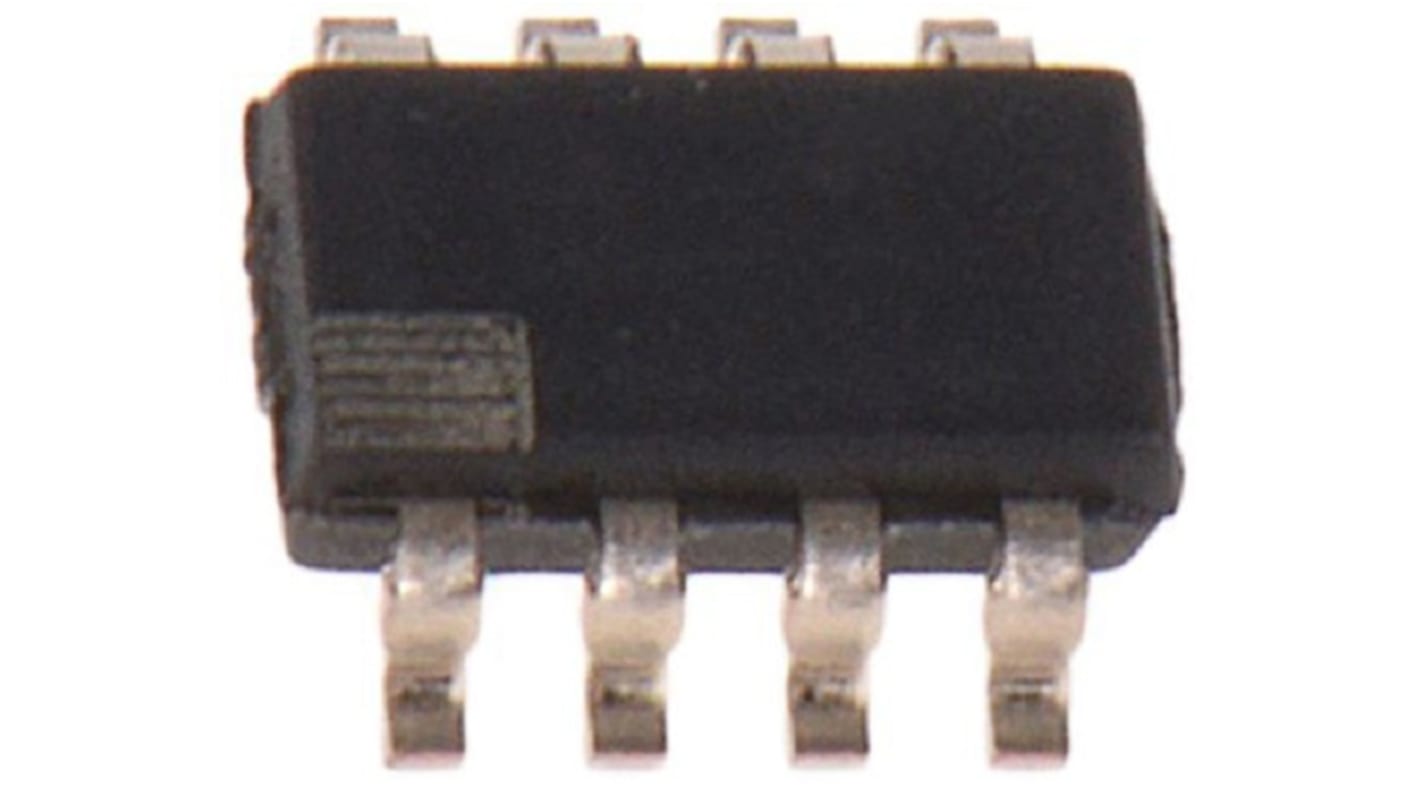

STMicroelectronics STEF12SAGR Electronic Fuse IC, 25 V
- RS Stock No.:
- 248-5851
- Mfr. Part No.:
- STEF12SAGR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£1,332.00
(exc. VAT)
£1,599.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,000 unit(s) shipping from 01 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 + | £0.444 | £1,332.00 |
*price indicative
- RS Stock No.:
- 248-5851
- Mfr. Part No.:
- STEF12SAGR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Maximum Operating Current | 3.5A | |
Maximum Input Voltage | 25 V | |
Minimum Input Voltage | -0.3 V | |
Current Limit | 3.8A | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Maximum Operating Current 3.5A | ||
Maximum Input Voltage 25 V | ||
Minimum Input Voltage -0.3 V | ||
Current Limit 3.8A | ||
The STMicroelectronics product is an integrated electronic fuse optimized to monitor the 12 V DC power lines. When connected in series to the main power rail, it is able to precisely detect and react to overcurrent and overvoltage conditions. When an overload condition occurs, the device limits the output current to a safe value defined by the user. If the anomalous overload condition persists, the device goes into an open state, disconnecting the load from the power supply. In case of overvoltage on the input, the device regulates the output to a preset safe value.
15 V typical output overvoltage clamp
Absolute maximum voltage of 25 V
Adjustable current limit
Thermal protection
Input undervoltage lockout
Low inrush current during start-up
Adjustable slew rate for output voltage
Absolute maximum voltage of 25 V
Adjustable current limit
Thermal protection
Input undervoltage lockout
Low inrush current during start-up
Adjustable slew rate for output voltage
