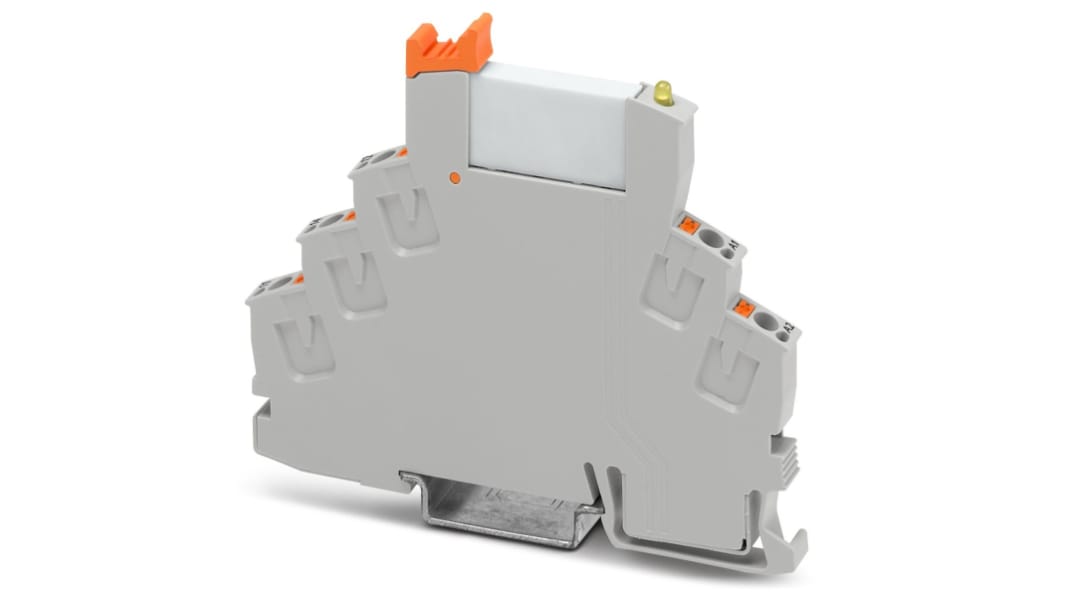

Phoenix Contact RIF-0-RPT-24DC/21 Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole
- RS Stock No.:
- 794-3771
- Distrelec Article No.:
- 304-02-033
- Mfr. Part No.:
- 2903370
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£10.26
(exc. VAT)
£12.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 937 unit(s) ready to ship
- Plus 421 unit(s) ready to ship from another location
- Plus 31 unit(s) shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.26 |
5 - 9 | £9.94 |
10 + | £9.54 |
*price indicative
- RS Stock No.:
- 794-3771
- Distrelec Article No.:
- 304-02-033
- Mfr. Part No.:
- 2903370
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Coil Voltage | 24V dc | |
Contact Configuration | SPDT | |
Mounting Type | DIN Rail | |
Series | RIF-0-RPT-24DC/21 | |
Number of Poles | 1 | |
Terminal Type | Plug In | |
Depth | 78mm | |
Height | 93mm | |
Length | 6.2mm | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +60°C | |
Life | 20000000 (Mechanical) cycles | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Series RIF-0-RPT-24DC/21 | ||
Number of Poles 1 | ||
Terminal Type Plug In | ||
Depth 78mm | ||
Height 93mm | ||
Length 6.2mm | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +60°C | ||
Life 20000000 (Mechanical) cycles | ||
- COO (Country of Origin):
- CN
Phoenix Contact RIF-0 Power Relay Modules
The professional range of RIFLINE complete power relays consist of a relay base with ejector and multi-layer gold contact or power contact relay.
The innovative, general purpose ice-cube relays are an excellent choice if you want to isolate, amplify or multiply signals. The universal plug-in design allows fast, easy and error free handling.
The innovative, general purpose ice-cube relays are an excellent choice if you want to isolate, amplify or multiply signals. The universal plug-in design allows fast, easy and error free handling.
Features and Benefits
Easy wiring due to push in connection technology
Easy handling and extension of range
Plug in display/suppressor module
1 and 2 contact options
5ms typical response time
Damping diode protective circuit
SPNO and SPDT available
Din rail mounting
Silver alloy contact material
-40°C to +60°C operating temperature
Easy handling and extension of range
Plug in display/suppressor module
1 and 2 contact options
5ms typical response time
Damping diode protective circuit
SPNO and SPDT available
Din rail mounting
Silver alloy contact material
-40°C to +60°C operating temperature
Typical Applications
The Phoenix Contact RIFLINE range can offer you a solution to practically every switching application.
Phoenix Contact Non-Latching Relay Module, SPDT - RIF-0-RPT-24DC/21 - 2903370
Choose this ice-cube relay from Phoenix Contact to isolate, amplify or multiply signals in any automation system. It includes a power contact relay and a relay base with an ejector. It's an effective choice for all coupling applications.
The general-purpose unit is pluggable and can be fitted with miniature power relays or solid-state relays, making it a versatile option in industrial systems. The relay base is integrated with a freewheeling diode, so you can connect an input circuit or interference suppression circuit based on your needs. An LED (light-emitting diode) status display makes for easy operation.
Thanks to push-in wiring, this relay module is quick and easy to install and configure. Its compact design is ideal for applications where space is limited. The coil and contact are isolated, so you can be assured of system safety.
The general-purpose unit is pluggable and can be fitted with miniature power relays or solid-state relays, making it a versatile option in industrial systems. The relay base is integrated with a freewheeling diode, so you can connect an input circuit or interference suppression circuit based on your needs. An LED (light-emitting diode) status display makes for easy operation.
Thanks to push-in wiring, this relay module is quick and easy to install and configure. Its compact design is ideal for applications where space is limited. The coil and contact are isolated, so you can be assured of system safety.
• SPDT (single pole, double throw) contact configuration
• Coil power of 170 mW
• Coil resistance of 3.388 kΩ
• Coil voltage of 24 V DC
• Silver-alloy contact material
• Switching current of 6 A
• Mechanical service life of 20,000,000 cycles
• Maximum switching power of 1.5 kVA
• Maximum switching power of 140 W
• Maximum switching voltage of 250 V AC
• Maximum switching voltage of 250 V DC
• Operating temperature range of -40°C to +60°C
• DIN rail mounting type
• Coil power of 170 mW
• Coil resistance of 3.388 kΩ
• Coil voltage of 24 V DC
• Silver-alloy contact material
• Switching current of 6 A
• Mechanical service life of 20,000,000 cycles
• Maximum switching power of 1.5 kVA
• Maximum switching power of 140 W
• Maximum switching voltage of 250 V AC
• Maximum switching voltage of 250 V DC
• Operating temperature range of -40°C to +60°C
• DIN rail mounting type
