Murrelektronik Limited Interface Relay, DIN Rail, 24V dc Coil, SPDT, 14mA
- RS Stock No.:
- 137-0299
- Mfr. Part No.:
- 6652000
- Brand:
- Murrelektronik Limited
Subtotal (1 unit)*
£15.49
(exc. VAT)
£18.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 15 June 2026
- Plus 26 unit(s) shipping from 15 June 2026
- Plus 104 unit(s) shipping from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.49 |
*price indicative
- RS Stock No.:
- 137-0299
- Mfr. Part No.:
- 6652000
- Brand:
- Murrelektronik Limited
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murrelektronik Limited | |
| Coil Voltage | 24V dc | |
| Product Type | Interface Relay | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Terminal Type | Spring Terminal | |
| Switching Current | 6A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 250V dc | |
| Coil Current | 14mA | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Contact Material | Silver Alloy | |
| Height | 91mm | |
| Length | 6.2mm | |
| Width | 6.2mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Murrelektronik Limited | ||
Coil Voltage 24V dc | ||
Product Type Interface Relay | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Terminal Type Spring Terminal | ||
Switching Current 6A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 250V dc | ||
Coil Current 14mA | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Contact Material Silver Alloy | ||
Height 91mm | ||
Length 6.2mm | ||
Width 6.2mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CZ

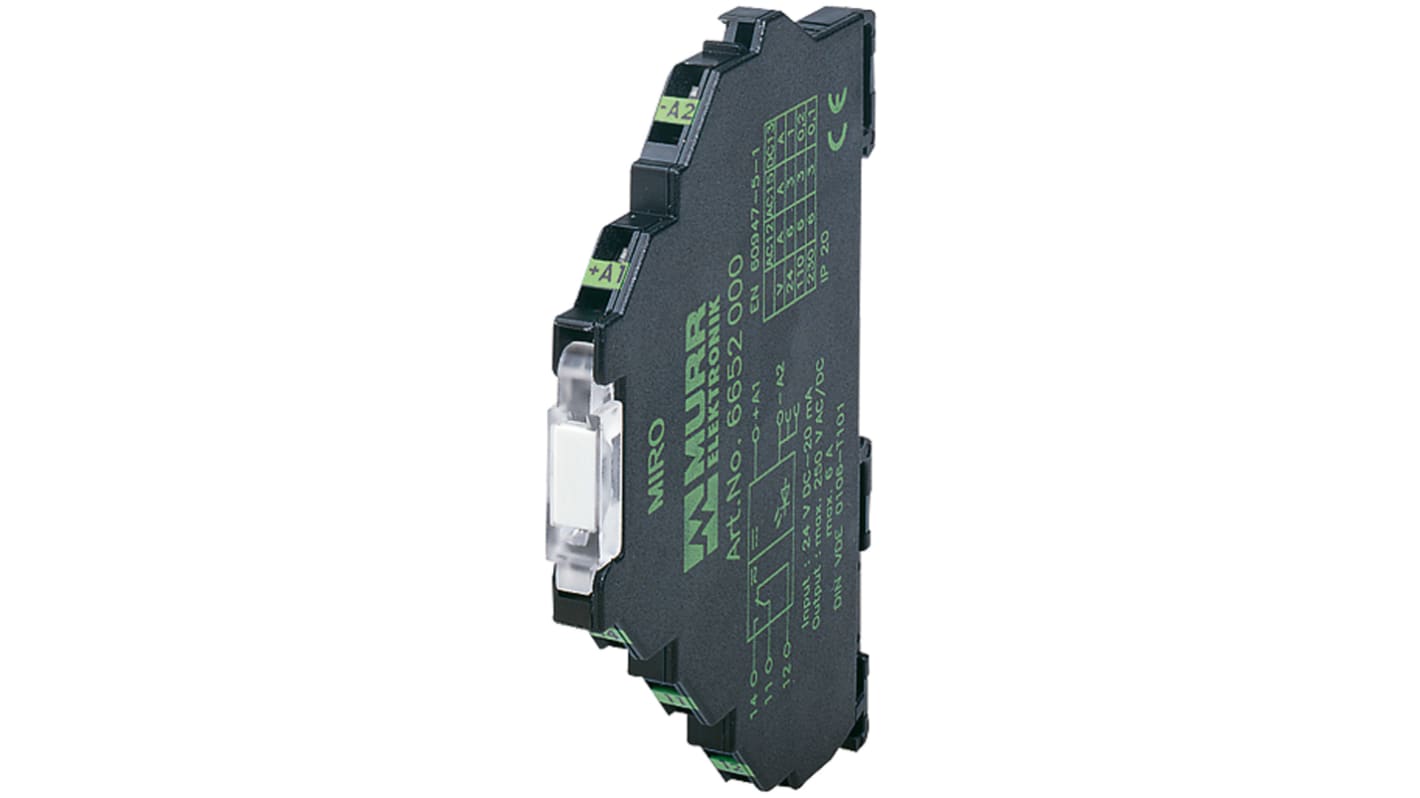

MurrElektronik MIRO 6.2 Series Relays
MurrElektronik MIRO 6.2 series interface relay module featuring coil/contact separation and LED status indicator. The MIRO 6.2 modules are a complete relay module without the need for seperate sockets, providing a quick simple installation option.
Features and Benefits
Status LED;Screw or spring clamp terminals;35mm DIN Rail mounting
