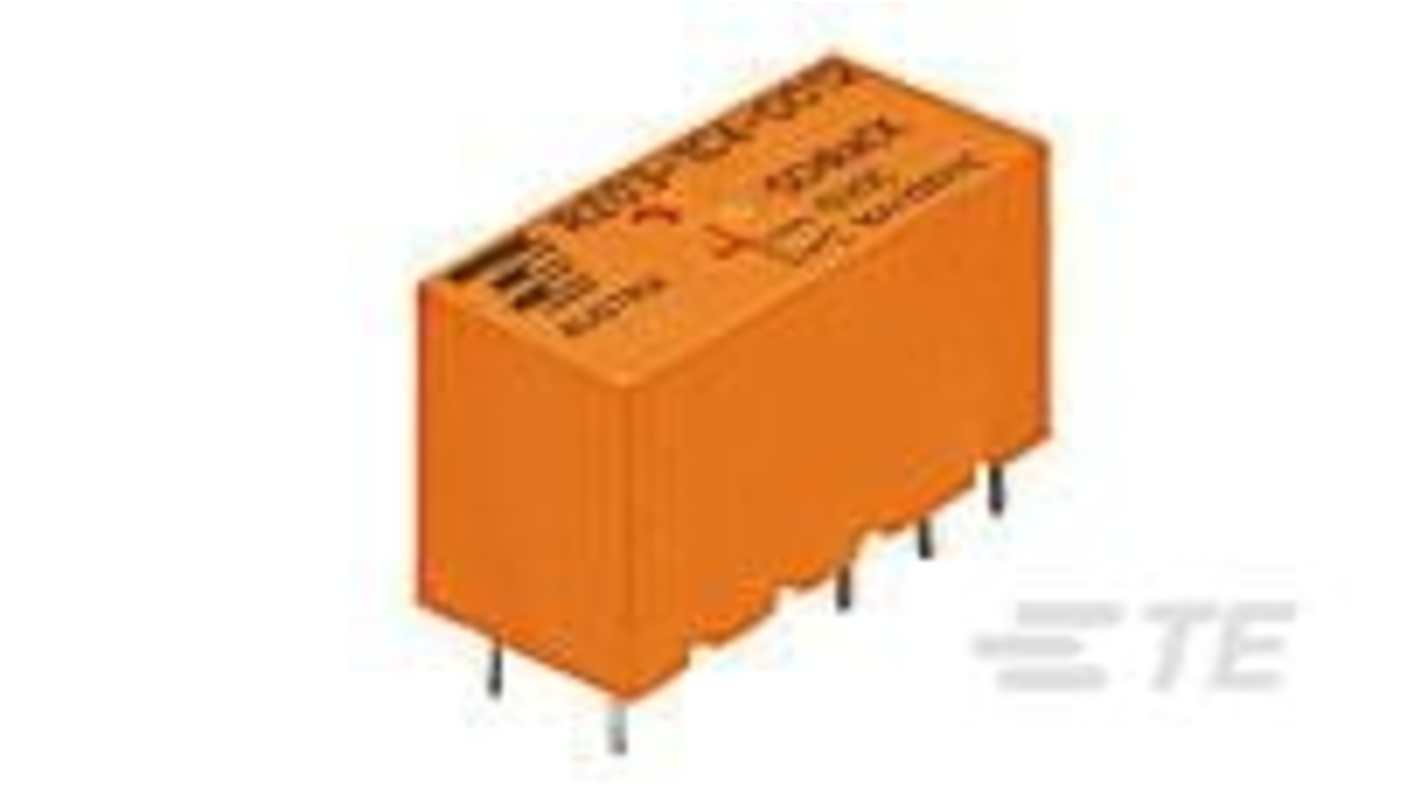

TE Connectivity SCHRACK Series Electromechanical Interface Relay, PCB, 24 V dc Coil, SPDT

View this category

Subtotal (1 box of 100 units)*

£144.44

(exc. VAT)

£173.33

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 22 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£144.44£1.444

*price indicative

RS Stock No.:
504-131
Distrelec Article No.:
304-61-400
Mfr. Part No.:
3-2158000-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Resistance

1440Ω

Coil Voltage

24 V dc

Product Type

Electromechanical Interface Relay

Contact Configuration

SPDT

Mount Type

PCB

Series

SCHRACK

Terminal Type

Solder Pin

Switching Current

16 A

Switching DC Voltage

24 V dc

Switching AC Voltage

277 V ac

Minimum Operating Temperature

-40°C

Contact Material

Silver Tin Oxide

Maximum Operating Temperature

85°C

Width

12.7 mm

Height

15.7mm

Length

29mm

Standards/Approvals

EU RoHS Directive 2011/65/EU Compliant, EU REACH Regulation (EC) No. 1907/2006, EU ELV Directive 2000/53/EC Compliant, China RoHS 2 Directive MIIT Order No 32, 2016 Compliant

COO (Country of Origin):
AT
The TE Connectivity general purpose power relay, designed for DC applications, is your reliable solution for switching tasks in various electrical systems. This monostable relay features a single form C SPDT-CO configuration, making it ideal for applications requiring high performance and versatility. With an impressive contact rating of 16 A and a coil voltage of 24 VDC, it meets the demanding needs of modern electronic designs. The product embodies durability with a robust construction, ensuring operational reliability across a wide temperature range, from -40 to 85 °C. Whether utilized in industrial machinery or consumer electronics, this relay delivers exceptional performance, efficiency, and safety, streamlining your electrical applications with ease.

Monostable design optimizes power efficiency

Single form C SPDT-CO configuration enhances switching versatility

High contact current rating ensures reliable performance

Wide operational temperature range supports diverse applications

Durable materials withstand harsh environmental conditions

Wave solder capable for efficient manufacturing processed
