MPN

Festo, 1000mm, 2500N, 5000mm/s, 8041862

RS Stock No.:: 281-1071
Mfr. Part No.:: ELGA-TB-KF-80-1000-0H
Brand:: Festo

Subtotal (1 unit)*

£2,151.63

(exc. VAT)

£2,581.96

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 07 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£2,151.63

*price indicative

RS Stock No.:: 281-1071
Mfr. Part No.:: ELGA-TB-KF-80-1000-0H
Brand:: Festo

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Maximum Stroke Length	1000mm
	Maximum Load	2500N
	Series	ELGA-TB
	Maximum Speed No Load	5000mm/s
	Maximum Force Lifting	2500N
	Motor Technology	Servo Motor, Stepper Motor
	Duty Cycle	100%
	IP Rating	IP40
	Model Number	8041862

	Select all
	Brand Festo
	Maximum Stroke Length 1000mm
	Maximum Load 2500N
	Series ELGA-TB
	Maximum Speed No Load 5000mm/s
	Maximum Force Lifting 2500N
	Motor Technology Servo Motor, Stepper Motor
	Duty Cycle 100%
	IP Rating IP40
	Model Number 8041862

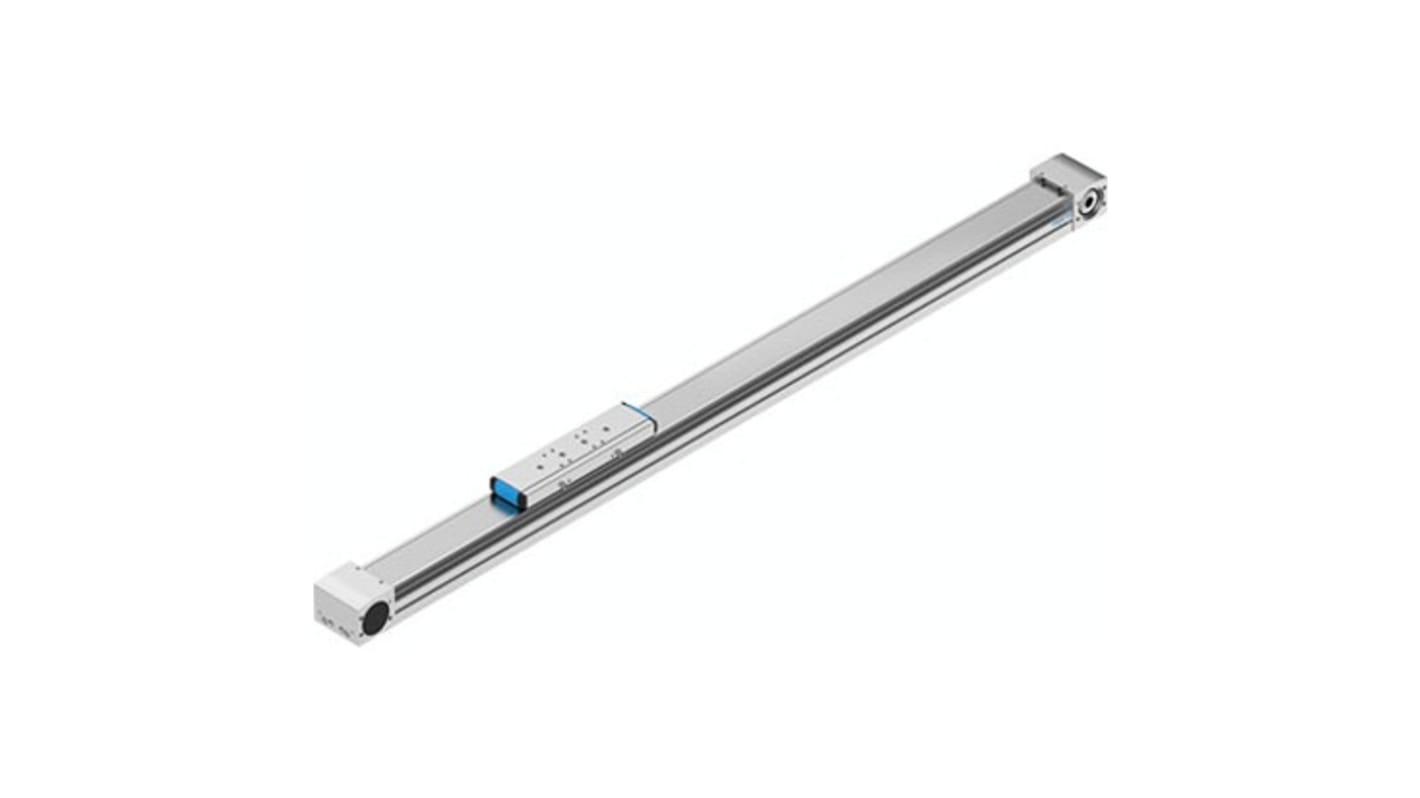

Festo ELGA-TB Series Electric Linear Actuator, 1000mm Stroke Length, 2500N Maximum Load - ELGA-TB-KF-80-1000-0H, Numeric Part Number:8041862

This electric linear actuator is designed for precision and high performance in automation applications. With a maximum stroke length of 1000mm and capable of handling loads up to 2500N, it offers exceptional movement control. This actuator employs advanced servo and stepper motor technologies, achieving speeds of up to 5000mm/s, making it ideal for various industrial tasks.

Features & Benefits

• Achieves exceptional efficiency with a 100% duty cycle
• Provides a maximum speed of 5000mm/s for rapid operations
• Boasts high accuracy with a repetition precision of ±0.08mm
• Equipped with an IP40 rating for protection against solid objects
• Designed with a robust recirculating ball bearing guide for smooth operation
• Constructed from anodised aluminium for enhanced durability

Applications

• Used in automated assembly lines
• Applied for precise positioning in robotics
• Utilised in material handling systems
• Implemented in packaging machinery
• Suitable for CNC machining

What type of motor is included with this actuator and what are its advantages?

It features both a stepper motor and a servo motor, which provide high precision and reliability in motion control. These motor types allow for accurate positioning and smooth speed transitions, essential for automated processes.

What is the maximum acceleration this actuator can handle?

The actuator can manage a maximum acceleration of 50 m/s², which facilitates rapid start and stop capabilities without compromising the stability of the load being moved.

How does the ambient temperature range affect the actuator's performance?

It operates efficiently in temperatures ranging from -10 °C to 60 °C, ensuring functionality in various industrial environments without the risk of failure or decreased performance.

What materials are used in the construction of the actuator?

The actuator is made from a wrought aluminium alloy, stainless steel components, and high-alloy stainless steel for pulleys, providing robust construction while remaining lightweight and corrosion-resistant.
