Festo, 300mm, 24V dc, 23kg, 74mm/s, 8118280
- RS Stock No.:
- 216-6344
- Mfr. Part No.:
- EPCS-BS-45-300-3P-A-ST-M-H1-PLK-AA
- Brand:
- Festo
Subtotal (1 unit)*
£978.39
(exc. VAT)
£1,174.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £978.39 |
*price indicative
- RS Stock No.:
- 216-6344
- Mfr. Part No.:
- EPCS-BS-45-300-3P-A-ST-M-H1-PLK-AA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Maximum Stroke Length | 300mm | |
Maximum Load | 23 kg, 60kg | |
Input Voltage | 24V dc | |
Series | EPCS-BS | |
Maximum Speed No Load | 74mm/s | |
Maximum Force Lifting | 450N | |
Duty Cycle | 100% | |
Model Number | 8118280 | |
Select all | ||
---|---|---|
Brand Festo | ||
Maximum Stroke Length 300mm | ||
Maximum Load 23 kg, 60kg | ||
Input Voltage 24V dc | ||
Series EPCS-BS | ||
Maximum Speed No Load 74mm/s | ||
Maximum Force Lifting 450N | ||
Duty Cycle 100% | ||
Model Number 8118280 | ||
- COO (Country of Origin):
- DE

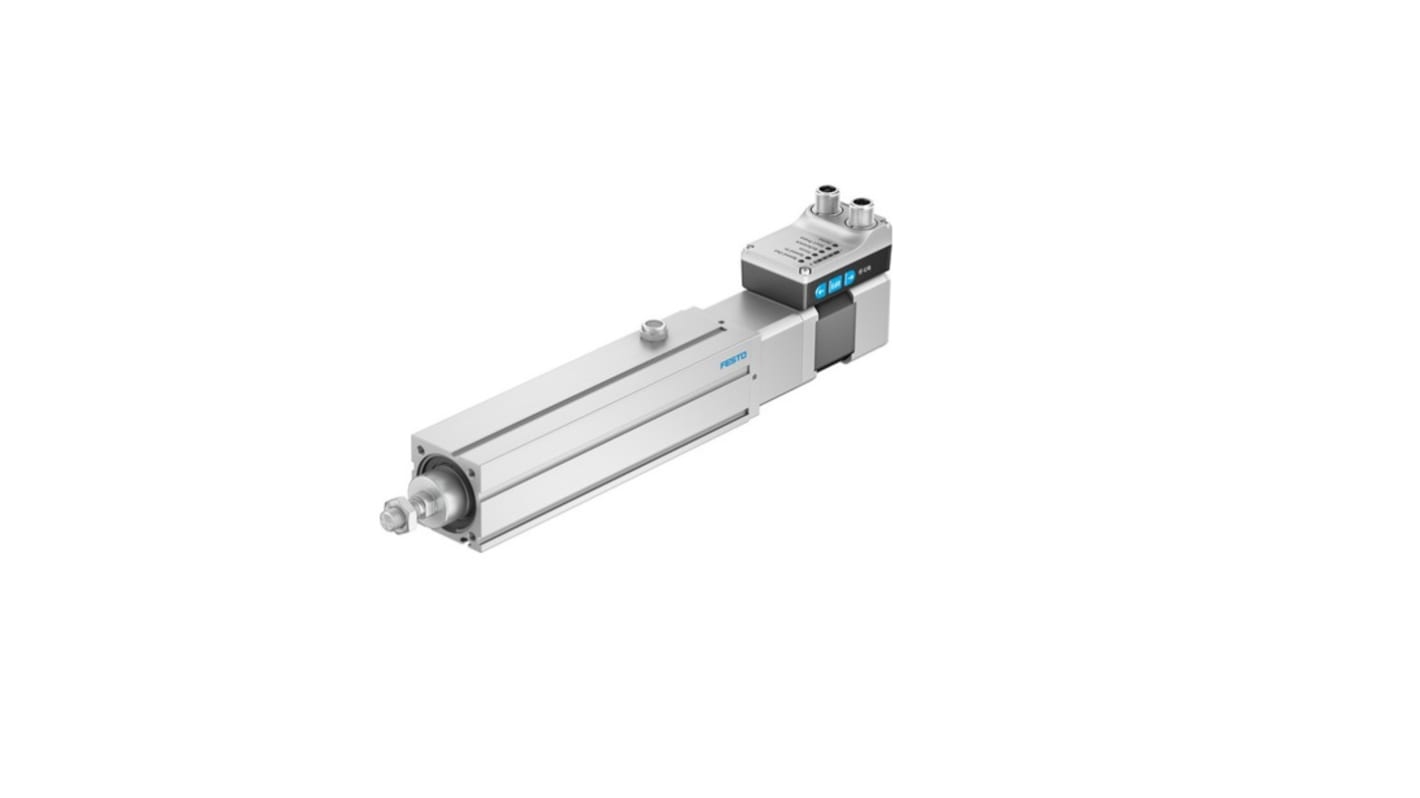

The Festo Electric cylinder unit EPCS is extremely low-cost yet high-performance and highly flexible: EPCS. With this the simplicity of pneumatics is combined with the benefits of electrical automation. Highly compact, ideal for small installation spaces. Product of the Simplified Motion Series: does not need any external servo drive or any control cabinet for the installation.
Complete solution consisting of integrated actuator, motor and servo drive
Extremely cost-effective, yet powerful and highly flexible
Ideal for individual linear movements in every installation position and especially for vertical Z movements
Precise positioning due to smoothly running ball screw drive
Compact dimensions
Safe movement due to flexible position sensing
Integrated end position sensing
Extremely cost-effective, yet powerful and highly flexible
Ideal for individual linear movements in every installation position and especially for vertical Z movements
Precise positioning due to smoothly running ball screw drive
Compact dimensions
Safe movement due to flexible position sensing
Integrated end position sensing
