Festo, 50mm, 24V dc, 23kg, 74mm/s, 8118275
- RS Stock No.:
- 216-6346
- Mfr. Part No.:
- EPCS-BS-45-50-3P-A-ST-M-H1-PLK-AA
- Brand:
- Festo
Subtotal (1 unit)*
£933.53
(exc. VAT)
£1,120.24
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £933.53 |
*price indicative
- RS Stock No.:
- 216-6346
- Mfr. Part No.:
- EPCS-BS-45-50-3P-A-ST-M-H1-PLK-AA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Maximum Stroke Length | 50mm | |
| Maximum Load | 23 kg, 60kg | |
| Input Voltage | 24V dc | |
| Series | EPCS-BS | |
| Maximum Speed No Load | 74mm/s | |
| Maximum Force Lifting | 450N | |
| Motor Technology | Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Model Number | 8118275 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Maximum Stroke Length 50mm | ||
Maximum Load 23 kg, 60kg | ||
Input Voltage 24V dc | ||
Series EPCS-BS | ||
Maximum Speed No Load 74mm/s | ||
Maximum Force Lifting 450N | ||
Motor Technology Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Model Number 8118275 | ||
- COO (Country of Origin):
- DE

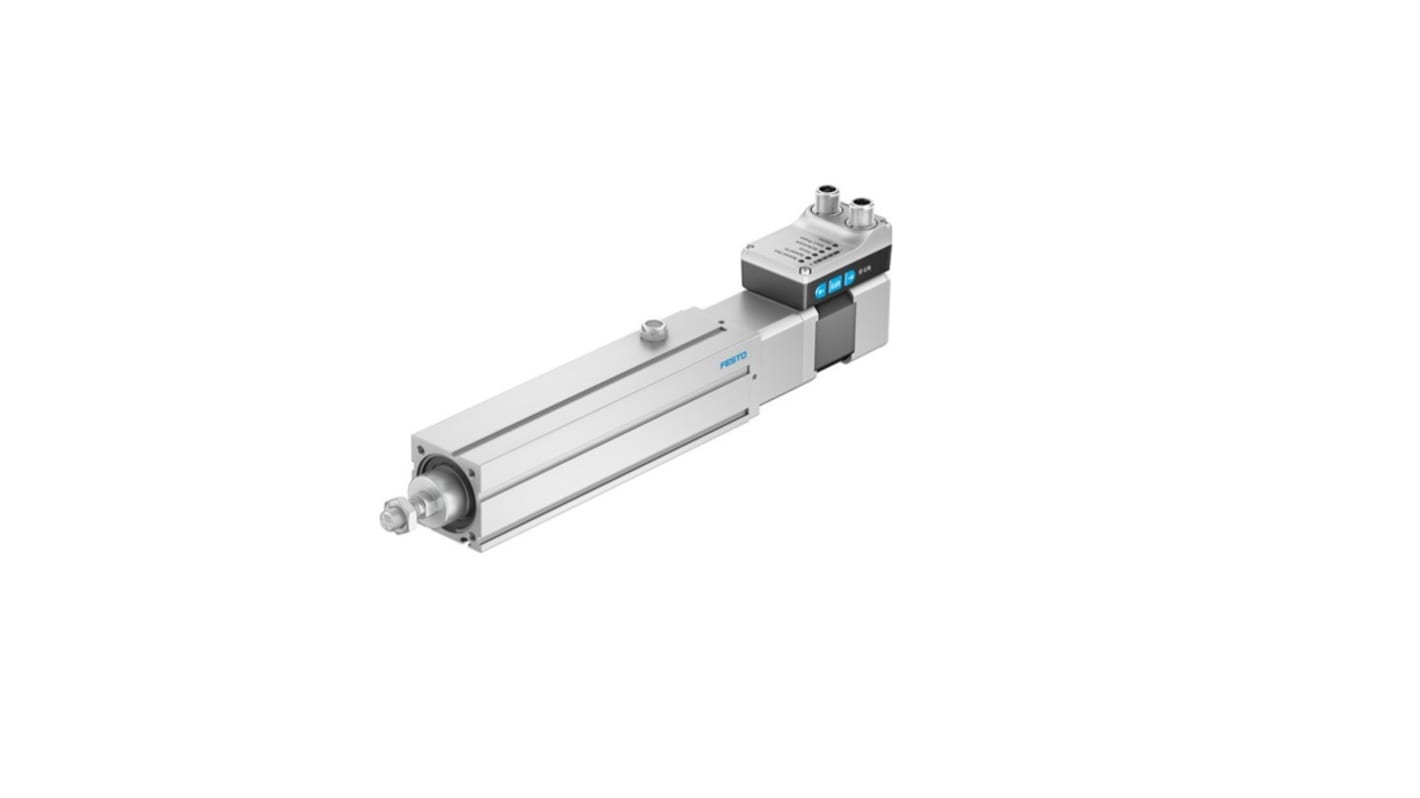

Festo EPCS-BS Series Micro Linear Actuator, 50mm Maximum Stroke Length, 450N Maximum Lifting Force - EPCS-BS-45-50-3P-A-ST-M-H1-PLK-AA, Numeric Part Number:8118275
This micro linear actuator is designed for precision and efficiency in compact spaces. With a maximum stroke length of 50mm, this electric cylinder unit is powered by a 24V DC stepper motor, ensuring high-performance linear motion applications. Suitable for various industrial needs, it supports maximum load capacities of 23 kg vertically and 60 kg horisontally, catering to demanding automation tasks.
Features & Benefits
• High load capabilities with lifting force up to 450 N
• Compact design integrating a ball screw drive for efficient operation
• 100% duty cycle for continuous performance
• IP40 rating ensures moderate protection against dust
• Integrated absolute single-turn encoder enhances positioning accuracy
• Temperature monitoring prevents overheating with a CMOS sensor
• Compact design integrating a ball screw drive for efficient operation
• 100% duty cycle for continuous performance
• IP40 rating ensures moderate protection against dust
• Integrated absolute single-turn encoder enhances positioning accuracy
• Temperature monitoring prevents overheating with a CMOS sensor
Applications
• Used with automation solutions in manufacturing processes
• Ideal for precise positioning in robotics
• Suitable for linear actuation in medical device development
• Employed in packaging machinery for consistent motion control
• Utilised in conveyor systems for reliable material handling
• Ideal for precise positioning in robotics
• Suitable for linear actuation in medical device development
• Employed in packaging machinery for consistent motion control
• Utilised in conveyor systems for reliable material handling
How does the actuator achieve precise positioning?
It features an integrated absolute single-turn encoder, which allows for highly accurate position feedback, ensuring reliable and repeatable movements in various applications.
What are the implications of the actuator's IP40 rating?
The IP40 rating indicates that the actuator provides protection against solid objects greater than 1mm, making it suitable for indoor environments where dust exposure is a concern but not for wet conditions.
What is the significance of the 100% duty cycle?
A 100% duty cycle means that the actuator can operate continuously without rest, providing consistent and reliable performance for demanding applications that require ongoing motion execution.
How does the temperature monitoring function contribute to the actuator's reliability?
The integrated CMOS temperature sensor ensures that the actuator operates within safe thermal limits, triggering a switch-off for excessive temperatures to prevent overheating, enhancing its longevity and reliability.
What are the maximum current requirements for operation?
The actuator’s maximum current consumption is 3000 mA, ensuring it operates efficiently under various load conditions while maintaining optimal performance levels.
