MPN

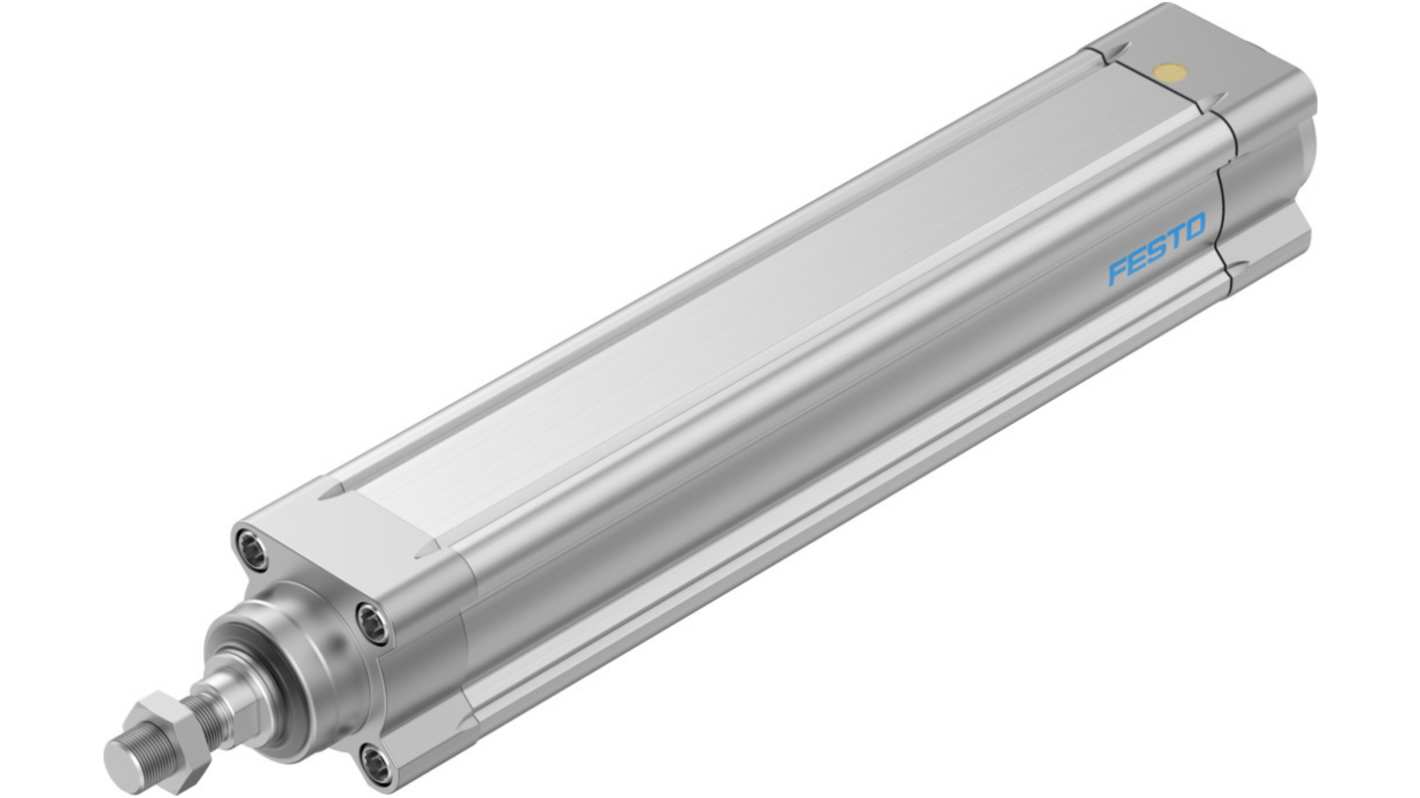

Festo Rod Linear Actuator, 400mm, 500kg, 330mm/s, 8022592

RS Stock No.:: 202-9686
Mfr. Part No.:: ESBF-BS-50-400-5P
Brand:: Festo

Festo Rod Linear Actuator, 400mm, 500kg, 330mm/s, 8022592

Subtotal (1 unit)*

£1,520.48

(exc. VAT)

£1,824.58

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 31 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,520.48

*price indicative

RS Stock No.:: 202-9686
Mfr. Part No.:: ESBF-BS-50-400-5P
Brand:: Festo

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Actuator Type	Rod Linear Actuator
	Maximum Stroke Length	400mm
	Maximum Load	500kg
	Series	ESBF
	Maximum Speed No Load	330mm/s
	Maximum Force Lifting	5000N
	Motor Technology	Servo Motor, Stepper Motor
	Duty Cycle	100%
	IP Rating	IP40
	Model Number	8022592

	Select all
	Brand Festo
	Actuator Type Rod Linear Actuator
	Maximum Stroke Length 400mm
	Maximum Load 500kg
	Series ESBF
	Maximum Speed No Load 330mm/s
	Maximum Force Lifting 5000N
	Motor Technology Servo Motor, Stepper Motor
	Duty Cycle 100%
	IP Rating IP40
	Model Number 8022592

Festo ESBF Series Electric Linear Actuator, 400mm Maximum Stroke Length, 500kg Maximum Load - ESBF-BS-50-400-5P, Numeric Part Number:8022592

This electric linear actuator is a high-performance rod linear actuator designed to deliver exceptional reliability and efficiency. With a maximum stroke length of 400mm and capable of handling loads up to 500kg, it is an indispensable component for various automated systems. The actuator features robust construction compliant with ISO 15552 standards, ensuring versatility in different mounting positions.

Features & Benefits

• High maximum speed of 330mm/s enhances operational efficiency
• Capable of lifting forces up to 5000N for demanding applications
• 100% duty cycle allows continuous operation without overheating
• Fitted with a ball screw for precise and smooth motion
• Offers excellent repeatability with accuracy of ±0.01mm
• IP40 rating ensures protection against solid objects, ideal for clean environments

Applications

• Used for automated material handling systems
• Applied in packaging machinery for precise movement
• Utilised in assembly lines for high load tasks
• Ideal for robotics requiring accurate linear motion control

How does the construction of this actuator contribute to its performance?

The actuator's design utilises a high-alloy stainless steel piston rod and smooth-anodised aluminium alloy cover, providing durability and resistance to corrosion. This construction supports consistent performance even in demanding conditions, allowing for operation in a range of environments.

What type of motors are compatible with this actuator, and how do they benefit its functionality?

This actuator can be equipped with either servo motors or stepper motors, offering flexibility based on specific application needs. Servo motors provide precise control over speed and position, while stepper motors enable reliable incremental movements, catering to different operational requirements.

What is the significance of the actuator’s maximum acceleration value?

The maximum acceleration of 5 m/s² allows for swift transitions between positions, improving overall cycle times and productivity in applications that require rapid movement and response. This feature is crucial for systems that depend on high-speed automation.

How is position detection achieved in this actuator?

Position detection is accomplished using a proximity switch, allowing for accurate feedback on the actuator's position. This feature is essential for ensuring precise operations in automated systems where exact positioning is critical for functionality.
