Festo Rod Linear Actuator, 400mm, 8022564
- RS Stock No.:
- 202-9856
- Distrelec Article No.:
- 301-70-352
- Mfr. Part No.:
- ESBF-BS-32-400-5P
- Brand:
- Festo
Subtotal (1 unit)*
£1,014.05
(exc. VAT)
£1,216.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,014.05 |
*price indicative
- RS Stock No.:
- 202-9856
- Distrelec Article No.:
- 301-70-352
- Mfr. Part No.:
- ESBF-BS-32-400-5P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Actuator Type | Rod Linear Actuator | |
Maximum Stroke Length | 400mm | |
Series | ESBF | |
Model Number | 8022564 | |
Select all | ||
---|---|---|
Brand Festo | ||
Actuator Type Rod Linear Actuator | ||
Maximum Stroke Length 400mm | ||
Series ESBF | ||
Model Number 8022564 | ||
- COO (Country of Origin):
- DE

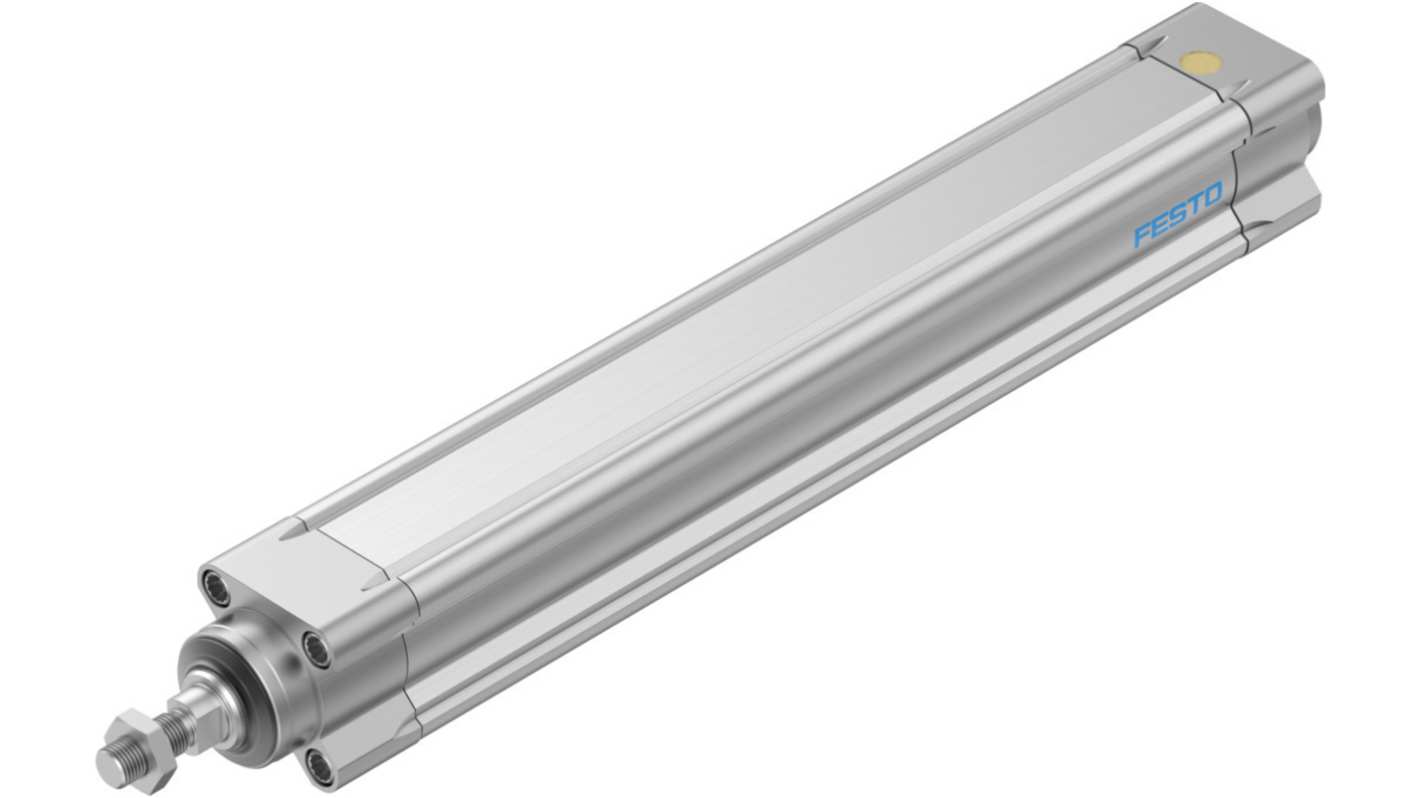

Festo ESBF Series Electric Linear Actuator, 400mm Maximum Stroke Length, 100kg Maximum Load - ESBF-BS-32-400-5P, Numeric Part Number:8022564
This electric linear actuator is a versatile rod linear actuator designed for precision and high-performance industrial applications. With a maximum stroke length of 400mm, it features a robust construction that enables it to handle loads of up to 100kg. The actuator is engineered to provide efficient linear motion using a ball screw spindle, integrating advanced servo and stepper motor technologies.
Features & Benefits
• Offers a maximum speed of 470mm/s without load
• Achieves precise positioning with ±0.01mm repetition accuracy
• Designed for seamless integration in various assembly positions
• Features robust corrosion resistance for improved durability
• Compatible with proximity sensors for enhanced position detection
• Maintains a high duty cycle of 100% for continuous operation
• Achieves precise positioning with ±0.01mm repetition accuracy
• Designed for seamless integration in various assembly positions
• Features robust corrosion resistance for improved durability
• Compatible with proximity sensors for enhanced position detection
• Maintains a high duty cycle of 100% for continuous operation
Applications
• Ideal for automation tasks requiring linear movement
• Suitable for electronic and mechanical assembly processes
• Utilised in machinery where space constraints demand efficient design
• Effective in with variable humidity and temperature levels
• Suitable for electronic and mechanical assembly processes
• Utilised in machinery where space constraints demand efficient design
• Effective in with variable humidity and temperature levels
What motor technology options are available for this actuator?
It incorporates both servo and stepper motor technologies, allowing flexibility in various applications and enabling precise control over movement.
How does this actuator ensure high accuracy in operation?
The actuator achieves ±0.01mm repetition accuracy through its ball screw spindle design, which minimises backlash and supports quality performance.
Can this actuator operate in different environmental conditions?
Yes, it can function in ambient temperatures ranging from 0 to 60°C and can tolerate a relative humidity of 0 to 95%, making it suitable for diverse industrial environments.
What is the significance of the IP40 protection class?
The IP40 rating indicates protection against solid objects greater than 1mm, ensuring operational reliability in typical industrial settings while offering some resistance to dust.
