Festo 50 mm, 3795N, 8048307 500mm/s

RS Stock No.:: 181-6720
Mfr. Part No.:: EGSC-BS-KF-32-50-8P
Brand:: Festo

Bulk discount available

Subtotal (1 unit)*

£511.44

(exc. VAT)

£613.73

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 06 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£511.44
5 +	£490.99

*price indicative

RS Stock No.:: 181-6720
Mfr. Part No.:: EGSC-BS-KF-32-50-8P
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Electrical Linear Actuator
	Stroke Length	50mm
	Maximum Load	3795N
	Maximum Speed	500mm/s
	Series	EGSC-BS
	Motor Technology	Stepper Motor, Servo Motor
	Maximum Force	991N
	Duty Cycle	100%
	IP Rating	IP40
	Spindle Type	Ball Screw
	Minimum Operating Temperature	0°C
	Overall Length Closed	32mm
	Maximum Operating Temperature	50°C
	Weight	481g
	Standards/Approvals	RoHS

	Select all
	Brand Festo
	Product Type Electrical Linear Actuator
	Stroke Length 50mm
	Maximum Load 3795N
	Maximum Speed 500mm/s
	Series EGSC-BS
	Motor Technology Stepper Motor, Servo Motor
	Maximum Force 991N
	Duty Cycle 100%
	IP Rating IP40
	Spindle Type Ball Screw
	Minimum Operating Temperature 0°C
	Overall Length Closed 32mm
	Maximum Operating Temperature 50°C
	Weight 481g
	Standards/Approvals RoHS

COO (Country of Origin):: CN

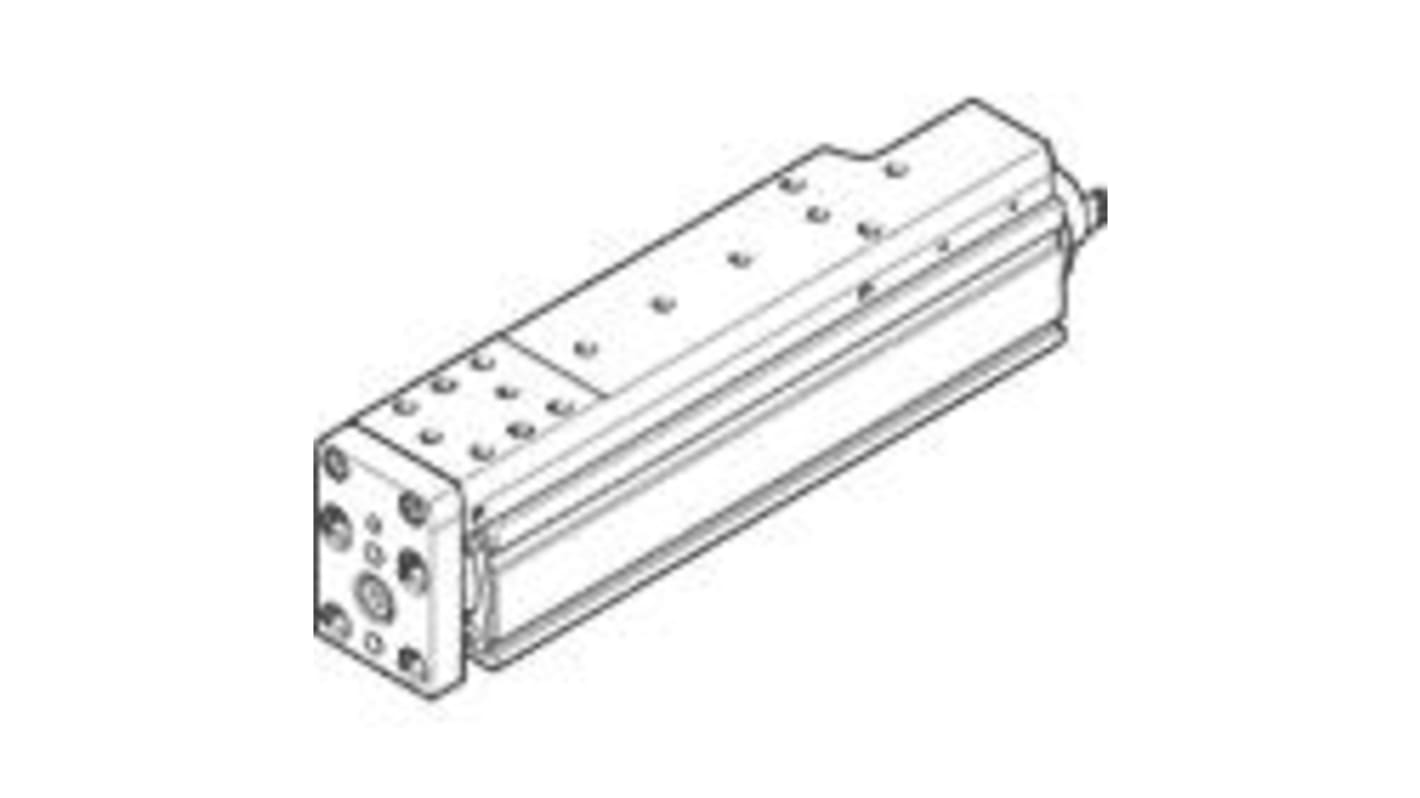

Festo EGSC-BS Series Electric Linear Actuator, IP40, 100% Duty Cycle - EGSC-BS-KF-32-50-8P, Numeric Part Number:8048307

This electric linear actuator is engineered for precise movement in automation and various industrial applications. Its compact design allows for high-speed operation and efficient linear motion. With a maximum stroke length of 50mm and the ability to achieve speeds of 500mm/s without load, this actuator supports the optimisation of mechanical processes in both electrical and mechanical environments.

Features & Benefits

• Compact design facilitates versatile installation in limited spaces

• High-speed operation enhances productivity and efficiency

• Accurate positioning with a repetition accuracy of ±0.015mm

• Robust ball screw drive ensures durability and dependable performance

• Capable of handling loads up to 6kg for diverse applications

• Suitable for cleanroom environments in accordance with ISO 14644-1

Applications

• Utilised in automated assembly lines for precise movements

• Employed in robotics for accurate component positioning

• Ideal for testing equipment that requires rapid linear motion

• Frequently used in machine tooling for effective processing tasks

• Integrated into laboratory settings for automated experiments

What is the maximum load capacity?

It supports a guide value of 6kg both horizontally and vertically.

How does this actuator perform in varying temperatures?

It operates effectively in the temperature range of 0°C to 50°C, accommodating different environments.

Can it be installed in any position?

Yes, the actuator is designed for flexible mounting in any orientation.

What type of sensors can be used?

It is compatible with proximity sensors for improved position sensing capabilities.
