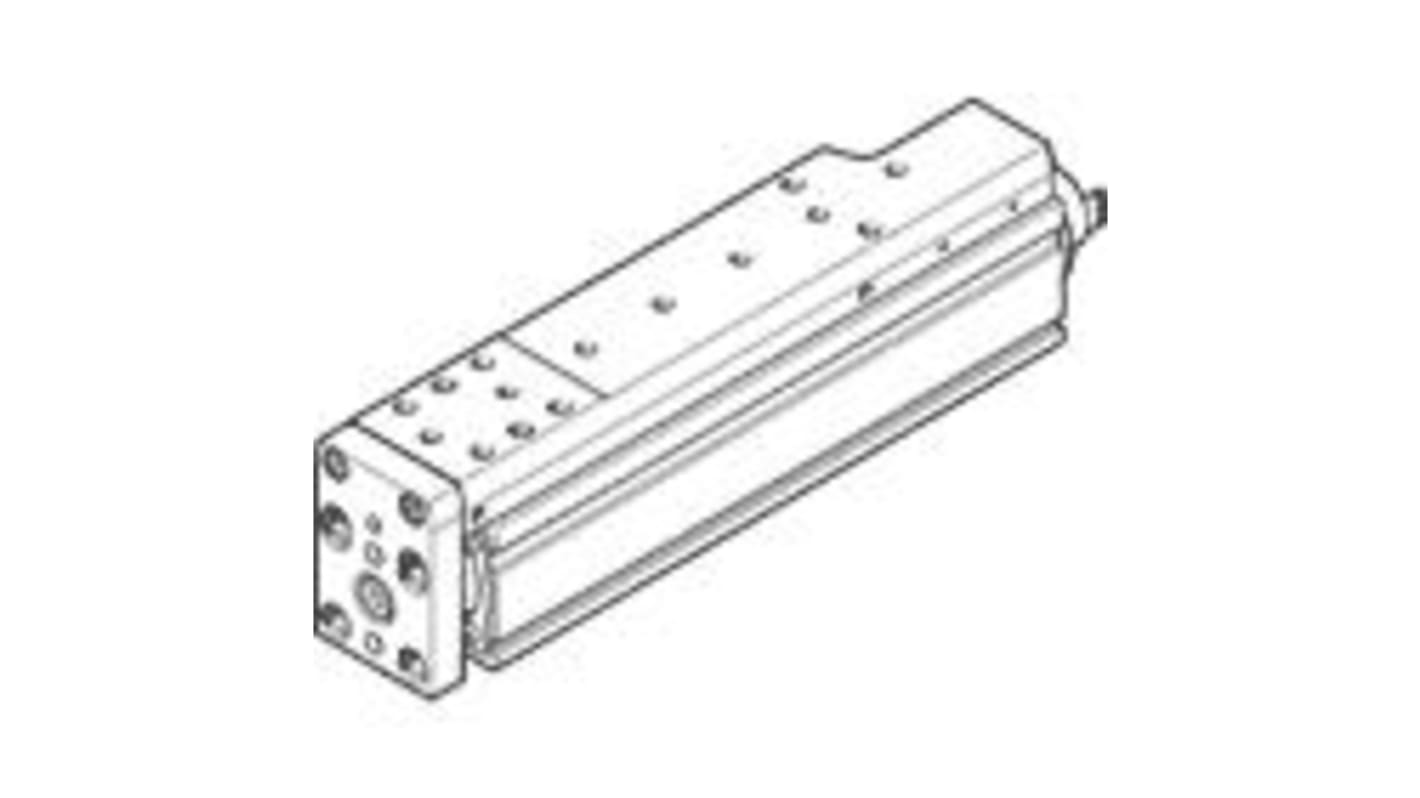

Festo Micro Linear Actuator, 100mm, 6kg, 500mm/s, 4356032

RS Stock No.:: 181-6712
Mfr. Part No.:: EGSC-BS-KF-32-100-8P
Brand:: Festo

Festo Micro Linear Actuator, 100mm, 6kg, 500mm/s, 4356032

Bulk discount available

Subtotal (1 unit)*

£527.05

(exc. VAT)

£632.46

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 17 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£527.05
5 +	£505.97

*price indicative

RS Stock No.:: 181-6712
Mfr. Part No.:: EGSC-BS-KF-32-100-8P
Brand:: Festo

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Actuator Type	Micro Linear Actuator
	Maximum Stroke Length	100mm
	Maximum Load	6kg
	Series	EGSC-BS
	Maximum Speed No Load	500mm/s
	Maximum Force Lifting	991N
	Motor Technology	Servo Motor, Stepper Motor
	Duty Cycle	100%
	IP Rating	IP40
	Model Number	4356032

	Select all
	Brand Festo
	Actuator Type Micro Linear Actuator
	Maximum Stroke Length 100mm
	Maximum Load 6kg
	Series EGSC-BS
	Maximum Speed No Load 500mm/s
	Maximum Force Lifting 991N
	Motor Technology Servo Motor, Stepper Motor
	Duty Cycle 100%
	IP Rating IP40
	Model Number 4356032

Festo EGSC-BS Series Electric Linear Actuator, 100mm Maximum Stroke Length, 6kg Maximum Load - EGSC-BS-KF-32-100-8P, Numeric Part Number:4356032

This electric linear actuator is a compact micro linear actuator designed for precise automation tasks. With a stroke length of 100mm and the capability to handle loads of up to 6kg, it is suitable for various applications in the industrial automation sector. Engineered with both servo and stepper motor technology, this actuator delivers exceptional performance with a maximum speed of 500mm/s.

Features & Benefits

• Achieves precise positioning with a repetition accuracy of ±0.015mm
• Incorporates a ball screw drive for efficient movement
• Offers high-speed operation with maximum acceleration of 15 m/s²
• Built for continuous use with a 100% duty cycle rating
• Features corrosion-resistant materials for longevity in diverse environments
• Integrated position detection via proximity switch enhances reliability

Applications

• Used for precise movements in robotics and assembly lines
• Ideal for requiring compact installation in tight spaces
• Utilised in battery production systems, especially lithium-ion batteries
• Employed in cleanroom environments, maintaining Class 9 standards

What is the maximum rotational speed for this actuator?

The actuator can achieve a maximum rotational speed of 3750 rpm, providing fast and efficient operation.

How does the actuator manage impact energy in end positions?

It is designed with an impact energy specification of 1.0E-5 J at maximum homing speed of 0.01 m/s, ensuring gentle stops that protect the system.

What are the advantages of the ball screw drive in this actuator?

The ball screw drive enhances movement efficiency and accuracy, ensuring smooth operation with minimal backlash, which is critical for precision tasks.

Can this actuator operate in varying ambient temperatures?

Yes, it functions effectively within a temperature range of 0 °C to 50 °C, making it versatile for different environmental conditions.

What maintenance does this actuator require?

It features lifetime lubrication, reducing the need for regular maintenance while ensuring consistent operation.
