Festo 25 mm, 3795N, 8048306 500mm/s

View all Electric Linear Actuators
Bulk discount available

Subtotal (1 unit)*

£506.23

(exc. VAT)

£607.48

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£506.23
5 +£485.98

*price indicative

RS Stock No.:
181-6719
Mfr. Part No.:
EGSC-BS-KF-32-25-8P
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Electrical Linear Actuator

Maximum Load

3795N

Stroke Length

25mm

Maximum Speed

500mm/s

Series

EGSC-BS

Motor Technology

Stepper Motor, Servo Motor

Maximum Force

991N

Duty Cycle

100%

IP Rating

IP40

Minimum Operating Temperature

0°C

Overall Length Closed

32mm

Spindle Type

Ball Screw

Maximum Operating Temperature

50°C

Weight

406g

Standards/Approvals

RoHS

COO (Country of Origin):
CN

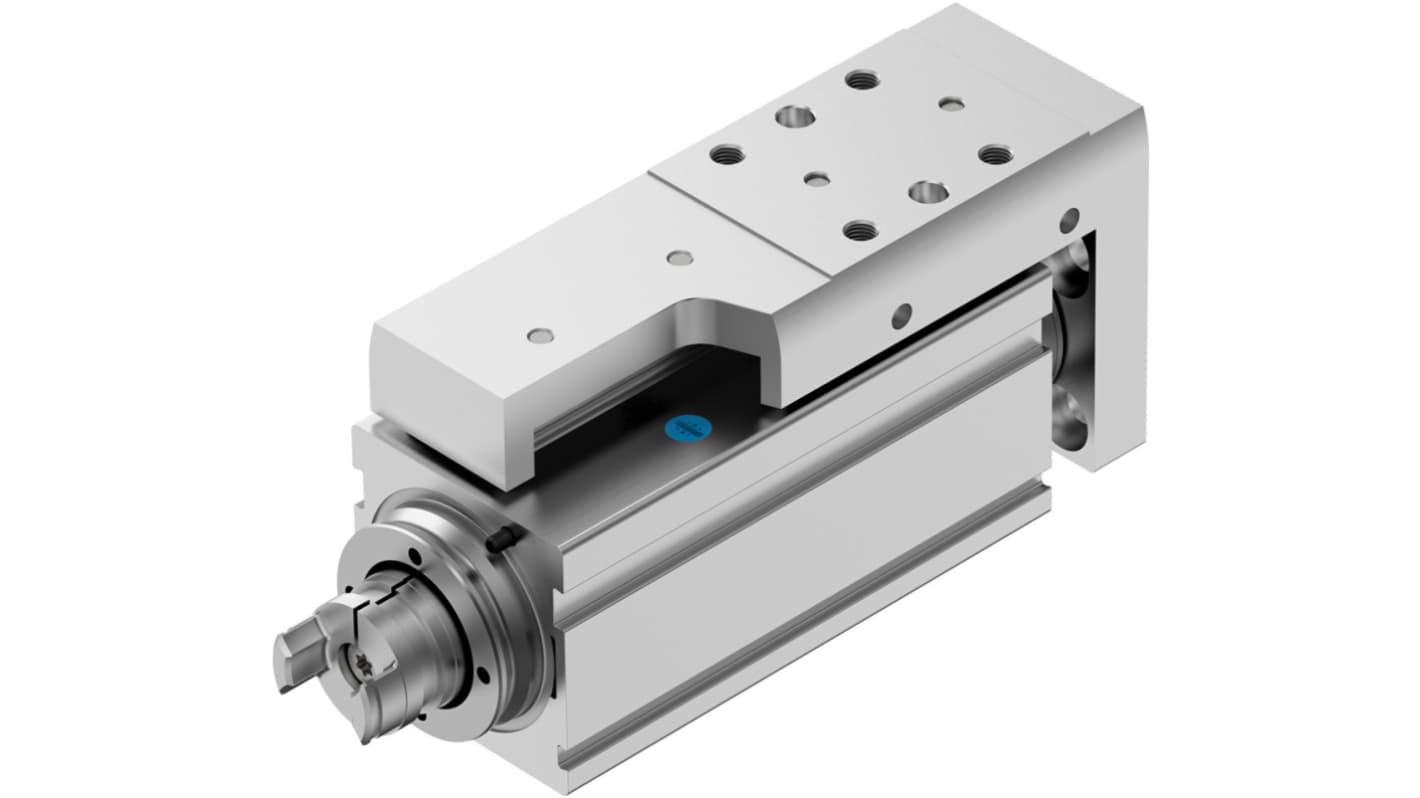

Festo EGSC-BS Series Electric Linear Actuator, 25mm Maximum Stroke Length, 991N Maximum Lifting Force - EGSC-BS-KF-32-25-8P, Numeric Part Number:8048306


This electric linear actuator is a compact micro linear actuator designed for precise linear motion control. With a maximum stroke length of 25mm and a closed length of 62mm, it provides exceptional performance in a small form factor. Featuring both servo motor and stepper motor capabilities, this actuator is suitable for various industrial automation applications.

Features & Benefits


• Provides a maximum load capacity of 3795N for robust applications

• Achieves speeds of up to 500 mm/s for efficient operation

• Offers linear motion control with high precision and ±0.015mm repetition accuracy

• Incorporates a ball screw drive for smooth operation

• Features lifetime lubrication for minimal maintenance needs

• Rated IP40 to protect against dust and solid objects

Applications


• Used in robotics for precise positioning tasks

• Suitable for automation in assembly lines requiring high load capacity

• Ideal for needing compact design in confined spaces

• Compatible with proximity sensors for accurate position detection

• Utilised in machinery requiring continuous duty cycle performance

What types of motors can be used with this actuator?


Both servo and stepper motors are integrated into the design, allowing versatility in control for different applications.

How does the actuator ensure accuracy during operation?


The ±0.015mm repetition accuracy ensures precision in linear movements, aided by the advanced ball screw drive mechanism. This contributes significantly to reliable performance in repetitive tasks.

What maintenance requirements does this actuator have?


The actuator benefits from lifetime lubrication, meaning users can expect minimal maintenance throughout its operational life, reducing downtime and service costs.

What ambient conditions can this actuator operate in?


It can function effectively within an ambient temperature range of 0 to 50°C, making it suitable for various industrial environments.
