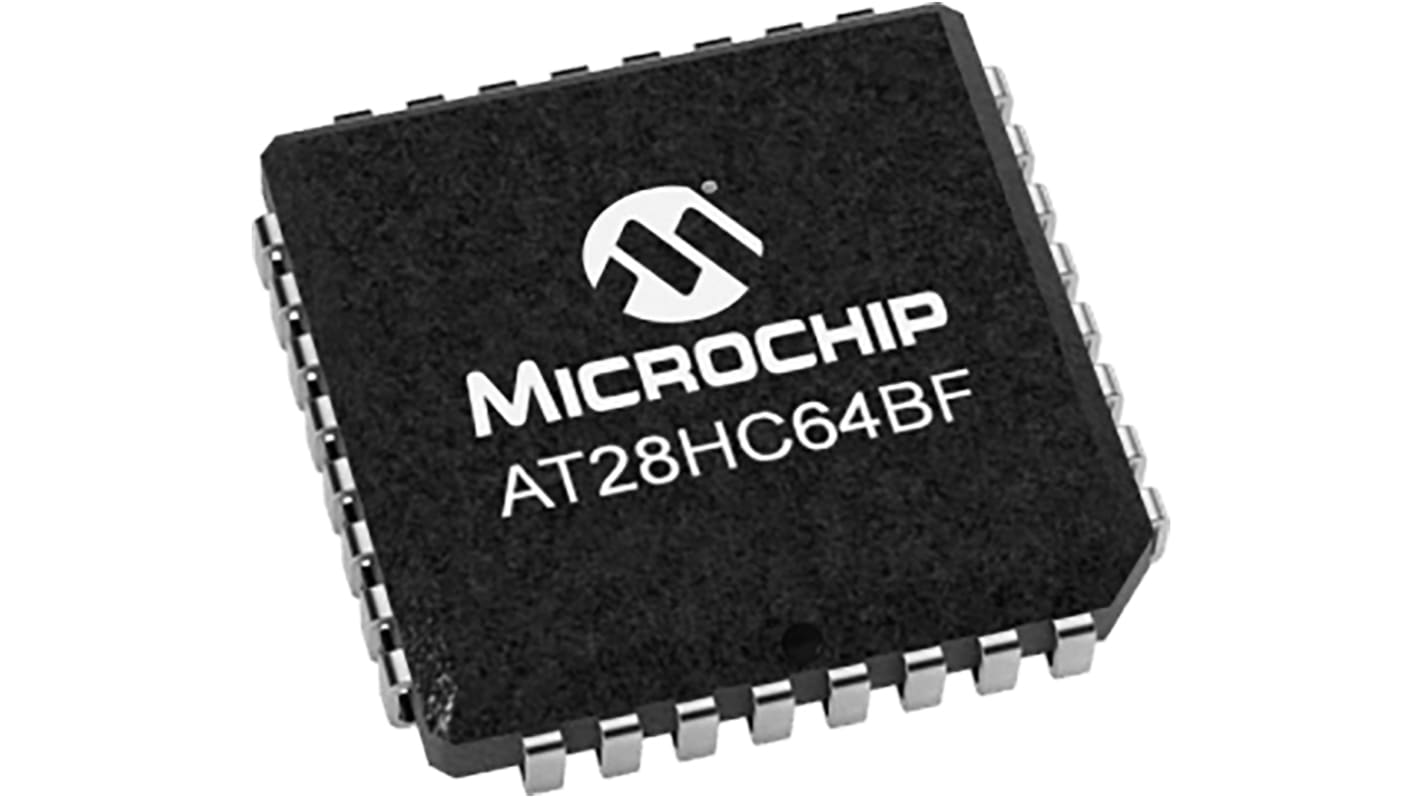

Microchip AT28HC64BF-12JU, 64kbit Parallel EEPROM Memory, 120ns 32-Pin PLCC Parallel
- RS Stock No.:
- 177-1655
- Mfr. Part No.:
- AT28HC64BF-12JU
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 2 units)*
£9.02
(exc. VAT)
£10.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 82 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £4.51 | £9.02 |
10 - 22 | £4.385 | £8.77 |
24 - 98 | £4.28 | £8.56 |
100 + | £4.18 | £8.36 |
*price indicative
- RS Stock No.:
- 177-1655
- Mfr. Part No.:
- AT28HC64BF-12JU
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Memory Size | 64kbit | |
Interface Type | Parallel | |
Package Type | PLCC | |
Mounting Type | Surface Mount | |
Pin Count | 32 | |
Organisation | 8K x 8 bit | |
Minimum Operating Supply Voltage | 4.5 V | |
Maximum Operating Supply Voltage | 5.5 V | |
Programming Voltage | 4.5 → 5.5V | |
Number of Bits per Word | 8bit | |
Dimensions | 11.5 x 14.04 x 3.17mm | |
Maximum Operating Temperature | +85 °C | |
Maximum Random Access Time | 120ns | |
Number of Words | 8K | |
Data Retention | 10yr | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Microchip | ||
Memory Size 64kbit | ||
Interface Type Parallel | ||
Package Type PLCC | ||
Mounting Type Surface Mount | ||
Pin Count 32 | ||
Organisation 8K x 8 bit | ||
Minimum Operating Supply Voltage 4.5 V | ||
Maximum Operating Supply Voltage 5.5 V | ||
Programming Voltage 4.5 → 5.5V | ||
Number of Bits per Word 8bit | ||
Dimensions 11.5 x 14.04 x 3.17mm | ||
Maximum Operating Temperature +85 °C | ||
Maximum Random Access Time 120ns | ||
Number of Words 8K | ||
Data Retention 10yr | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- TH
The Microchip AT28HC64BF is a high-performance 64Kbit Parallel EEPROM offering access times to 55ns with power dissipation of 220mW. Deselected, CMOS standby current is less than 100μA. Accessed like static RAM for the read or write cycle without external components, it contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. Optional Software Data Protection mechanism guards against inadvertent writes, and an extra 64 bytes of EEPROM enables device identification or tracking.
Additional Features:
8 Kbits x 8 (64 Kbit)
5 V ±10% Supply
Parallel Interface
70ns access time Self-Timed Erase and Write Cycles
Page Write and Byte Write
Data Polling for end of write detection
2 ms Maximum Option
Low Power Consumption:
Read / Write current 40 mA (Max)
Standby current TTL 2 mA (Max), CMOS 100 μA (Max)
Write-Protection
Hardware Protection
Software Data Protect
More than 100,000 erase/write cycles
Data retention > 10 years
8 Kbits x 8 (64 Kbit)
5 V ±10% Supply
Parallel Interface
70ns access time Self-Timed Erase and Write Cycles
Page Write and Byte Write
Data Polling for end of write detection
2 ms Maximum Option
Low Power Consumption:
Read / Write current 40 mA (Max)
Standby current TTL 2 mA (Max), CMOS 100 μA (Max)
Write-Protection
Hardware Protection
Software Data Protect
More than 100,000 erase/write cycles
Data retention > 10 years
